Datasheet CAT5112 (ON Semiconductor) - 7
| Manufacturer | ON Semiconductor |
| Description | 32‐tap Digital Potentiometer (POT) with Buffered Wiper |
| Pages / Page | 11 / 7 — CAT5112. PACKAGE DIMENSIONS. PDIP−8, 300 mils. SYMBOL. MIN. NOM. MAX. TOP … |
| File Format / Size | PDF / 230 Kb |
| Document Language | English |

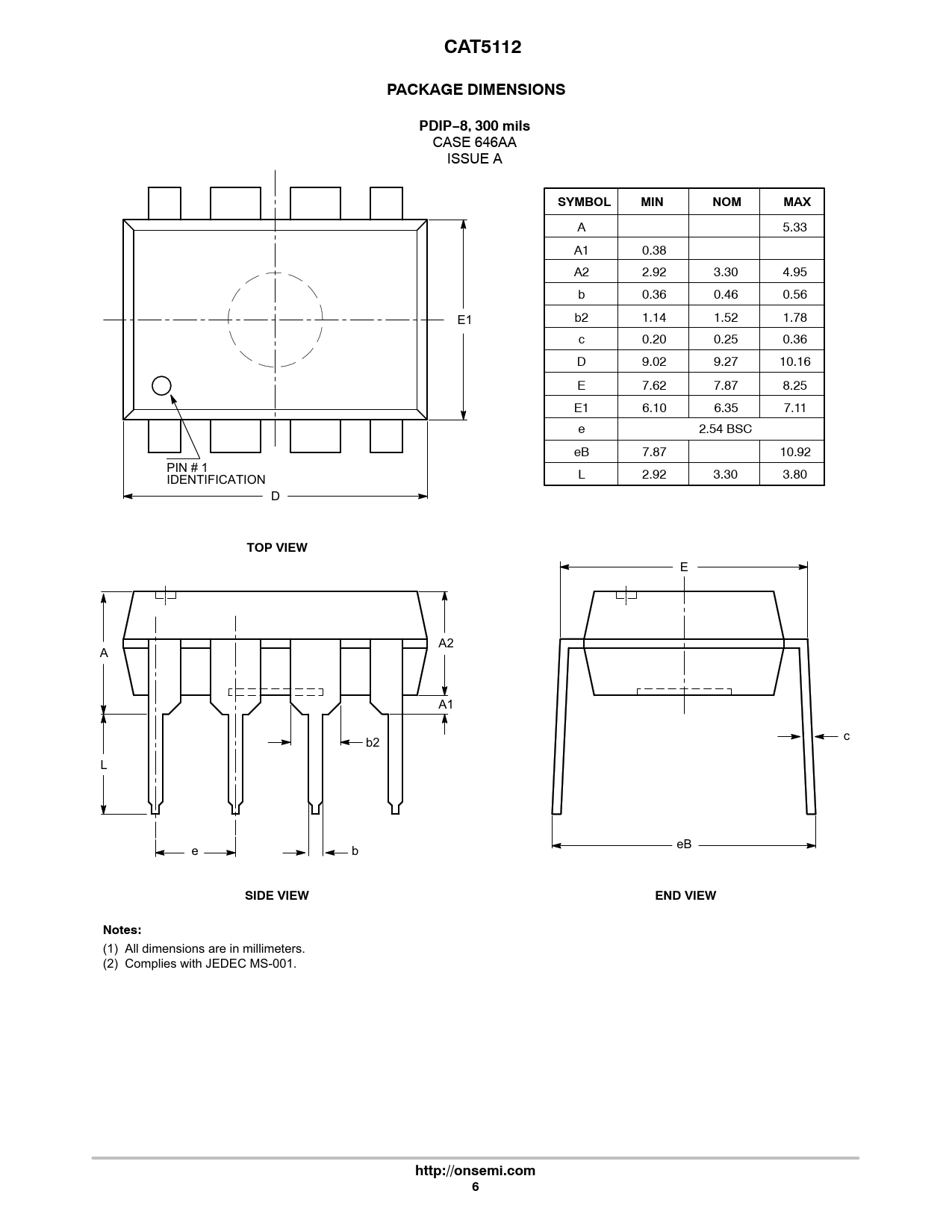

CAT5112. PACKAGE DIMENSIONS. PDIP−8, 300 mils. SYMBOL. MIN. NOM. MAX. TOP VIEW. SIDE VIEW. END VIEW. Notes:. http://onsemi.com
Model Line for this Datasheet
Text Version of Document
CAT5112 PACKAGE DIMENSIONS PDIP−8, 300 mils
CASE 646AA ISSUE A
SYMBOL MIN NOM MAX
A 5.33 A1 0.38 A2 2.92 3.30 4.95 b 0.36 0.46 0.56 E1 b2 1.14 1.52 1.78 c 0.20 0.25 0.36 D 9.02 9.27 10.16 E 7.62 7.87 8.25 E1 6.10 6.35 7.11 e 2.54 BSC eB 7.87 10.92 PIN # 1 L 2.92 3.30 3.80 IDENTIFICATION D
TOP VIEW
E A2 A A1 c b2 L eB e b
SIDE VIEW END VIEW Notes:
(1) All dimensions are in millimeters. (2) Complies with JEDEC MS-001.
http://onsemi.com 6
