Datasheet BM2P139TF, BM2P135TF, BM2P137TKF, BM2P129TF (Rohm) - 3
| Manufacturer | Rohm |
| Description | PWM type DC/DC converter IC Integrated Switching MOSFET for non-Isolated type |
| Pages / Page | 24 / 3 — BM2P139TF/BM2P135TF/BM2P137TKF/BM2P129TF. Absolute Maximum Ratings … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

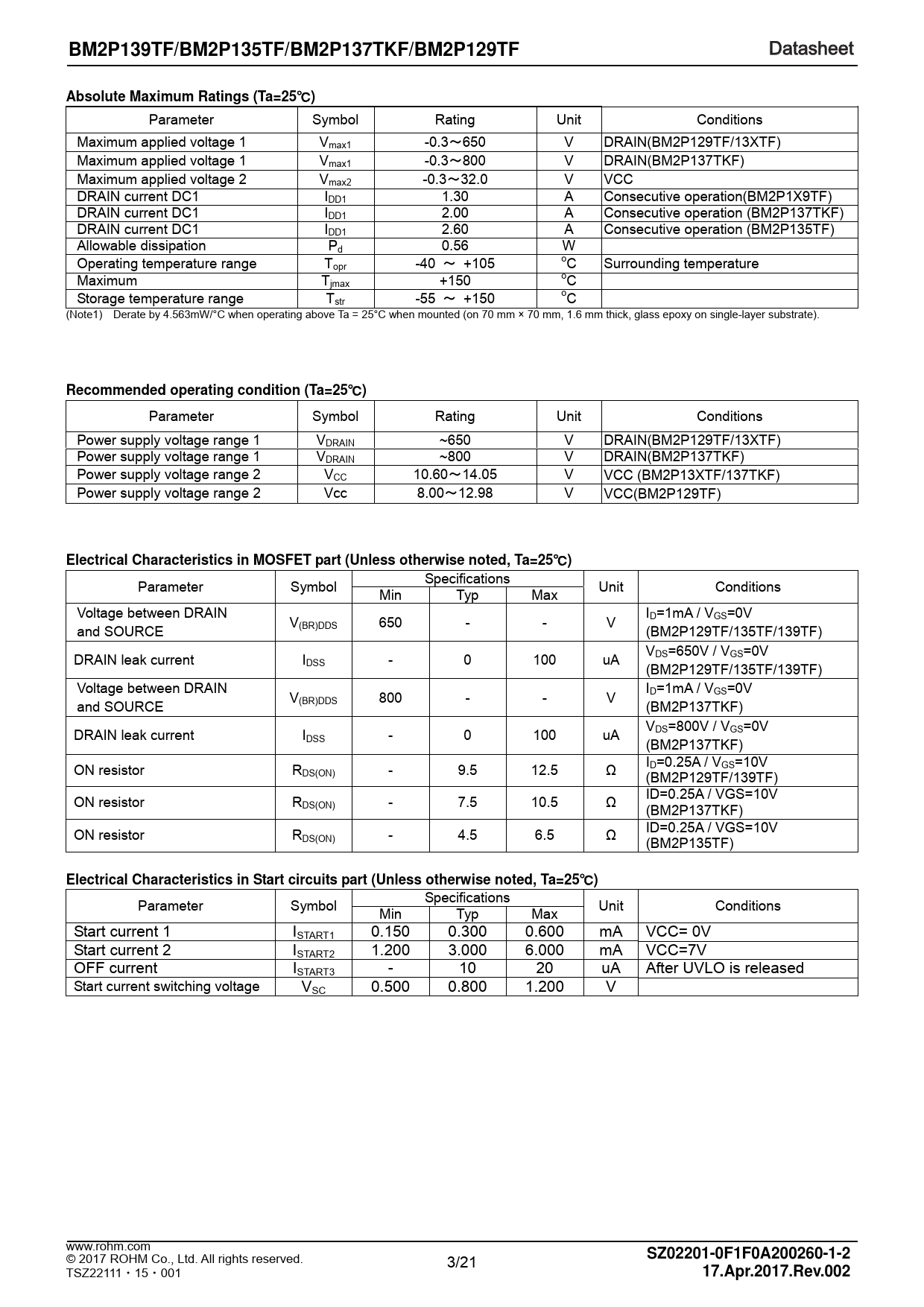

BM2P139TF/BM2P135TF/BM2P137TKF/BM2P129TF. Absolute Maximum Ratings (Ta=25. Recommended operating condition (Ta=25
Model Line for this Datasheet
Text Version of Document
BM2P139TF/BM2P135TF/BM2P137TKF/BM2P129TF
Datasheet Datasheet
Absolute Maximum Ratings (Ta=25
℃
)
Parameter Symbol Rating Unit Conditions Maximum applied voltage 1 Vmax1 -0.3～650 V DRAIN(BM2P129TF/13XTF) Maximum applied voltage 1 Vmax1 -0.3～800 V DRAIN(BM2P137TKF) Maximum applied voltage 2 Vmax2 -0.3～32.0 V VCC DRAIN current DC1 IDD1 1.30 A Consecutive operation(BM2P1X9TF) DRAIN current DC1 IDD1 2.00 A Consecutive operation (BM2P137TKF) DRAIN current DC1 IDD1 2.60 A Consecutive operation (BM2P135TF) Allowable dissipation Pd 0.56 W Operating temperature range Topr -40 ～ +105 oC Surrounding temperature Maximum Tjmax +150 oC Storage temperature range Tstr -55 ～ +150 oC (Note1) Derate by 4.563mW/°C when operating above Ta = 25°C when mounted (on 70 mm × 70 mm, 1.6 mm thick, glass epoxy on single-layer substrate).
Recommended operating condition (Ta=25
℃
)
Parameter Symbol Rating Unit Conditions Power supply voltage range 1 VDRAIN ~650 V DRAIN(BM2P129TF/13XTF) Power supply voltage range 1 VDRAIN ~800 V DRAIN(BM2P137TKF) Power supply voltage range 2 VCC 10.60～14.05 V VCC (BM2P13XTF/137TKF) Power supply voltage range 2 Vcc 8.00～12.98 V VCC(BM2P129TF)
Electrical Characteristics in MOSFET part (Unless otherwise noted, Ta=25
℃
)
Specifications Parameter Symbol Unit Conditions Min Typ Max Voltage between DRAIN I V D=1mA / VGS=0V and SOURCE (BR)DDS 650 - - V (BM2P129TF/135TF/139TF) V DRAIN leak current I DS=650V / VGS=0V DSS - 0 100 uA (BM2P129TF/135TF/139TF) Voltage between DRAIN I V D=1mA / VGS=0V and SOURCE (BR)DDS 800 - - V (BM2P137TKF) V DRAIN leak current I DS=800V / VGS=0V DSS - 0 100 uA (BM2P137TKF) I ON resistor R D=0.25A / VGS=10V DS(ON) - 9.5 12.5 Ω (BM2P129TF/139TF) ID=0.25A / VGS=10V ON resistor RDS(ON) - 7.5 10.5 Ω (BM2P137TKF) ID=0.25A / VGS=10V ON resistor RDS(ON) - 4.5 6.5 Ω (BM2P135TF)
Electrical Characteristics in Start circuits part (Unless otherwise noted, Ta=25
℃
)
Specifications Parameter Symbol Unit Conditions Min Typ Max Start current 1 ISTART1 0.150 0.300 0.600 mA VCC= 0V Start current 2 ISTART2 1.200 3.000 6.000 mA VCC=7V OFF current ISTART3 - 10 20 uA After UVLO is released Start current switching voltage VSC 0.500 0.800 1.200 V www.rohm.com © 2017 ROHM Co., Ltd. All rights reserved. 3/21
SZ02201-0F1F0A200260-1-2
TSZ22111・15・001
17.Apr.2017.Rev.002
