Datasheet BZX55 (Vishay) - 5
| Manufacturer | Vishay |
| Description | Small Signal Zener Diodes |
| Pages / Page | 7 / 5 — BZX55-Series |
| File Format / Size | PDF / 104 Kb |
| Document Language | English |
BZX55-Series
Model Line for this Datasheet
- BZX55B10-TAP BZX55B10-TR BZX55B11-TAP BZX55B11-TR BZX55B12-TAP BZX55B12-TR BZX55B13-TAP BZX55B13-TR BZX55B15-TAP BZX55B15-TR BZX55B16-TAP BZX55B16-TR BZX55B18-TAP BZX55B18-TR BZX55B20-TAP BZX55B20-TR BZX55B22-TAP BZX55B22-TR BZX55B24-TAP BZX55B24-TR BZX55B27-TAP BZX55B27-TR BZX55B2V4-TAP BZX55B2V4-TR BZX55B2V7-TAP BZX55B2V7-TR BZX55B30-TAP BZX55B30-TR BZX55B33-TAP BZX55B33-TR BZX55B36-TAP BZX55B36-TR BZX55B39-TAP BZX55B39-TR BZX55B3V0-TAP BZX55B3V0-TR BZX55B3V3-TAP BZX55B3V3-TR BZX55B3V6-TAP BZX55B3V6-TR BZX55B3V9-TAP BZX55B3V9-TR BZX55B43-TAP BZX55B43-TR BZX55B47-TAP BZX55B47-TR BZX55B4V3-TAP BZX55B4V3-TR BZX55B4V7-TAP BZX55B4V7-TR BZX55B51-TAP BZX55B51-TR BZX55B56-TAP BZX55B56-TR BZX55B5V1-TAP BZX55B5V1-TR BZX55B5V6-TAP BZX55B5V6-TR BZX55B62-TAP BZX55B62-TR BZX55B68-TAP BZX55B68-TR BZX55B6V2-TAP BZX55B6V2-TR BZX55B6V8-TAP BZX55B6V8-TR BZX55B75-TAP BZX55B75-TR BZX55B7V5-TAP BZX55B7V5-TR BZX55B8V2-TAP BZX55B8V2-TR BZX55B9V1-TAP BZX55B9V1-TR BZX55C10-TAP BZX55C10-TR BZX55C11-TAP BZX55C11-TR BZX55C12-TAP BZX55C12-TR BZX55C13-TAP BZX55C13-TR BZX55C15-TAP BZX55C15-TR BZX55C16-TAP BZX55C16-TR BZX55C18-TAP BZX55C18-TR BZX55C20-TAP BZX55C20-TR BZX55C22-TAP BZX55C22-TR BZX55C24-TAP BZX55C24-TR BZX55C27-TAP BZX55C27-TR BZX55C2V4-TAP BZX55C2V4-TR BZX55C2V7-TAP BZX55C2V7-TR BZX55C30-TAP BZX55C30-TR BZX55C33-TAP BZX55C33-TR BZX55C36-TAP BZX55C36-TR BZX55C39-TAP BZX55C39-TR BZX55C3V0-TAP BZX55C3V0-TR BZX55C3V3-TAP BZX55C3V3-TR BZX55C3V6-TAP BZX55C3V6-TR BZX55C3V9-TAP BZX55C3V9-TR BZX55C43-TAP BZX55C43-TR BZX55C47-TAP BZX55C47-TR BZX55C4V3-TAP BZX55C4V3-TR BZX55C4V7-TAP BZX55C4V7-TR BZX55C51-TAP BZX55C51-TR BZX55C56-TAP BZX55C56-TR BZX55C5V1-TAP BZX55C5V1-TR BZX55C5V6-TAP BZX55C5V6-TR BZX55C62-TAP BZX55C62-TR BZX55C68-TAP BZX55C68-TR BZX55C6V2-TAP BZX55C6V2-TR BZX55C6V8-TAP BZX55C6V8-TR BZX55C75-TAP BZX55C75-TR BZX55C7V5-TAP BZX55C7V5-TR BZX55C8V2-TAP BZX55C8V2-TR BZX55C9V1-TAP BZX55C9V1-TR
Text Version of Document
BZX55-Series

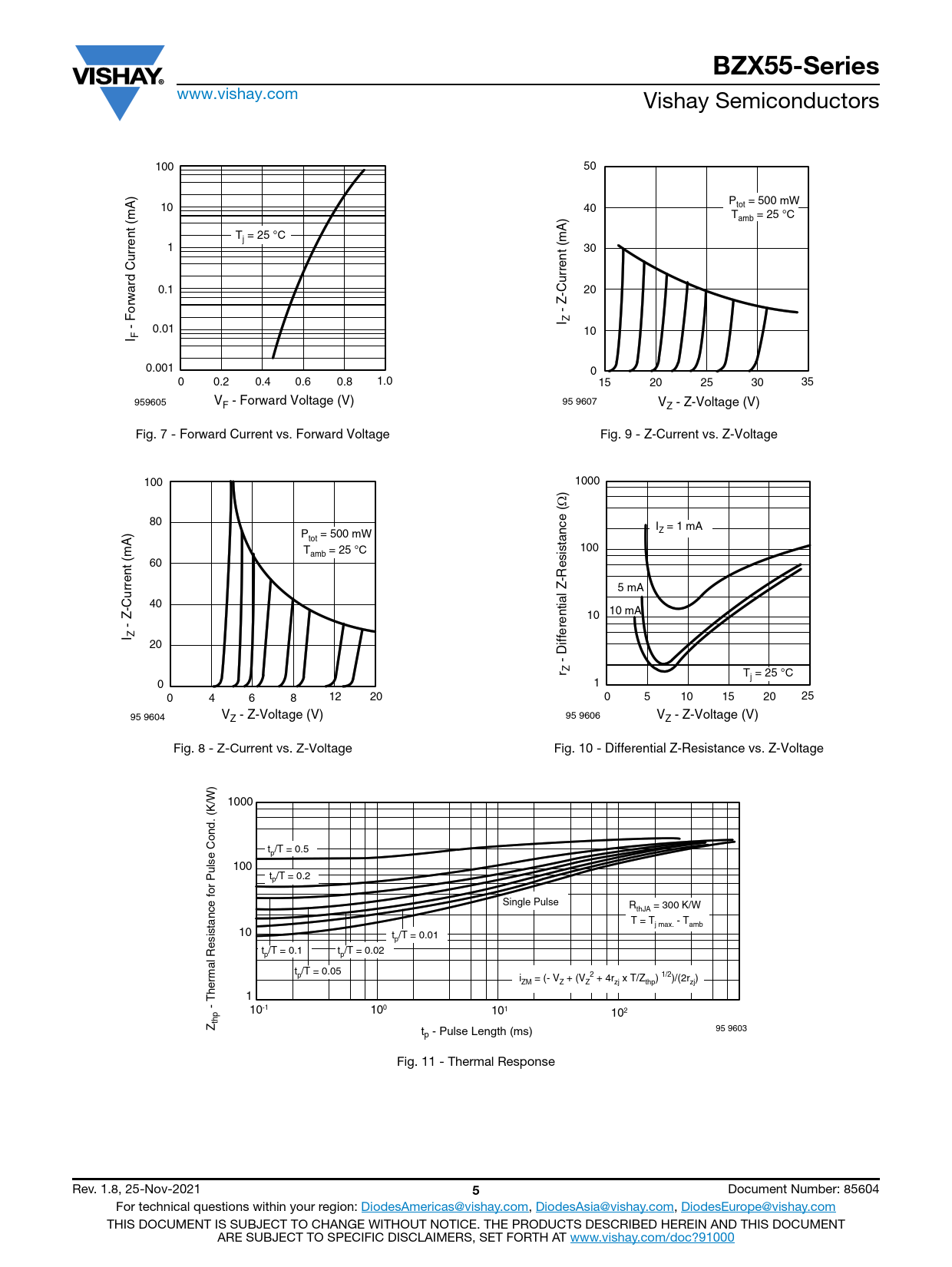

www.vishay.com Vishay Semiconductors 100 50 P = 500 mW 10 40 tot T = 25 °C amb T = 25 °C j 1 rrent (mA) 30 u rrent (mA) u ard C 0.1 20 w - Z-C I Z - For 0.01 10 I F 0.001 0 0 0.2 0.4 0.6 0.8 1.0 15 20 25 30 35 959605 VF - Forward Voltage (V) 95 9607 VZ - Z-Voltage (V) Fig. 7 - Forward Current vs. Forward Voltage Fig. 9 - Z-Current vs. Z-Voltage 100 1000 ) Ω 80 I = 1 mA P = 500 mW Z tot T = 25 °C 100 amb 60 rrent (mA) 5 mA u 40 10 10 mA - Z-C I Z 20 - Differential Z-Resistance ( r Z T = 25 °C j 0 1 0 4 6 8 12 20 0 5 10 15 20 25 95 9604 VZ - Z-Voltage (V) 95 9606 VZ - Z-Voltage (V) Fig. 8 - Z-Current vs. Z-Voltage Fig. 10 - Differential Z-Resistance vs. Z-Voltage ) W 1000 t /T = 0.5 p lse Cond. (K/ 100 u t /T = 0.2 p Single Pulse R = 300 K/W thJA T = T - T j max. amb 10 t /T = 0.01 p t /T = 0.1 t /T = 0.02 p p t /T = 0.05 p i = (- V + (V 2 + 4r x T/Z ) 1/2)/(2r ) ZM Z Z zj thp zj 1 - Thermal Resistance for P 10-1 100 101 102 thpZ tp - Pulse Length (ms) 95 9603 Fig. 11 - Thermal Response Rev. 1.8, 25-Nov-2021
5
Document Number: 85604 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
