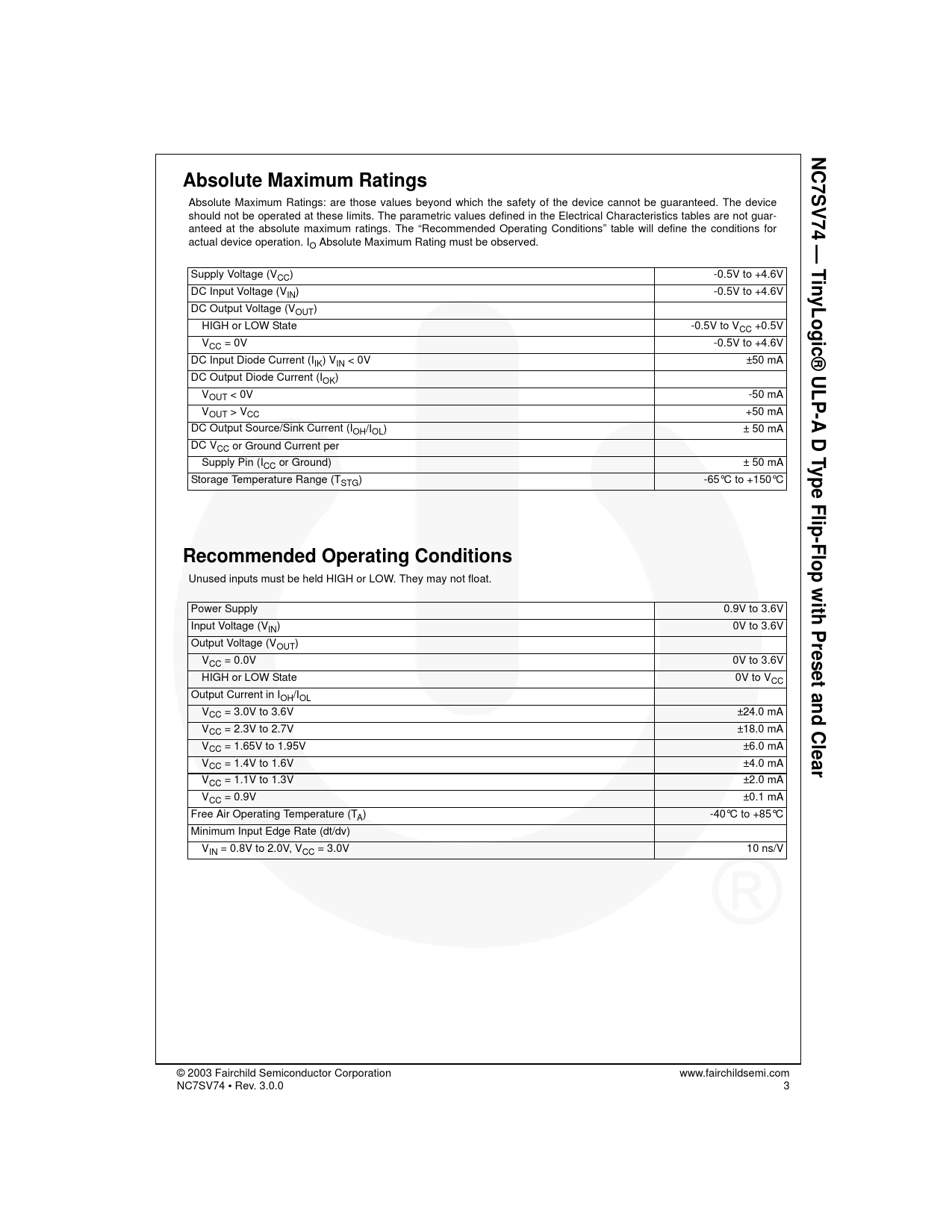

Absolute Maximum Ratings: are those values beyond which the safety of the device cannot be guaranteed. The device
Model Line for this Datasheet
Text Version of Document
Absolute Maximum Ratings: are those values beyond which the safety of the device cannot be guaranteed. The device
should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum ratings. The “Recommended Operating Conditions” table will define the conditions for
actual device operation. IO Absolute Maximum Rating must be observed.
Supply Voltage (VCC) -0.5V to +4.6V DC Input Voltage (VIN) -0.5V to +4.6V DC Output Voltage (VOUT)
HIGH or LOW State
VCC = 0V
DC Input Diode Current (IIK) VIN < 0V -0.5V to VCC +0.5V
-0.5V to +4.6V
±50 mA DC Output Diode Current (IOK)
VOUT < 0V -50 mA VOUT > VCC +50 mA DC Output Source/Sink Current (IOH/IOL) ± 50 mA DC VCC or Ground Current per
Supply Pin (ICC or Ground)
Storage Temperature Range (TSTG) ± 50 mA
-65°C to +150°C Recommended Operating Conditions
Unused inputs must be held HIGH or LOW. They may not float.
Power Supply
Input Voltage (VIN) 0.9V to 3.6V
0V to 3.6V Output Voltage (VOUT)
VCC = 0.0V 0V to 3.6V HIGH or LOW State 0V to VCC Output Current in IOH/IOL
VCC = 3.0V to 3.6V ±24.0 mA VCC = 2.3V to 2.7V ±18.0 mA VCC = 1.65V to 1.95V ±6.0 mA VCC = 1.4V to 1.6V ±4.0 mA VCC = 1.1V to 1.3V ±2.0 mA VCC = 0.9V
Free Air Operating Temperature (TA) ±0.1 mA
-40°C to +85°C Minimum Input Edge Rate (dt/dv)
VIN = 0.8V to 2.0V, VCC = 3.0V © 2003 Fairchild Semiconductor Corporation
NC7SV74 • Rev. 3.0.0 10 ns/V www.fairchildsemi.com
3 NC7SV74 — TinyLogic® ULP-A D Type Flip-Flop with Preset and Clear Absolute Maximum Ratings
