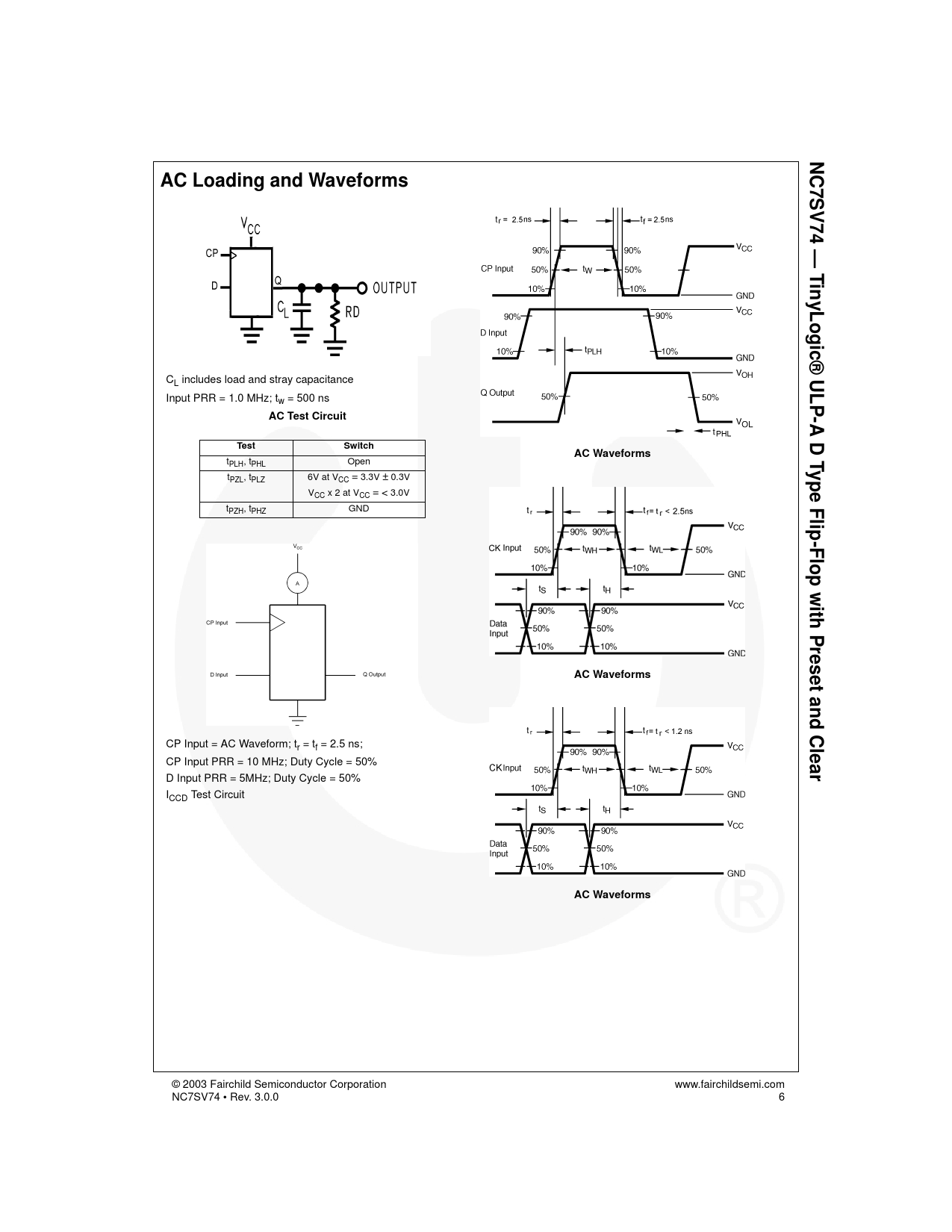

NC7SV74 — TinyLogic® ULP-A D Type Flip-Flop with Preset and Clear AC Loading and Waveforms CL includes load and stray capacitance
Input PRR = 1.0 MHz; tw = 500 ns
AC Test Circuit
Test Switch tPLH, tPHL Open tPZL, tPLZ 6V at VCC = 3.3V ± 0.3V AC Waveforms VCC x 2 at VCC = < 3.0V
tPZH, tPHZ GND AC Waveforms CP Input = AC Waveform; tr = tf = 2.5 ns;
CP Input PRR = 10 MHz; Duty Cycle = 50%
D Input PRR = 5MHz; Duty Cycle = 50%
