v1.0. Steady State Equivalent Circuits
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 5 MM9200 - SPST Power Switch - Preliminary Datasheet | Nov. 30, 2022
v1.0 Steady State Equivalent Circuits

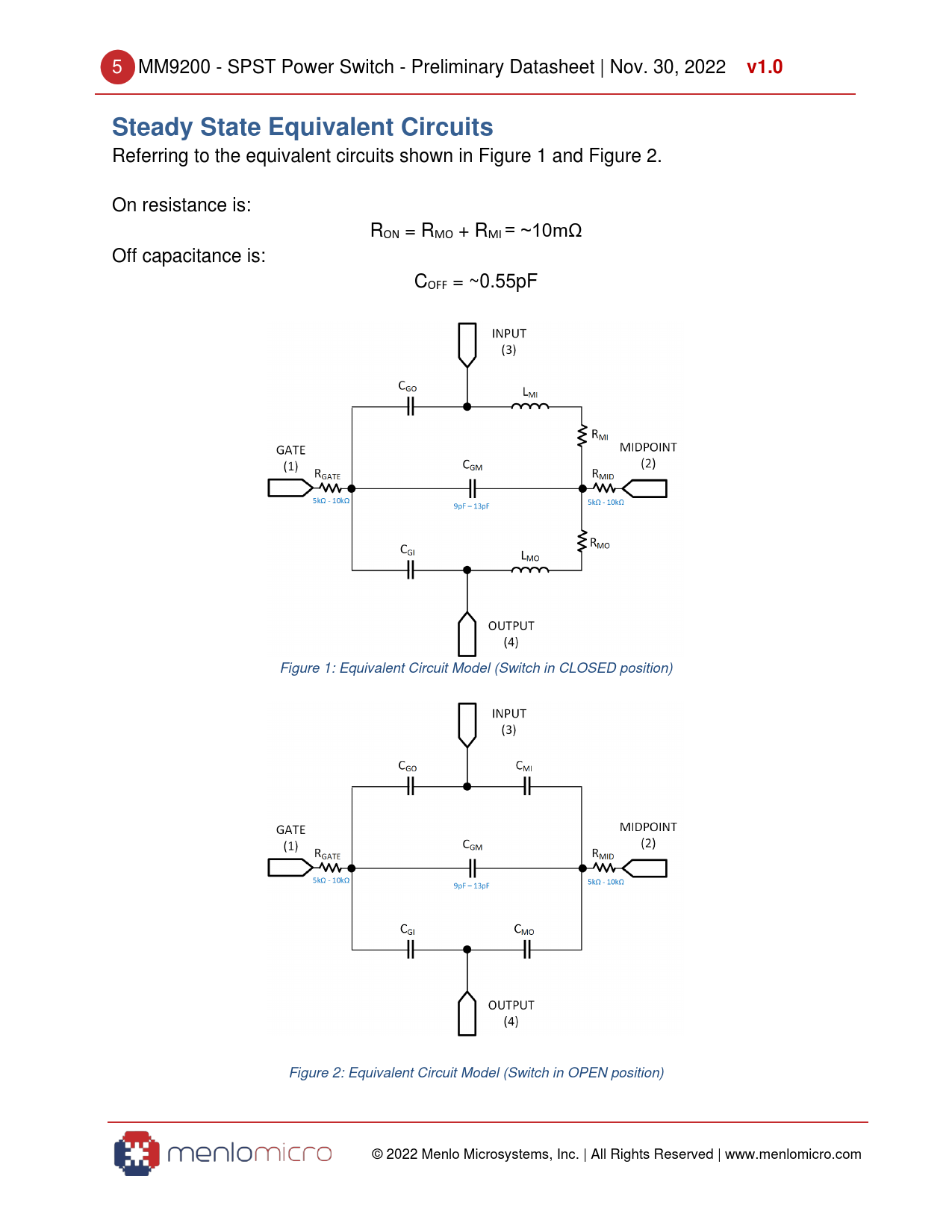

Referring to the equivalent circuits shown in Figure 1 and Figure 2. On resistance is: RON = RMO + RMI = ~10mΩ Off capacitance is: COFF = ~0.55pF Figure 1: Equivalent Circuit Model (Switch in CLOSED position) Figure 2: Equivalent Circuit Model (Switch in OPEN position) © 2022 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
v1.0 Steady State Equivalent Circuits
Referring to the equivalent circuits shown in Figure 1 and Figure 2. On resistance is: RON = RMO + RMI = ~10mΩ Off capacitance is: COFF = ~0.55pF Figure 1: Equivalent Circuit Model (Switch in CLOSED position) Figure 2: Equivalent Circuit Model (Switch in OPEN position) © 2022 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
