| Manufacturer | Alliance Memory |
| Description | 8K x 8 Bit Low Power CMOS SRAM |
| Pages / Page | 13 / 9 — AS6C6264. February 2007. Updated July 2017. 8K X 8 BIT LOW POWER CMOS … |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
AS6C6264. February 2007. Updated July 2017. 8K X 8 BIT LOW POWER CMOS SRAM. PACKAGE OUTLINE DIMENSION
Model Line for this Datasheet
Text Version of Document

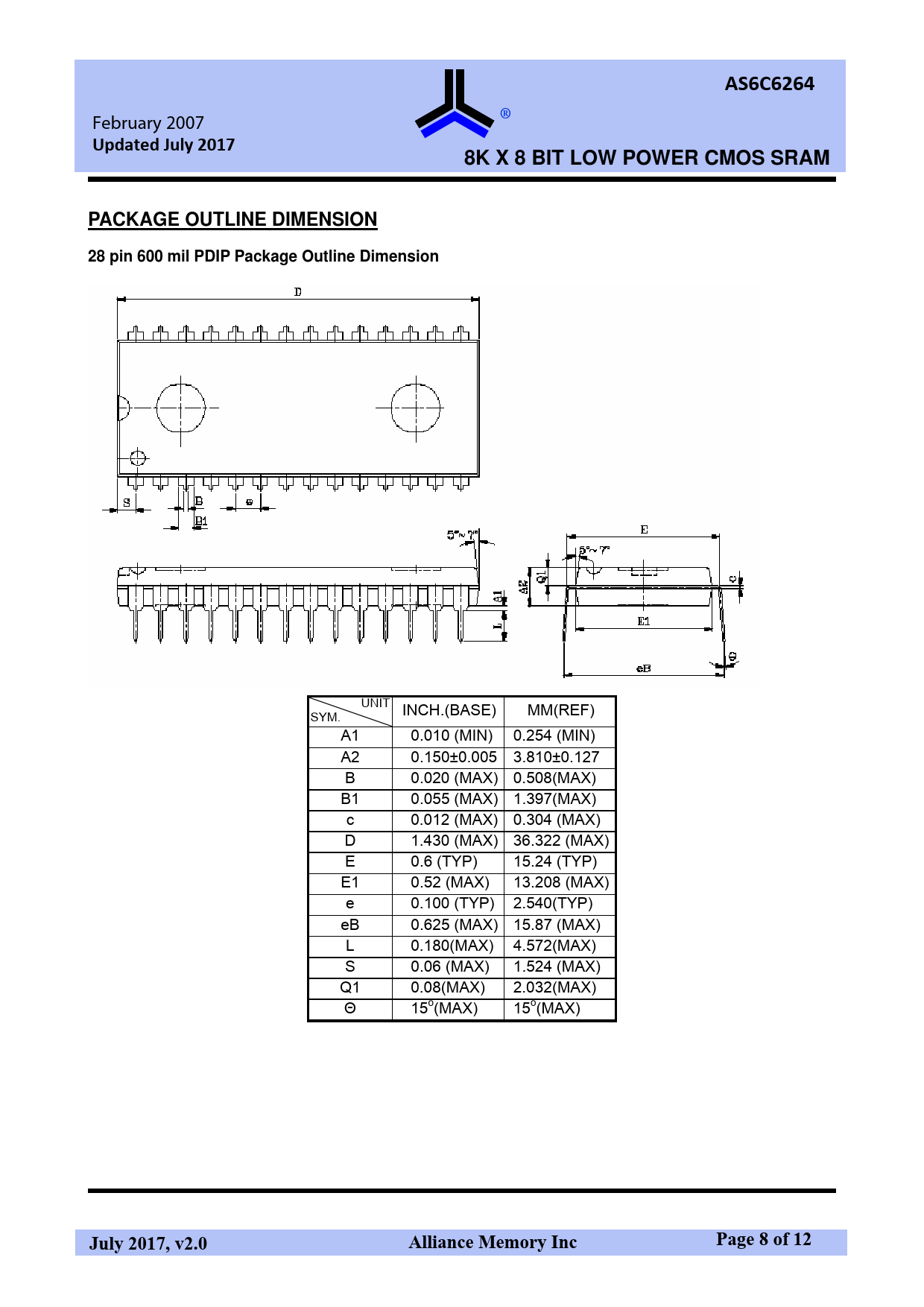

AS6C6264 ® February 2007 Updated July 2017 8K X 8 BIT LOW POWER CMOS SRAM PACKAGE OUTLINE DIMENSION 28 pin 600 mil PDIP Package Outline Dimension
UNIT SYM. INCH.(BASE) MM(REF) A1 0.010 (MIN) 0.254 (MIN) A2 0.150±0.005 3.810±0.127 B 0.020 (MAX) 0.508(MAX) B1 0.055 (MAX) 1.397(MAX) c 0.012 (MAX) 0.304 (MAX) D 1.430 (MAX) 36.322 (MAX) E 0.6 (TYP) 15.24 (TYP) E1 0.52 (MAX) 13.208 (MAX) e 0.100 (TYP) 2.540(TYP) eB 0.625 (MAX) 15.87 (MAX) L 0.180(MAX) 4.572(MAX) S 0.06 (MAX) 1.524 (MAX) Q1 0.08(MAX) 2.032(MAX) Θ 15o(MAX) 15o(MAX)
Page 8 of 12 July 2017, v2.0 Alliance Memory Inc
UNIT SYM. INCH.(BASE) MM(REF) A1 0.010 (MIN) 0.254 (MIN) A2 0.150±0.005 3.810±0.127 B 0.020 (MAX) 0.508(MAX) B1 0.055 (MAX) 1.397(MAX) c 0.012 (MAX) 0.304 (MAX) D 1.430 (MAX) 36.322 (MAX) E 0.6 (TYP) 15.24 (TYP) E1 0.52 (MAX) 13.208 (MAX) e 0.100 (TYP) 2.540(TYP) eB 0.625 (MAX) 15.87 (MAX) L 0.180(MAX) 4.572(MAX) S 0.06 (MAX) 1.524 (MAX) Q1 0.08(MAX) 2.032(MAX) Θ 15o(MAX) 15o(MAX)
