| Manufacturer | Nexperia |
| Description | NPN/PNP Resistor-Equipped Transistors; R1 = 47 kΩ, R2 = 47 kΩ |
| Pages / Page | 17 / 6 — NXP Semiconductors. PEMD12; PUMD12. NPN/PNP resistor-equipped … |
| Revision | 12102022 |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
NXP Semiconductors. PEMD12; PUMD12. NPN/PNP resistor-equipped transistors; R1 = 47 k. , R2 = 47 k. Fig 2
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors PEMD12; PUMD12 NPN/PNP resistor-equipped transistors; R1 = 47 k , R2 = 47 k
006aac751 103 duty cycle = 1 Zth(j-a) 0.75 (K/W) 0.5 0.33 102 0.2 0.1 0.05 0.02 0.01 10 0 1 10-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB, standard footprint

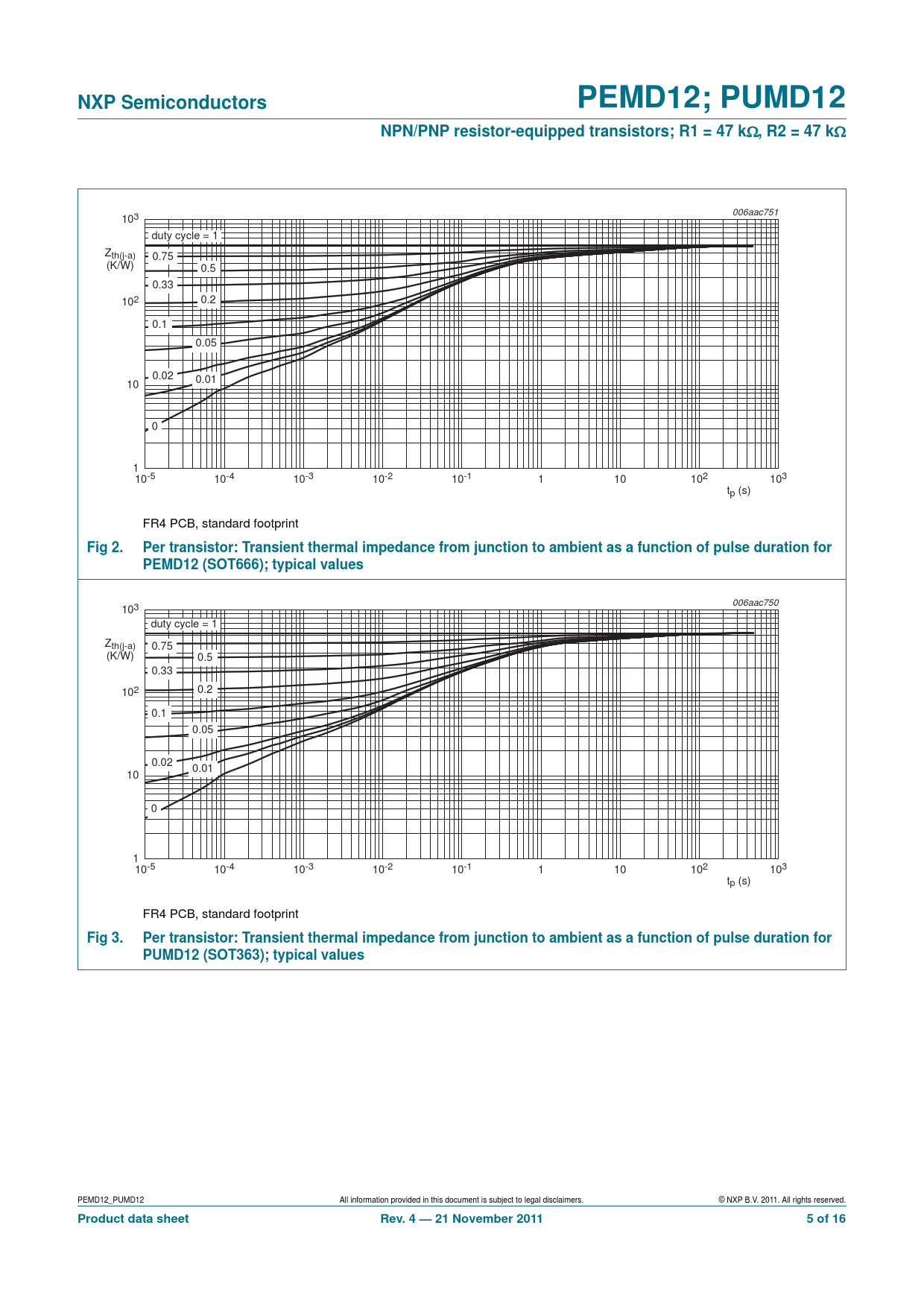

Fig 2. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration for PEMD12 (SOT666); typical values
006aac750 103 duty cycle = 1 Zth(j-a) 0.75 (K/W) 0.5 0.33 102 0.2 0.1 0.05 0.02 0.01 10 0 1 10-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB, standard footprint
Fig 3. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration for PUMD12 (SOT363); typical values
PEMD12_PUMD12 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 4 — 21 November 2011 5 of 16
