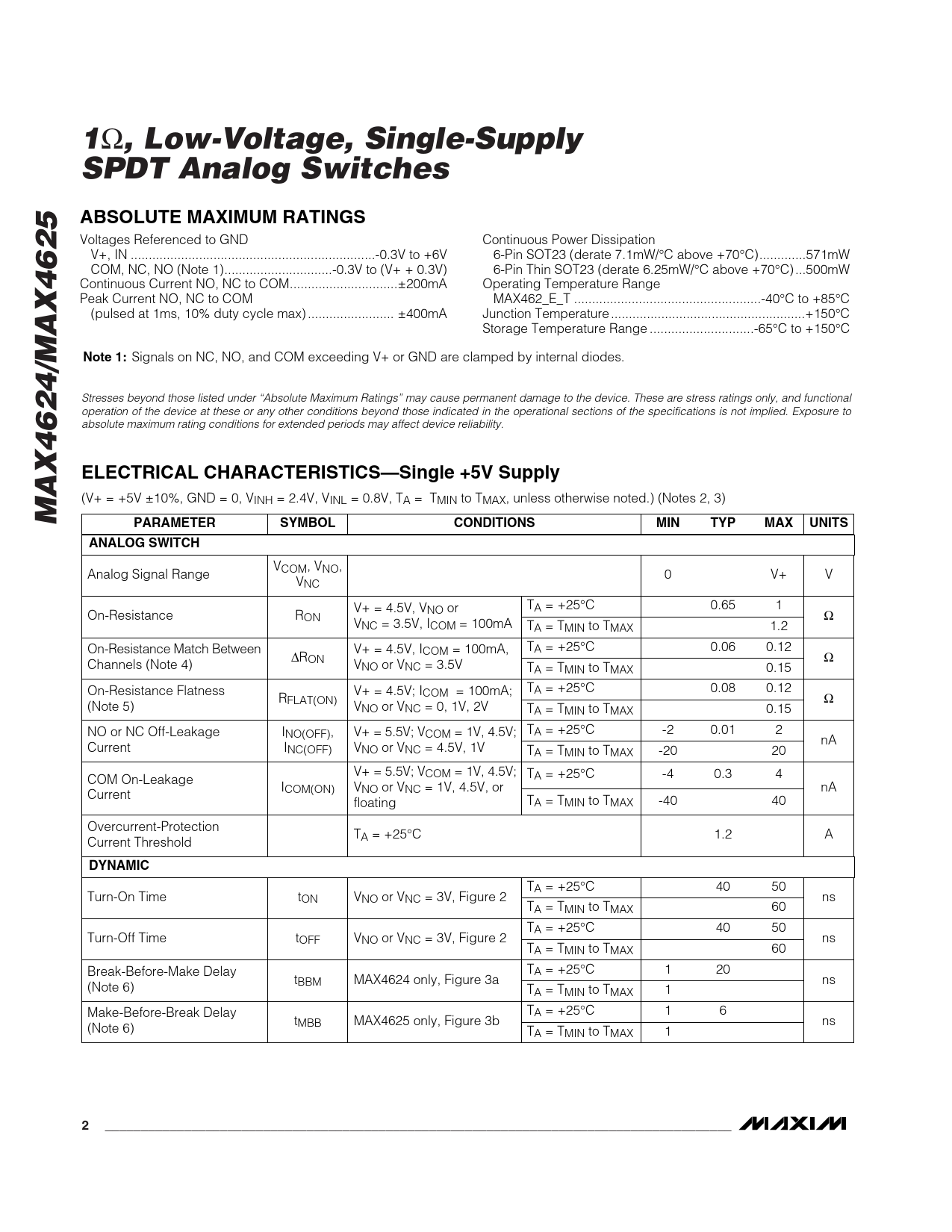

, Low-Voltage, Single-Supply SPDT Analog Switches ABSOLUTE MAXIMUM RATINGS
Voltages Referenced to GND Continuous Power Dissipation V+, IN ..-0.3V to +6V 6-Pin SOT23 (derate 7.1mW/°C above +70°C)...571mW COM, NC, NO (Note 1)..-0.3V to (V+ + 0.3V) 6-Pin Thin SOT23 (derate 6.25mW/°C above +70°C) ...500mW Continuous Current NO, NC to COM..±200mA Operating Temperature Range Peak Current NO, NC to COM MAX462_E_T ..-40°C to +85°C (pulsed at 1ms, 10% duty cycle max) .. ±400mA Junction Temperature ..+150°C Storage Temperature Range ...-65°C to +150°C
Note 1:
Signals on NC, NO, and COM exceeding V+ or GND are clamped by internal diodes. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—Single +5V Supply
(V+ = +5V ±10%, GND = 0, VINH = 2.4V, VINL = 0.8V, TA = TMIN to TMAX, unless otherwise noted.) (Notes 2, 3)
MAX4624/MAX4625 PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS ANALOG SWITCH
V Analog Signal Range COM, VNO, 0 V+ V VNC TA = +25°C 0.65 1 V+ = 4.5V, V On-Resistance R NO or ON Ω VNC = 3.5V, ICOM = 100mA TA = TMIN to TMAX 1.2 TA = +25°C 0.06 0.12 On-Resistance Match Between ∆ V+ = 4.5V, I R COM = 100mA, Ω Channels (Note 4) ON VNO or VNC = 3.5V TA = TMIN to TMAX 0.15 TA = +25°C 0.08 0.12 On-Resistance Flatness V+ = 4.5V; I R COM = 100mA; Ω (Note 5) FLAT(ON) VNO or VNC = 0, 1V, 2V TA = TMIN to TMAX 0.15 TA = +25°C -2 0.01 2 NO or NC Off-Leakage INO(OFF), V+ = 5.5V; VCOM = 1V, 4.5V; nA Current INC(OFF) VNO or VNC = 4.5V, 1V TA = TMIN to TMAX -20 20 V+ = 5.5V; V COM On-Leakage COM = 1V, 4.5V; TA = +25°C -4 0.3 4 ICOM(ON) V nA Current NO or VNC = 1V, 4.5V, or floating TA = TMIN to TMAX -40 40 Overcurrent-Protection TA = +25°C 1.2 A Current Threshold
DYNAMIC
TA = +25°C 40 50 Turn-On Time tON VNO or VNC = 3V, Figure 2 ns TA = TMIN to TMAX 60 TA = +25°C 40 50 Turn-Off Time tOFF VNO or VNC = 3V, Figure 2 ns TA = TMIN to TMAX 60 Break-Before-Make Delay TA = +25°C 1 20 t ns (Note 6) BBM MAX4624 only, Figure 3a TA = TMIN to TMAX 1 TA = +25°C 1 6 Make-Before-Break Delay t ns (Note 6) MBB MAX4625 only, Figure 3b TA = TMIN to TMAX 1
