Datasheet L6204 (STMicroelectronics) - 5
| Manufacturer | STMicroelectronics |
| Description | High bandwidth 6 MHz, rail-to-rail, 5 V cost-effective Op Amp |
| Pages / Page | 17 / 5 — TSL6201, TSL6202, TSL6204. Absolute maximum ratings. Table 4. Absolute … |
| Document Language | English |
TSL6201, TSL6202, TSL6204. Absolute maximum ratings. Table 4. Absolute maximum ratings. Symbol. Parameter. Value. Unit
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5

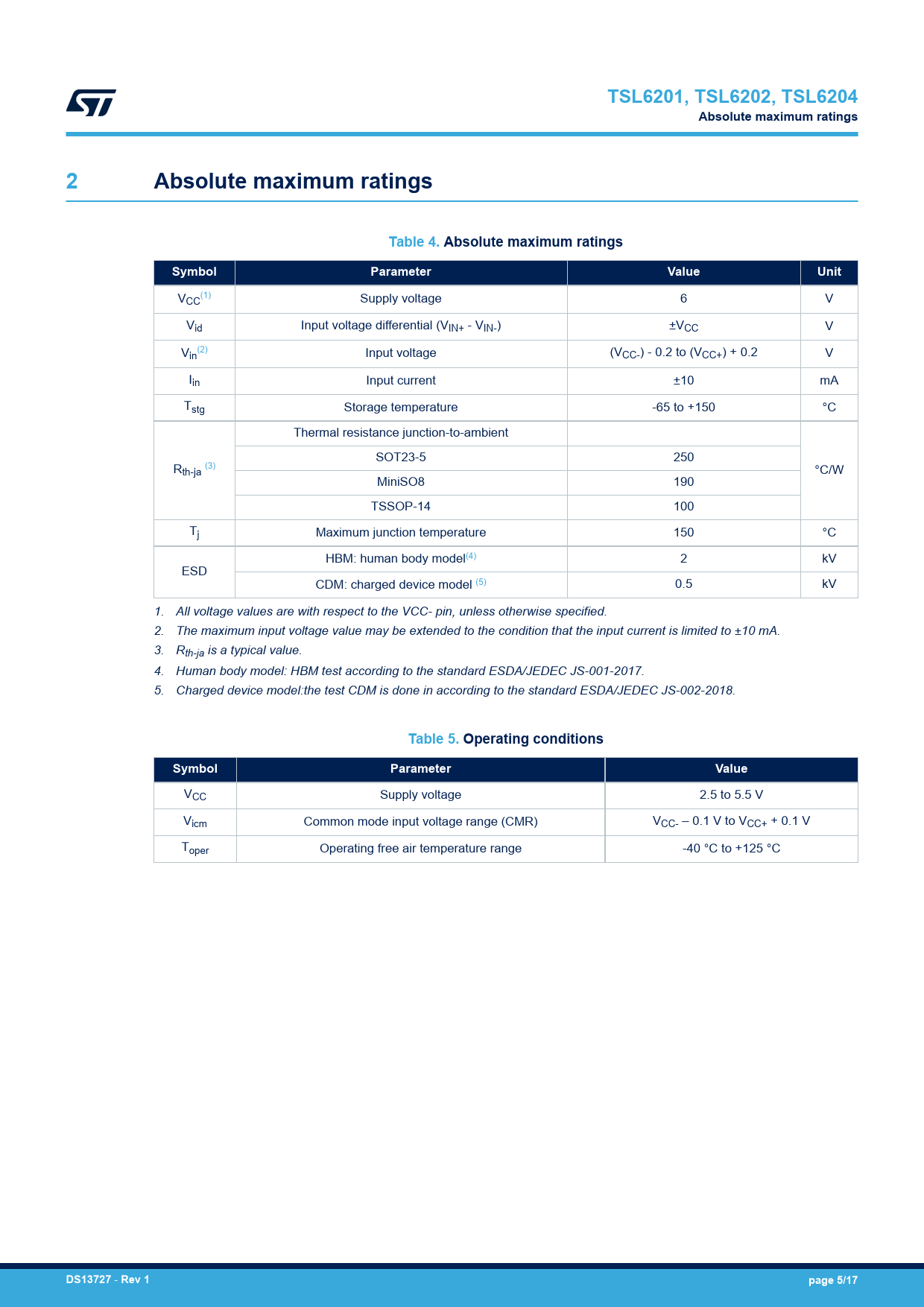

TSL6201, TSL6202, TSL6204 Absolute maximum ratings 2 Absolute maximum ratings Table 4. Absolute maximum ratings Symbol Parameter Value Unit
V (1) CC Supply voltage 6 V Vid Input voltage differential (VIN+ - VIN-) ±VCC V V (2) in Input voltage (VCC-) - 0.2 to (VCC+) + 0.2 V Iin Input current ±10 mA Tstg Storage temperature -65 to +150 °C Thermal resistance junction-to-ambient SOT23-5 250 Rth-ja (3) °C/W MiniSO8 190 TSSOP-14 100 Tj Maximum junction temperature 150 °C HBM: human body model(4) 2 kV ESD CDM: charged device model (5) 0.5 kV 1. All voltage values are with respect to the VCC- pin, unless otherwise specified. 2. The maximum input voltage value may be extended to the condition that the input current is limited to ±10 mA. 3. Rth-ja is a typical value. 4. Human body model: HBM test according to the standard ESDA/JEDEC JS-001-2017. 5. Charged device model:the test CDM is done in according to the standard ESDA/JEDEC JS-002-2018.
Table 5. Operating conditions Symbol Parameter Value
VCC Supply voltage 2.5 to 5.5 V Vicm Common mode input voltage range (CMR) VCC- – 0.1 V to VCC+ + 0.1 V Toper Operating free air temperature range -40 °C to +125 °C
