Datasheet MM74C14 (Fairchild) - 3
| Manufacturer | Fairchild |
| Description | Hex Schmitt Trigger |
| Pages / Page | 6 / 3 — MM74C14. AC Electrical Characteristics. Symbol. Parameter. Conditions. … |
| File Format / Size | PDF / 67 Kb |
| Document Language | English |

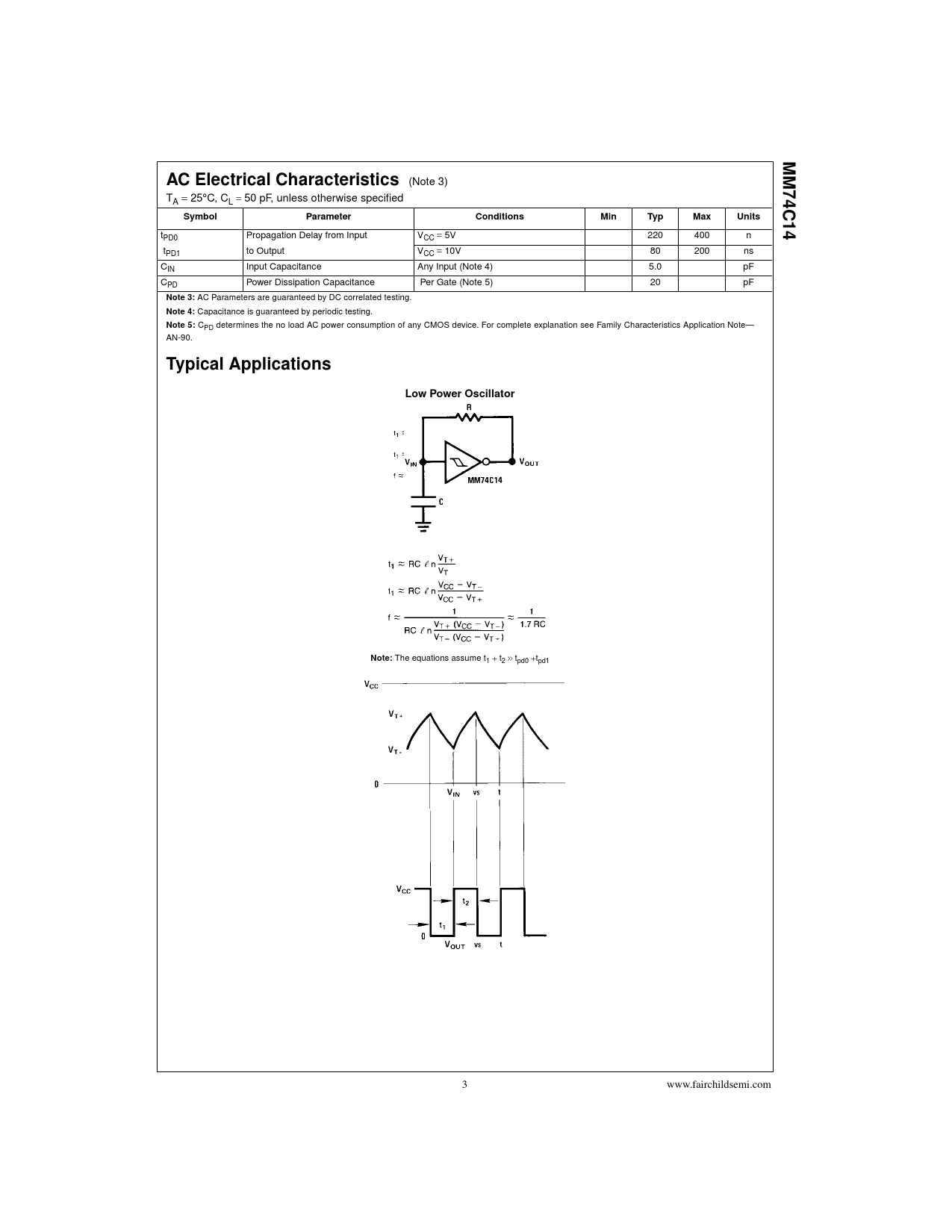

MM74C14. AC Electrical Characteristics. Symbol. Parameter. Conditions. Min. Typ. Max. Units. Note 3:. Note 4:. Note 5:. Typical Applications
Model Line for this Datasheet
Text Version of Document
MM74C14 AC Electrical Characteristics
(Note 3) TA = 25°C, CL = 50 pF, unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units
tPD0 Propagation Delay from Input VCC = 5V 220 400 n tPD1 to Output VCC = 10V 80 200 ns CIN Input Capacitance Any Input (Note 4) 5.0 pF CPD Power Dissipation Capacitance Per Gate (Note 5) 20 pF
Note 3:
AC Parameters are guaranteed by DC correlated testing.
Note 4:
Capacitance is guaranteed by periodic testing.
Note 5:
CPD determines the no load AC power consumption of any CMOS device. For complete explanation see Family Characteristics Application Note— AN-90.
Typical Applications Low Power Oscillator Note:
The equations assume t1 + t2 >> tpd0 +tpd1 3 www.fairchildsemi.com
