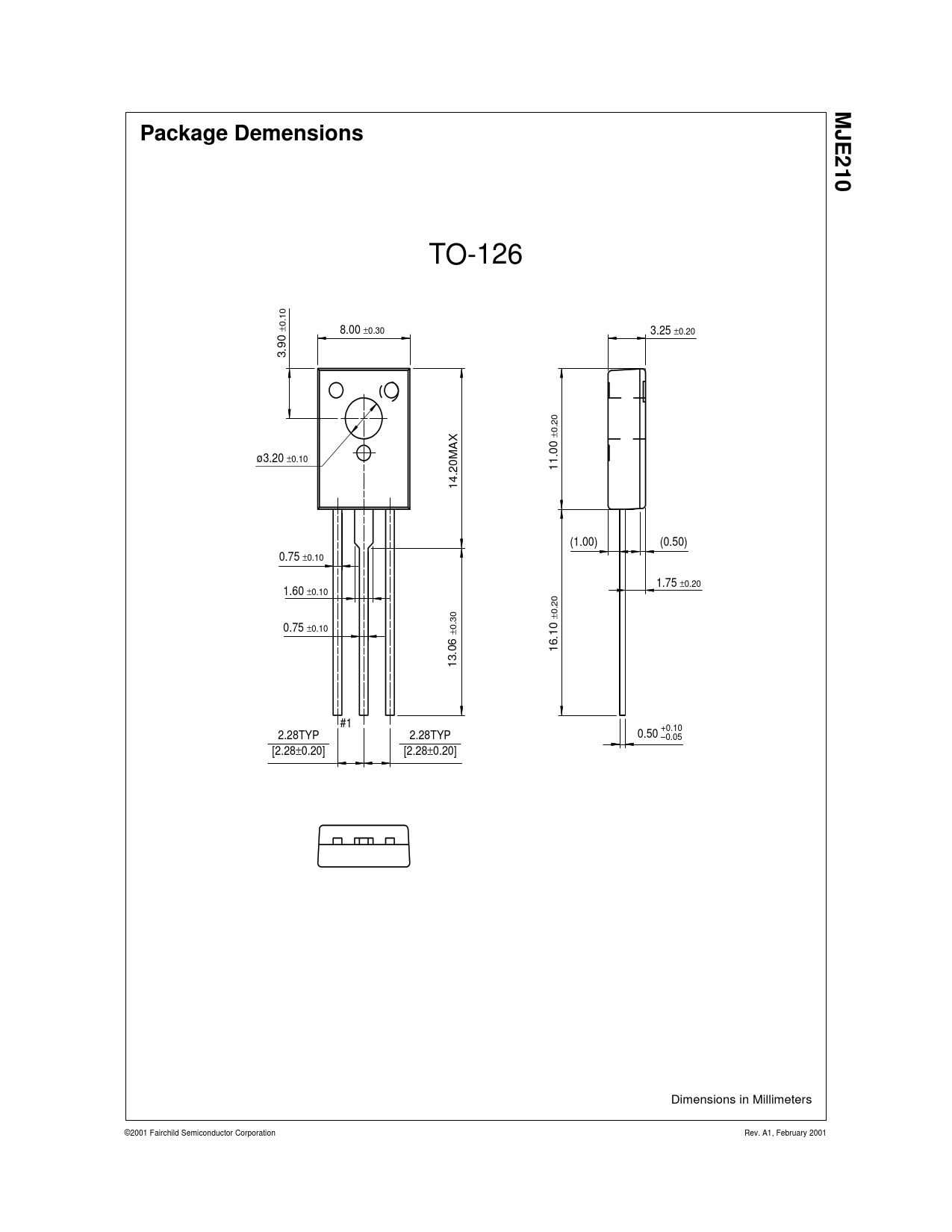

MJE210 Package Demensions 8.00 ±0.30 11.00 ø3.20 ±0.10 ±0.20 3.25 ±0.20 14.20MAX 3.90 ±0.10 TO-126 (1.00) (0.50) 0.75 ±0.10 #1
2.28TYP
[2.28±0.20] 2.28TYP
[2.28±0.20] 16.10 ±0.30 13.06 0.75 ±0.10 ±0.20 1.75 ±0.20 1.60 ±0.10 +0.10 0.50 –0.05 Dimensions in Millimeters
