Datasheet ASMT-Jx1x (Avago Technologies) - 10
| Manufacturer | Avago Technologies |
| Description | 1 W Mini Power LED Light Source |
| Pages / Page | 16 / 10 — Solder. 0.80. Pad. 0.85. 1.90. Slug. Indepdent. 3.50. 5.20. 1.75. 3.2. … |
| File Format / Size | PDF / 470 Kb |
| Document Language | English |

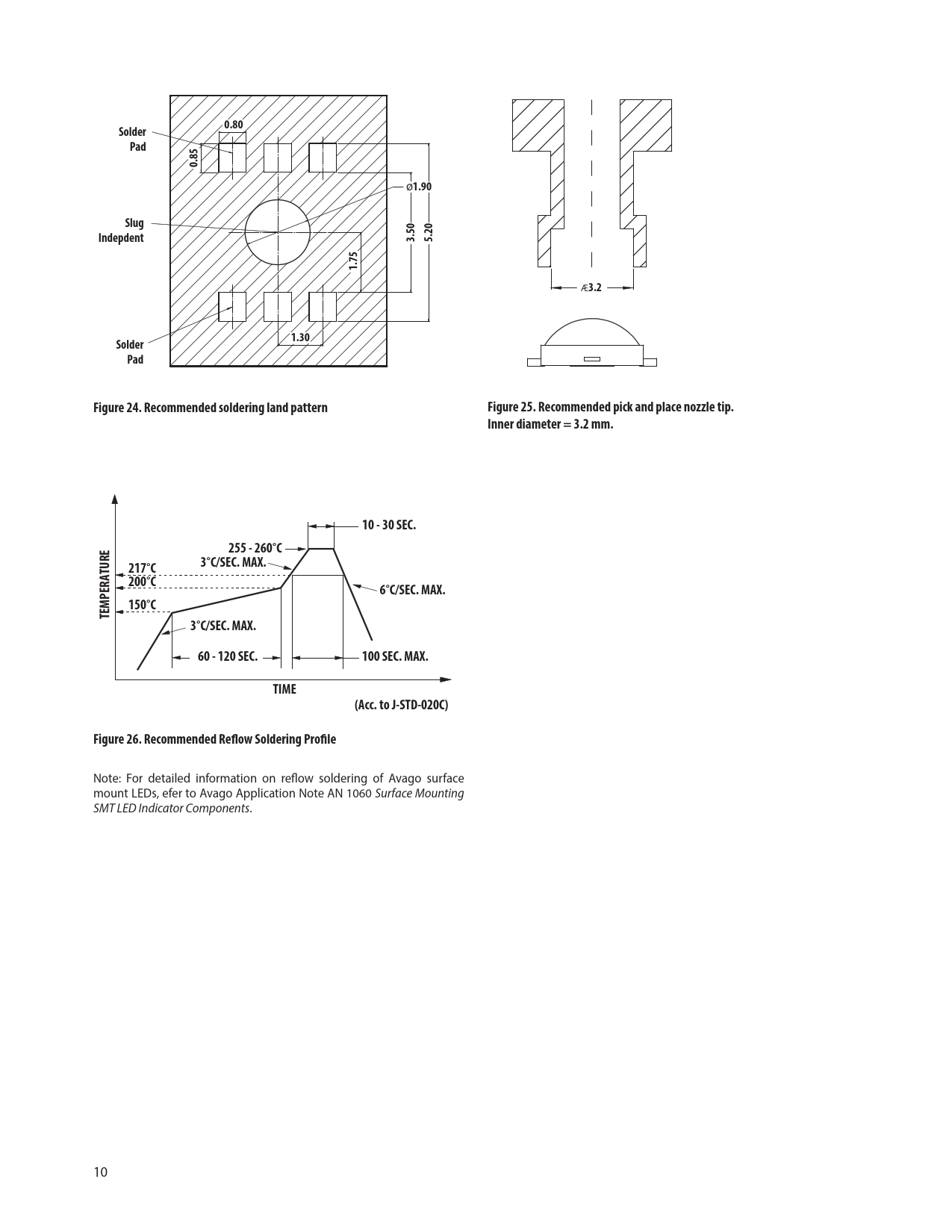

Solder. 0.80. Pad. 0.85. 1.90. Slug. Indepdent. 3.50. 5.20. 1.75. 3.2. 1.30. Figure 24. Recommended soldering land pattern
Model Line for this Datasheet
Text Version of Document
Solder 0.80 Pad 0.85
ø
1.90 Slug Indepdent 3.50 5.20 1.75
Æ
3.2 Solder 1.30 Pad Figure 24. Recommended soldering land pattern Figure 25. Recommended pick and place nozzle tip. Inner diameter = 3.2 mm. 10 - 30 SEC. 255 - 260°C 217°C 3°C/SEC. MAX. 200°C 6°C/SEC. MAX. 150°C TEMPERATURE 3°C/SEC. MAX. 60 - 120 SEC. 100 SEC. MAX. TIME (Acc. to J-STD-020C) Figure 26. Recommended Reflow Soldering Profile
Note: For detailed information on reflow soldering of Avago surface mount LEDs, efer to Avago Application Note AN 1060 Surface Mounting SMT LED Indicator Components. 10
