Datasheet BAT49 (STMicroelectronics) - 4
| Manufacturer | STMicroelectronics |
| Description | Small Signal Schottky Diode |
| Pages / Page | 4 / 4 — BAT 49. PACKAGE MECHANICAL DATA. DIMENSIONS. REF. Millimeters. Inches. … |
| File Format / Size | PDF / 74 Kb |
| Document Language | English |

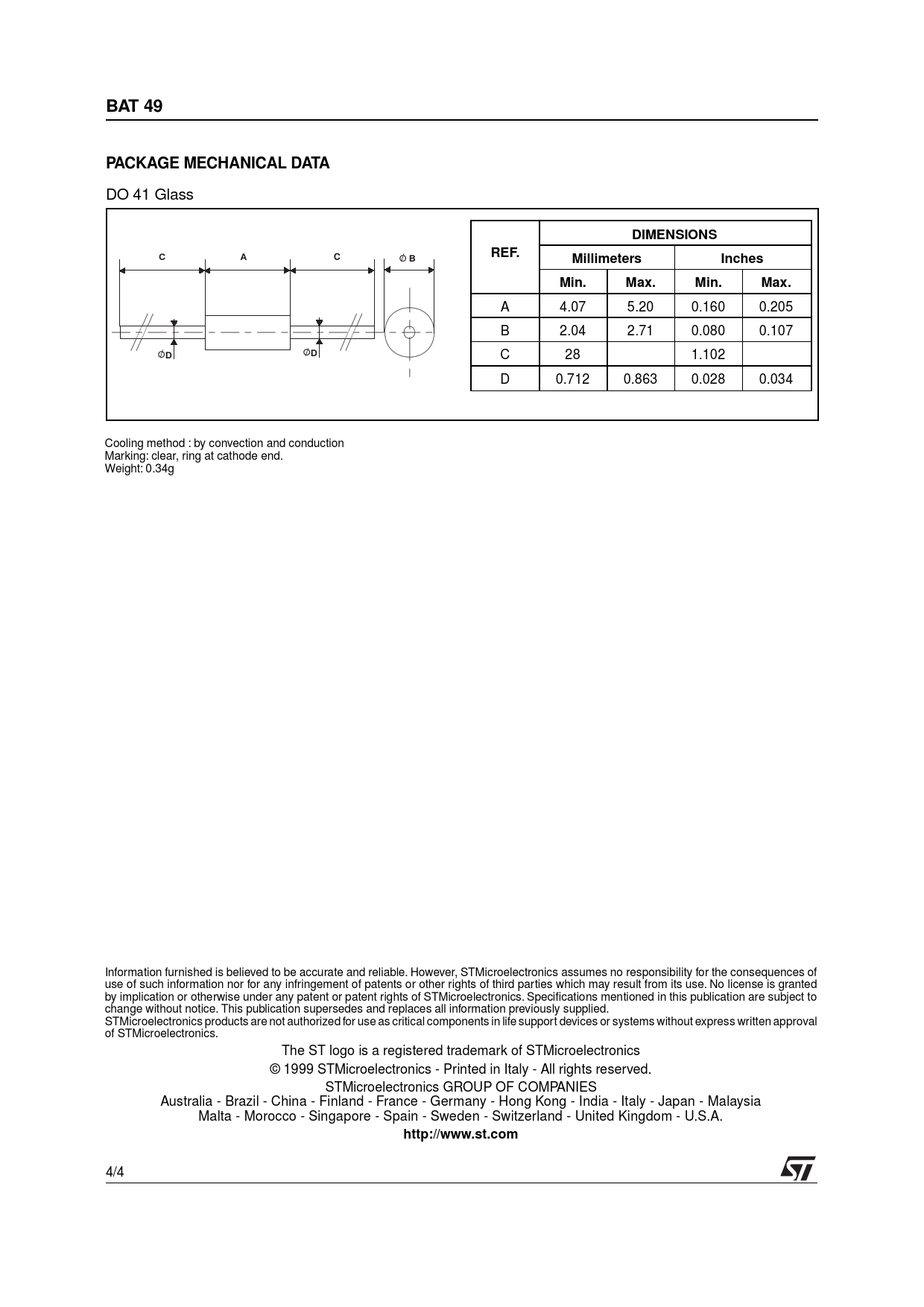

BAT 49. PACKAGE MECHANICAL DATA. DIMENSIONS. REF. Millimeters. Inches. Min. Max. http://www.st.com
Model Line for this Datasheet
Text Version of Document
BAT 49 PACKAGE MECHANICAL DATA
DO 41 Glass
DIMENSIONS C A C REF.
O /
B Millimeters Inches Min. Max. Min. Max.
A 4.07 5.20 0.160 0.205 B 2.04 2.71 0.080 0.107 O O / /
D D
C 28 1.102 D 0.712 0.863 0.028 0.034 Cooling method : by convection and conduction Marking: clear, ring at cathode end. Weight: 0.34g Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a registered trademark of STMicroelectronics © 1999 STMicroelectronics - Printed in Italy - All rights reserved. STMicroelectronics GROUP OF COMPANIES Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.
