Datasheet 1N4702 (Vishay) - 2

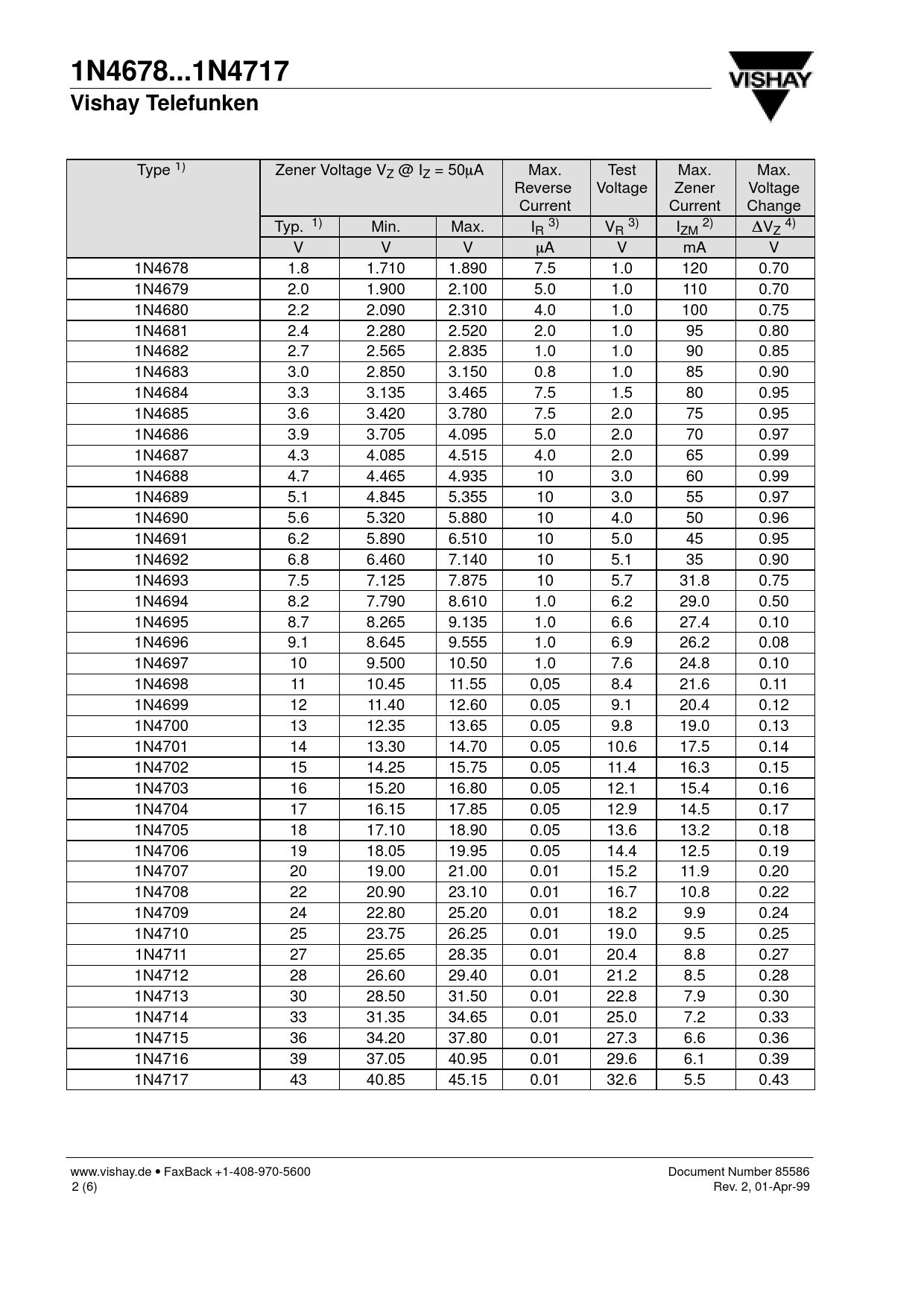

1N4678...1N4717 Vishay Telefunken
Type 1) Zener Voltage VZ @ IZ = 50mA Max. Test Max. Max. Reverse Voltage Zener Voltage Current Current Change Typ. 1) Min. Max. IR 3) VR 3) IZM 2) DVZ 4) V V V mA V mA V 1N4678 1.8 1.710 1.890 7.5 1.0 120 0.70 1N4679 2.0 1.900 2.100 5.0 1.0 110 0.70 1N4680 2.2 2.090 2.310 4.0 1.0 100 0.75 1N4681 2.4 2.280 2.520 2.0 1.0 95 0.80 1N4682 2.7 2.565 2.835 1.0 1.0 90 0.85 1N4683 3.0 2.850 3.150 0.8 1.0 85 0.90 1N4684 3.3 3.135 3.465 7.5 1.5 80 0.95 1N4685 3.6 3.420 3.780 7.5 2.0 75 0.95 1N4686 3.9 3.705 4.095 5.0 2.0 70 0.97 1N4687 4.3 4.085 4.515 4.0 2.0 65 0.99 1N4688 4.7 4.465 4.935 10 3.0 60 0.99 1N4689 5.1 4.845 5.355 10 3.0 55 0.97 1N4690 5.6 5.320 5.880 10 4.0 50 0.96 1N4691 6.2 5.890 6.510 10 5.0 45 0.95 1N4692 6.8 6.460 7.140 10 5.1 35 0.90 1N4693 7.5 7.125 7.875 10 5.7 31.8 0.75 1N4694 8.2 7.790 8.610 1.0 6.2 29.0 0.50 1N4695 8.7 8.265 9.135 1.0 6.6 27.4 0.10 1N4696 9.1 8.645 9.555 1.0 6.9 26.2 0.08 1N4697 10 9.500 10.50 1.0 7.6 24.8 0.10 1N4698 11 10.45 11.55 0,05 8.4 21.6 0.11 1N4699 12 11.40 12.60 0.05 9.1 20.4 0.12 1N4700 13 12.35 13.65 0.05 9.8 19.0 0.13 1N4701 14 13.30 14.70 0.05 10.6 17.5 0.14 1N4702 15 14.25 15.75 0.05 11.4 16.3 0.15 1N4703 16 15.20 16.80 0.05 12.1 15.4 0.16 1N4704 17 16.15 17.85 0.05 12.9 14.5 0.17 1N4705 18 17.10 18.90 0.05 13.6 13.2 0.18 1N4706 19 18.05 19.95 0.05 14.4 12.5 0.19 1N4707 20 19.00 21.00 0.01 15.2 11.9 0.20 1N4708 22 20.90 23.10 0.01 16.7 10.8 0.22 1N4709 24 22.80 25.20 0.01 18.2 9.9 0.24 1N4710 25 23.75 26.25 0.01 19.0 9.5 0.25 1N4711 27 25.65 28.35 0.01 20.4 8.8 0.27 1N4712 28 26.60 29.40 0.01 21.2 8.5 0.28 1N4713 30 28.50 31.50 0.01 22.8 7.9 0.30 1N4714 33 31.35 34.65 0.01 25.0 7.2 0.33 1N4715 36 34.20 37.80 0.01 27.3 6.6 0.36 1N4716 39 37.05 40.95 0.01 29.6 6.1 0.39 1N4717 43 40.85 45.15 0.01 32.6 5.5 0.43 www.vishay.de • FaxBack +1-408-970-5600 Document Number 85586 2 (6) Rev. 2, 01-Apr-99
