Datasheet FMMT717 (Diodes) - 6
| Manufacturer | Diodes |
| Description | 12V PNP Silicon Low Saturation Transistor In SOT23 |
| Pages / Page | 7 / 6 — A Product Line of. Diodes Incorporated. FMMT717. Package Outline … |
| File Format / Size | PDF / 421 Kb |
| Document Language | English |

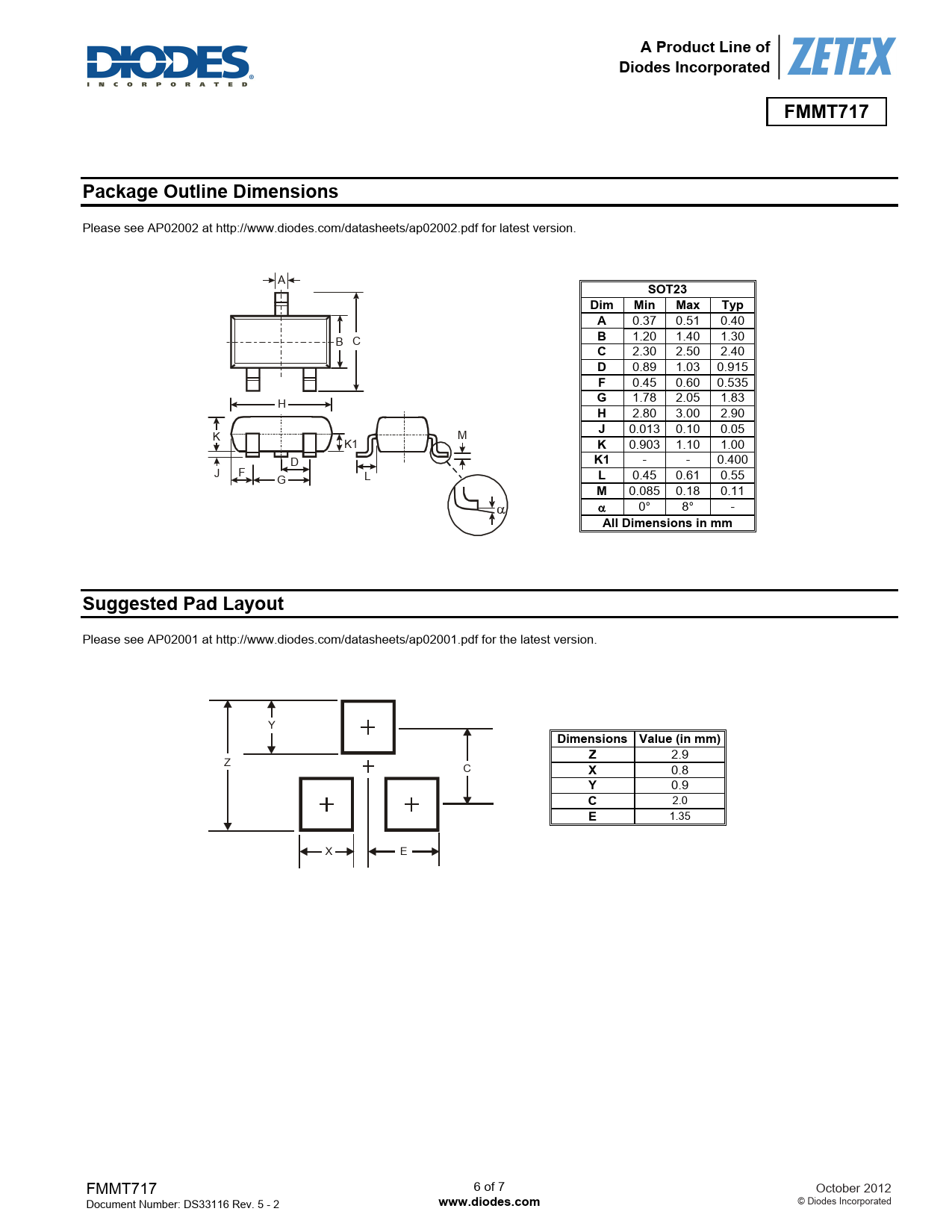

A Product Line of. Diodes Incorporated. FMMT717. Package Outline Dimensions. SOT23. Dim Min Max Typ. All Dimensions in mm
Model Line for this Datasheet
Text Version of Document
A Product Line of Diodes Incorporated FMMT717 Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A
SOT23 Dim Min Max Typ A
0.37 0.51 0.40
B
1.20 1.40 1.30 B C
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83 H
H
2.80 3.00 2.90
J
0.013 0.10 0.05 K M K1
K
0.903 1.10 1.00 D
K1
- - 0.400 J F L
L
0.45 0.61 0.55 G
M
0.085 0.18 0.11 α 0° 8° -
All Dimensions in mm Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. Y
Dimensions Value (in mm) Z
2.9 Z C
X
0.8
Y
0.9
C
2.0
E
1.35 X E FMMT717 6 of 7 October 2012 Document Number: DS33116 Rev. 5 - 2
