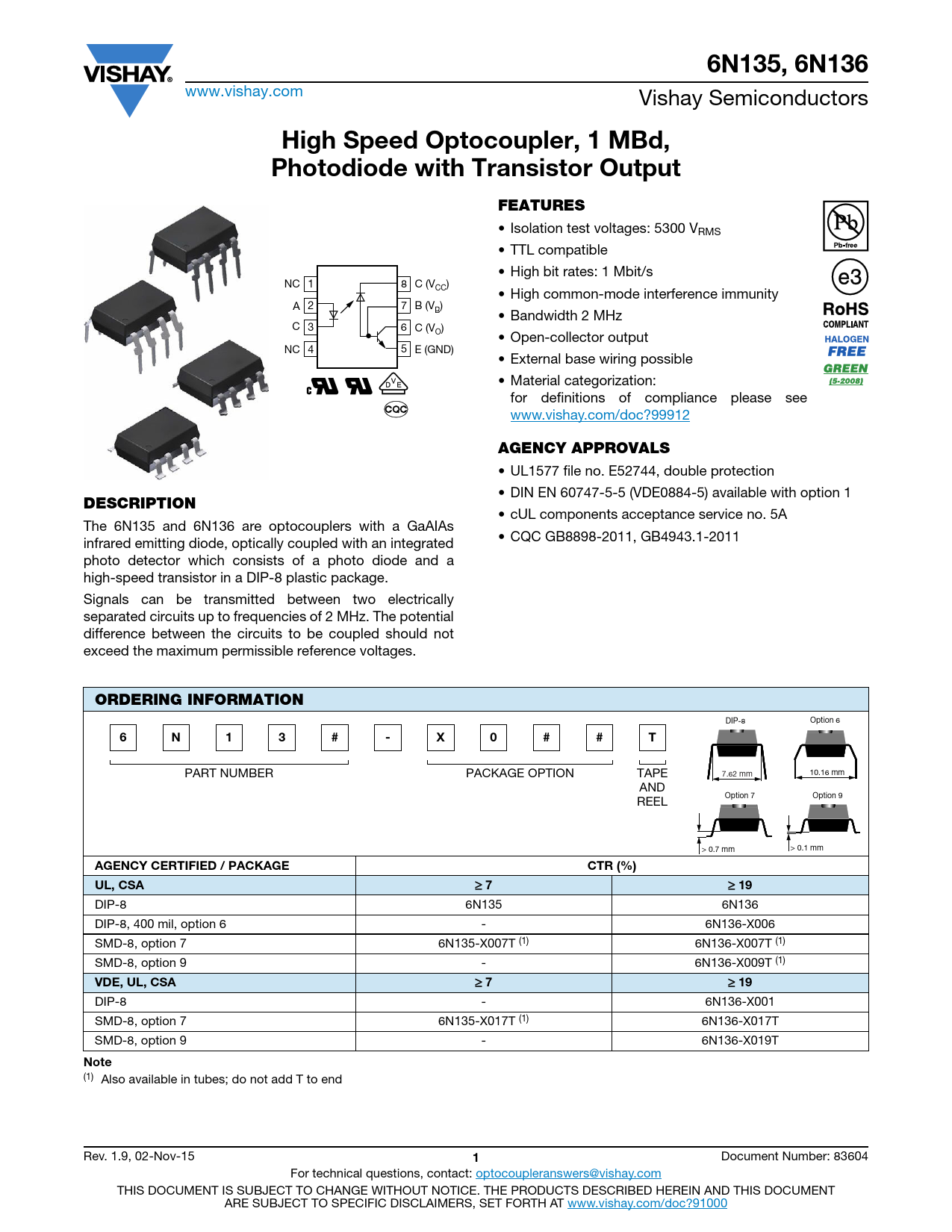

6N135, 6N136
www.vishay.com Vishay Semiconductors
High Speed Optocoupler, 1 MBd, Photodiode with Transistor Output FEATURES
• Isolation test voltages: 5300 VRMS • TTL compatible • High bit rates: 1 Mbit/s NC 1 8 C (V ) CC • High common-mode interference immunity A 2 7 B (V ) B • Bandwidth 2 MHz C 3 6 C (V ) O • Open-collector output NC 4 5 E (GND) • External base wiring possible • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
AGENCY APPROVALS
• UL1577 file no. E52744, double protection • DIN EN 60747-5-5 (VDE0884-5) available with option 1
DESCRIPTION
• cUL components acceptance service no. 5A The 6N135 and 6N136 are optocouplers with a GaAIAs • CQC GB8898-2011, GB4943.1-2011 infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP-8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.
ORDERING INFORMATION
DIP-8 Option 6
6 N 1 3 # - X 0 # # T
PART NUMBER PACKAGE OPTION TAPE 10.16 mm 7.62 mm AND Option 7 Option 9 REEL > 0.7 mm > 0.1 mm
AGENCY CERTIFIED / PACKAGE CTR (%) UL, CSA
≥
7
≥
19
DIP-8 6N135 6N136 DIP-8, 400 mil, option 6 - 6N136-X006 SMD-8, option 7 6N135-X007T (1) 6N136-X007T (1) SMD-8, option 9 - 6N136-X009T (1)
VDE, UL, CSA
≥
7
≥
19
DIP-8 - 6N136-X001 SMD-8, option 7 6N135-X017T (1) 6N136-X017T SMD-8, option 9 - 6N136-X019T
Note
(1) Also available in tubes; do not add T to end Rev. 1.9, 02-Nov-15
1
Document Number: 83604 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
