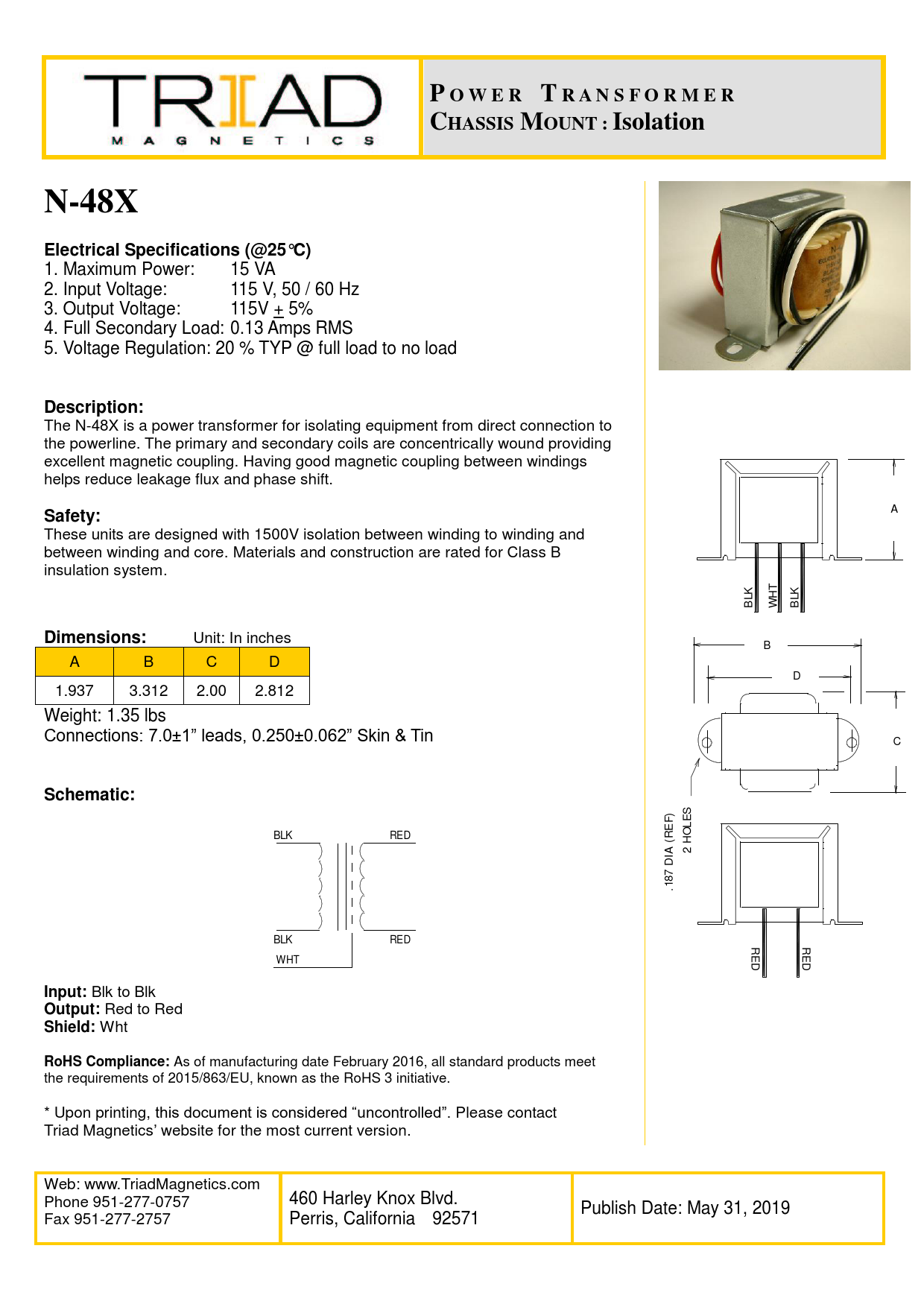

P O W E R T R A N S F O R M E R CHASSIS MOUNT : Isolation. N-48X. Electrical Specifications (@25°C). Description:. Safety:
Model Line for this Datasheet
Text Version of Document
P O W E R T R A N S F O R M E R CHASSIS MOUNT : Isolation N-48X Electrical Specifications (@25°C)
1. Maximum Power: 15 VA 2. Input Voltage: 115 V, 50 / 60 Hz 3. Output Voltage: 115V + 5% 4. Full Secondary Load: 0.13 Amps RMS 5. Voltage Regulation: 20 % TYP @ full load to no load
Description:
The N-48X is a power transformer for isolating equipment from direct connection to the powerline. The primary and secondary coils are concentrically wound providing excellent magnetic coupling. Having good magnetic coupling between windings helps reduce leakage flux and phase shift. A
Safety:
These units are designed with 1500V isolation between winding to winding and between winding and core. Materials and construction are rated for Class B insulation system. K T K L H L B W B
Dimensions:
Unit: In inches B A B C D D 1.937 3.312 2.00 2.812 Weight: 1.35 lbs Connections: 7.0±1” leads, 0.250±0.062” Skin & Tin C
Schematic:
) S F E E L BLK RED R O ( H AI 2 D 7 8 1 . BLK RED R R E E WHT D D
Input:
Blk to Blk
Output:
Red to Red
Shield:
Wht
RoHS Compliance:
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. * Upon printing, this document is considered “uncontrol ed”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 460 Harley Knox Blvd. Publish Date: May 31, 2019 Fax 951-277-2757 Perris, California 92571
