Datasheet NDS331N (ON Semiconductor) - 8
| Manufacturer | ON Semiconductor |
| Description | N-Channel Logic Level Enhancement Mode Field Effect Transistor |
| Pages / Page | 9 / 8 — PACKAGE DIMENSIONS. SOT−23/SUPERSOT. −23, 3 LEAD, 1.4x2.9. GENERIC. … |
| File Format / Size | PDF / 282 Kb |
| Document Language | English |
PACKAGE DIMENSIONS. SOT−23/SUPERSOT. −23, 3 LEAD, 1.4x2.9. GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: 98AON34319E. DESCRIPTION:
Model Line for this Datasheet
Text Version of Document
MECHANICAL CASE OUTLINE

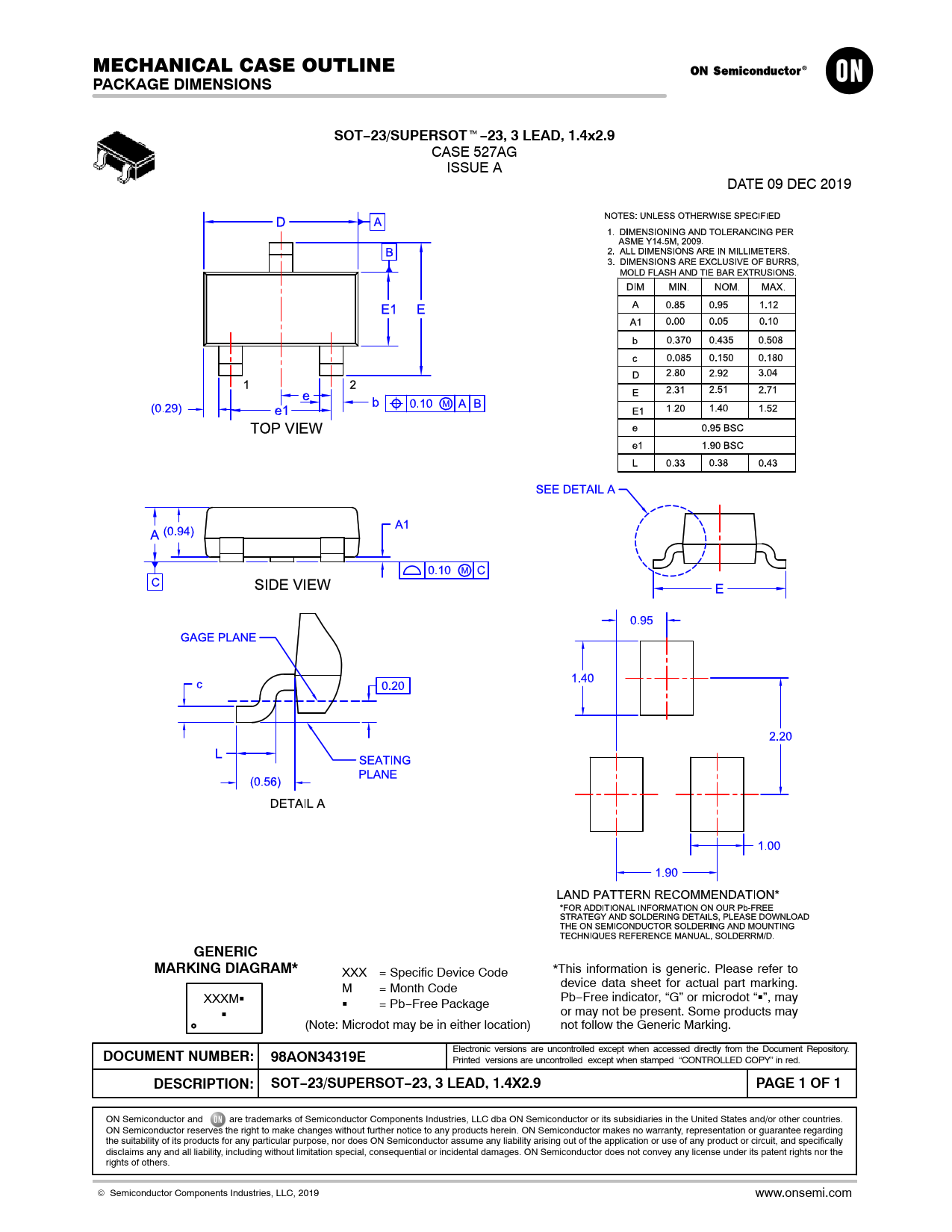

PACKAGE DIMENSIONS SOT−23/SUPERSOT
t
−23, 3 LEAD, 1.4x2.9
CASE 527AG ISSUE A DATE 09 DEC 2019
GENERIC MARKING DIAGRAM*
XXX = Specific Device Code *This information is generic. Please refer to M = Month Code device data sheet for actual part marking. XXXMG G = Pb−Free Package Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may G (Note: Microdot may be in either location) not follow the Generic Marking.
DOCUMENT NUMBER: 98AON34319E
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: SOT−23/SUPERSOT−23, 3 LEAD, 1.4X2.9 PAGE 1 OF 1
