Datasheet IRFP240 (Vishay) - 4
| Manufacturer | Vishay |
| Description | Power MOSFET |
| Pages / Page | 10 / 4 — IRFP240. Fig. 7 - Typical Source-Drain Diode Forward Voltage. Fig. 9 - … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
IRFP240. Fig. 7 - Typical Source-Drain Diode Forward Voltage. Fig. 9 - Maximum Drain Current vs. Case Temperature
Model Line for this Datasheet
Text Version of Document
IRFP240
www.vishay.com Vishay Siliconix

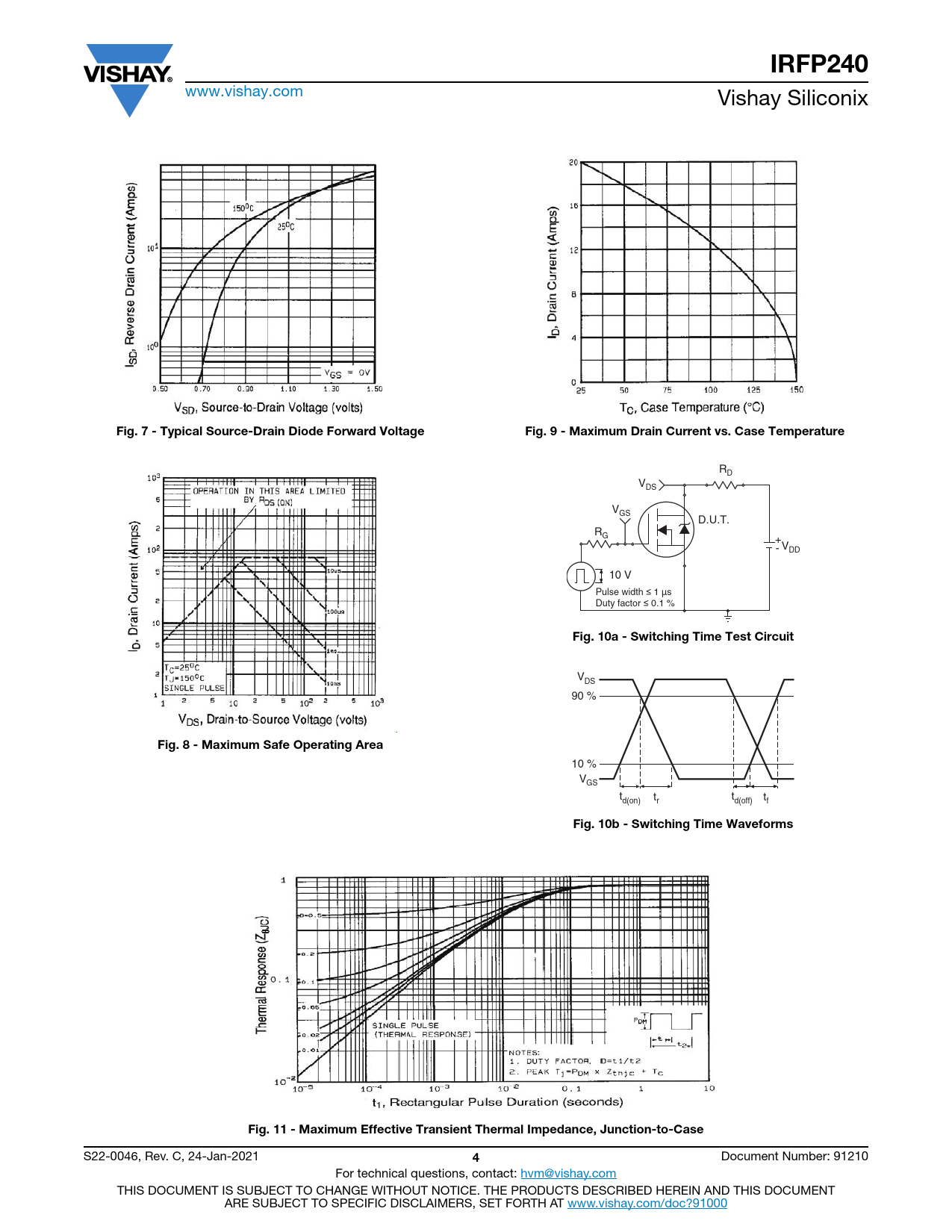

Fig. 7 - Typical Source-Drain Diode Forward Voltage Fig. 9 - Maximum Drain Current vs. Case Temperature
RD VDS VGS D.U.T. RG + - VDD 10 V Pulse width ≤ 1 µs Duty factor ≤ 0.1 %
Fig. 10a - Switching Time Test Circuit
VDS 90 %
Fig. 8 - Maximum Safe Operating Area
10 % VGS t t t t d(on) r d(off) f
Fig. 10b - Switching Time Waveforms Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
S22-0046, Rev. C, 24-Jan-2021
4
Document Number: 91210 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
