Datasheet TMUX4051, TMUX4052, TMUX4053 (Texas Instruments) - 9
| Manufacturer | Texas Instruments |
| Description | 24-V, 8:1, 1-Channel, 4:1, 2-Channel and 2:1, 3-Channel Multiplexers with 1.8-V Logic |
| Pages / Page | 42 / 9 — TMUX4051, TMUX4052. , TMUX4053. www.ti.com. 7.5 Electrical … |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
TMUX4051, TMUX4052. , TMUX4053. www.ti.com. 7.5 Electrical Characteristics. PARAMETER. TEST CONDITIONS. VDD. VSS. MIN. TYP. MAX. UNIT
Model Line for this Datasheet
Text Version of Document
TMUX4051, TMUX4052 , TMUX4053 www.ti.com
SCDS445B – MAY 2022 – REVISED MARCH 2023

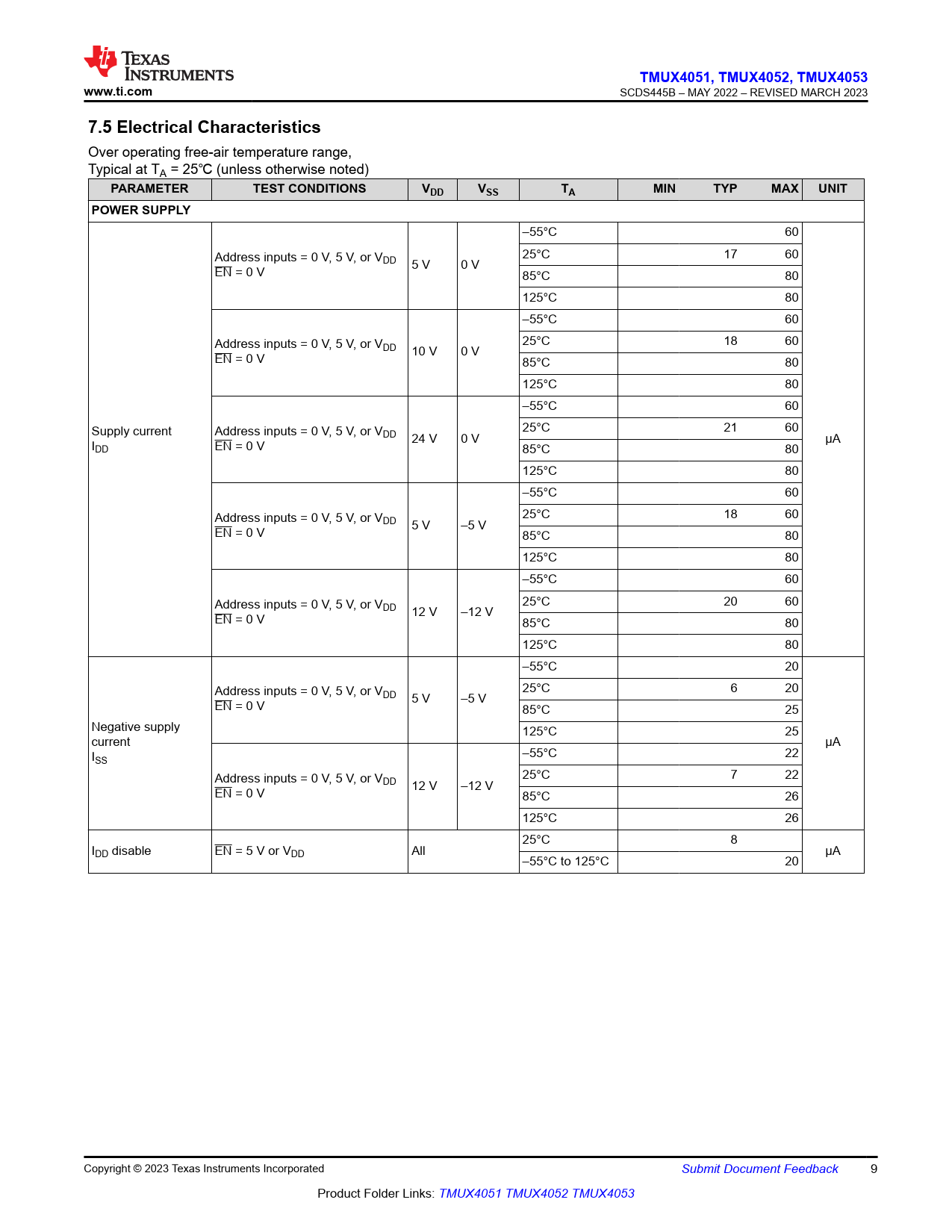

7.5 Electrical Characteristics
Over operating free-air temperature range, Typical at TA = 25℃ (unless otherwise noted)
PARAMETER TEST CONDITIONS VDD VSS TA MIN TYP MAX UNIT POWER SUPPLY
–55°C 60 Address inputs = 0 V, 5 V, or V 25°C 17 60 DD 5 V 0 V EN = 0 V 85°C 80 125°C 80 –55°C 60 Address inputs = 0 V, 5 V, or V 25°C 18 60 DD 10 V 0 V EN = 0 V 85°C 80 125°C 80 –55°C 60 Supply current Address inputs = 0 V, 5 V, or V 25°C 21 60 DD 24 V 0 V µA IDD EN = 0 V 85°C 80 125°C 80 –55°C 60 Address inputs = 0 V, 5 V, or V 25°C 18 60 DD 5 V –5 V EN = 0 V 85°C 80 125°C 80 –55°C 60 Address inputs = 0 V, 5 V, or V 25°C 20 60 DD 12 V –12 V EN = 0 V 85°C 80 125°C 80 –55°C 20 Address inputs = 0 V, 5 V, or V 25°C 6 20 DD 5 V –5 V EN = 0 V 85°C 25 Negative supply 125°C 25 current µA I –55°C 22 SS Address inputs = 0 V, 5 V, or V 25°C 7 22 DD 12 V –12 V EN = 0 V 85°C 26 125°C 26 25°C 8 IDD disable EN = 5 V or VDD All µA –55°C to 125°C 20 Copyright © 2023 Texas Instruments Incorporated Submit Document Feedback 9 Product Folder Links: TMUX4051 TMUX4052 TMUX4053 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Table 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 ESD Ratings 7.3 Thermal Information: TMUX405x 7.4 Recommended Operating Conditions 7.5 Electrical Characteristics 7.6 AC Performance Characteristics 7.7 Timing Characteristics 7.8 Typical Characteristics 8 Parameter Measurement Information 8.1 On-Resistance 8.2 Off-Leakage Current 8.3 On-Leakage Current 8.4 Transition Time 8.5 Break-Before-Make 8.6 tON(EN) and tOFF(EN) 8.7 Propagation Delay 8.8 Charge Injection 8.9 Off Isolation 8.10 Crosstalk 8.11 Bandwidth 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Bidirectional Operation 9.3.2 Rail-to-Rail Operation 9.3.3 1.8 V Logic Compatible Inputs 9.3.4 Device Functional Modes 9.3.5 Truth Tables 10 Application and Implementation 10.1 Application Information 10.2 Typical Application 10.3 Design Requirements 10.4 Detailed Design Procedure 10.5 Application Curves 10.6 Power Supply Recommendations 10.7 Layout 10.7.1 Layout Guidelines 10.7.2 Layout Example 11 Device and Documentation Support 11.1 Documentation Support 11.1.1 Related Documentation 11.2 Receiving Notification of Documentation Updates 11.3 Support Resources 11.4 Trademarks 11.5 Electrostatic Discharge Caution 11.6 Glossary 12 Mechanical, Packaging, and Orderable Information Sheets and Views 4224642(B)-02_PKG_OUTLINE 4224642(B)-03_BOARD_LAYOUT 4224642(B)-04_STENCIL Sheets and Views 4224640-02_PKG_OULINE 4224640-03_BOARD_LAYOUT 4224640-04_STENCIL
