Absolute maximum. TL072, TL072A, TL072B. Absolute maximum ratings and operating conditions. Table 1: Absolute maximum ratings
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4
Absolute maximum
ratings and operating
TL072, TL072A, TL072B
conditions

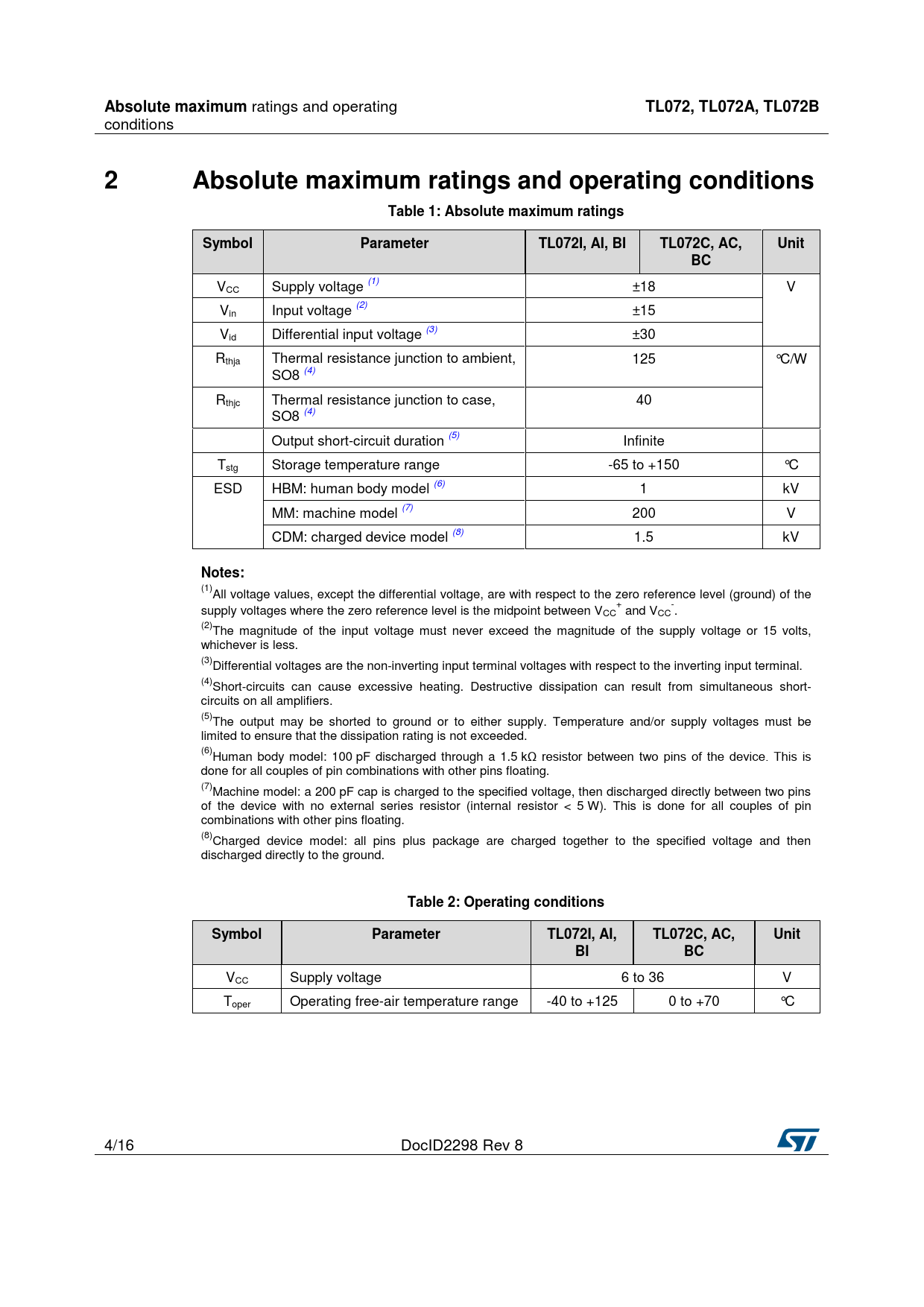

2 Absolute maximum ratings and operating conditions Table 1: Absolute maximum ratings Symbol Parameter TL072I, AI, BI TL072C, AC, Unit BC
VCC Supply voltage (1) ±18 V Vin Input voltage (2) ±15 Vid Differential input voltage (3) ±30 Rthja Thermal resistance junction to ambient, 125 °C/W SO8 (4) Rthjc Thermal resistance junction to case, 40 SO8 (4) Output short-circuit duration (5) Infinite Tstg Storage temperature range -65 to +150 °C ESD HBM: human body model (6) 1 kV MM: machine model (7) 200 V CDM: charged device model (8) 1.5 kV
Notes:
(1)All voltage values, except the differential voltage, are with respect to the zero reference level (ground) of the + - supply voltages where the zero reference level is the midpoint between VCC and VCC . (2)The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less. (3)Differential voltages are the non-inverting input terminal voltages with respect to the inverting input terminal. (4)Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous short- circuits on all amplifiers. (5)The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded. (6)Human body model: 100 pF discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of pin combinations with other pins floating. (7)Machine model: a 200 pF cap is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 W). This is done for all couples of pin combinations with other pins floating. (8)Charged device model: all pins plus package are charged together to the specified voltage and then discharged directly to the ground.
Table 2: Operating conditions Symbol Parameter TL072I, AI, TL072C, AC, Unit BI BC
VCC Supply voltage 6 to 36 V Toper Operating free-air temperature range -40 to +125 0 to +70 °C 4/16 DocID2298 Rev 8 Document Outline 1 Schematic diagram 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Parameter measurement information 5 Typical application 6 Package information 6.1 SO8 package information 7 Ordering information 8 Revision history
