Datasheet TL072, TL072A, TL072B (STMicroelectronics) - 6

ManufacturerSTMicroelectronics
DescriptionLow Noise JFET Dual Operational Amplifiers
Pages / Page16 / 6 — Electrical characteristics. TL072, TL072A, TL072B. Symbol. Parameter. …
File Format / SizePDF / 515 Kb
Document LanguageEnglish

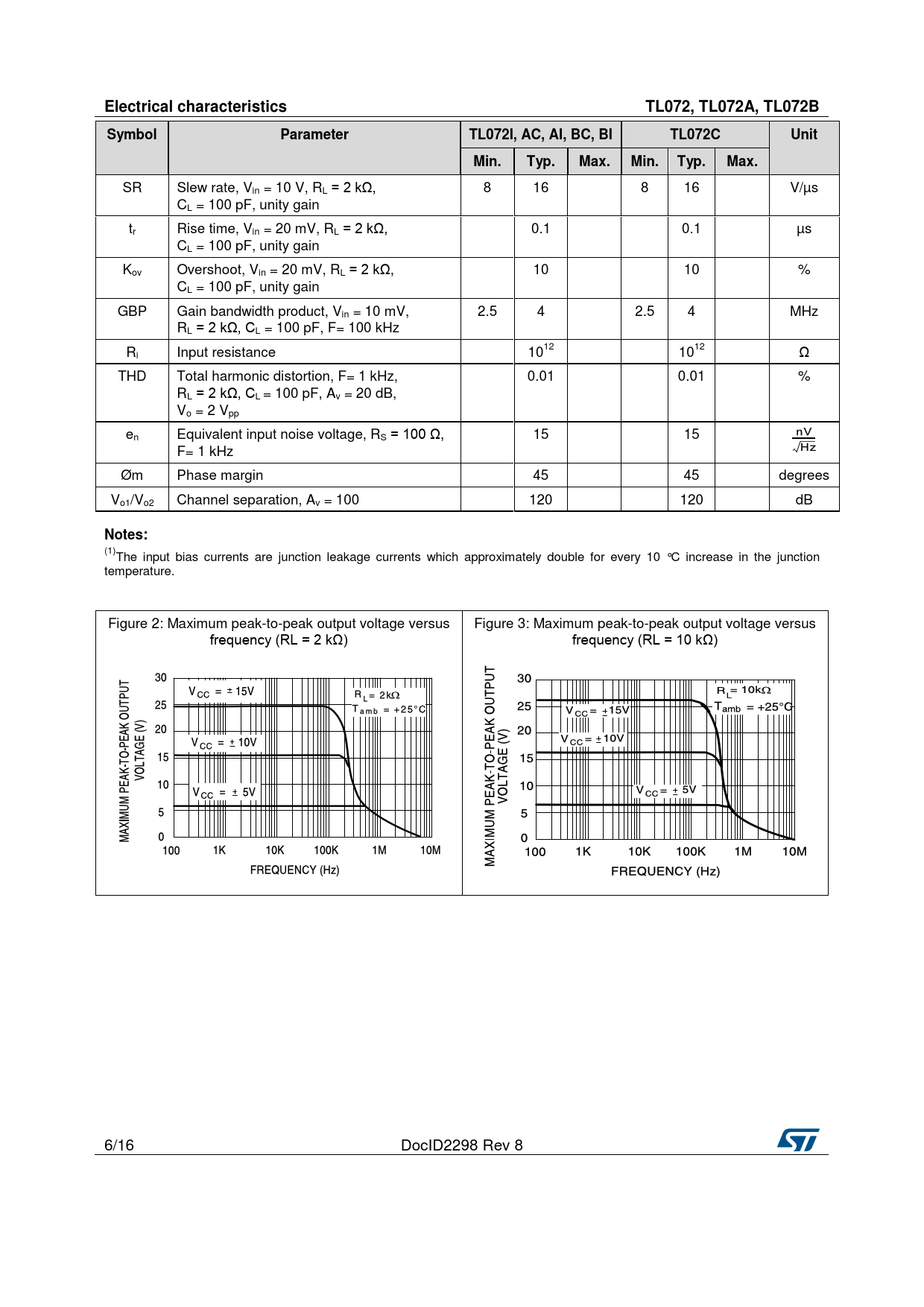

Electrical characteristics. TL072, TL072A, TL072B. Symbol. Parameter. TL072I, AC, AI, BC, BI. TL072C. Unit. Min. Typ. Max. Notes:

Electrical characteristics TL072, TL072A, TL072B Symbol Parameter TL072I, AC, AI, BC, BI TL072C Unit Min Typ Max Notes:

Model Line for this Datasheet

Text Version of Document

Electrical characteristics TL072, TL072A, TL072B Symbol Parameter TL072I, AC, AI, BC, BI TL072C Unit Min. Typ. Max. Min. Typ. Max.
SR Slew rate, Vin = 10 V, RL = 2 kΩ, 8 16 8 16 V/µs CL = 100 pF, unity gain tr Rise time, Vin = 20 mV, RL = 2 kΩ, 0.1 0.1 µs CL = 100 pF, unity gain Kov Overshoot, Vin = 20 mV, RL = 2 kΩ, 10 10 % CL = 100 pF, unity gain GBP Gain bandwidth product, Vin = 10 mV, 2.5 4 2.5 4 MHz RL = 2 kΩ, CL = 100 pF, F= 100 kHz Ri Input resistance 1012 1012 Ω THD Total harmonic distortion, F= 1 kHz, 0.01 0.01 % RL = 2 kΩ, CL = 100 pF, Av = 20 dB, Vo = 2 Vpp en Equivalent input noise voltage, RS = 100 Ω, 15 15 F= 1 kHz Øm Phase margin 45 45 degrees Vo1/Vo2 Channel separation, Av = 100 120 120 dB
Notes:
(1)The input bias currents are junction leakage currents which approximately double for every 10 °C increase in the junction temperature. Figure 2: Maximum peak-to-peak output voltage versus Figure 3: Maximum peak-to-peak output voltage versus frequency (RL = 2 kΩ) frequency (RL = 10 kΩ) 6/16 DocID2298 Rev 8 Document Outline 1 Schematic diagram 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Parameter measurement information 5 Typical application 6 Package information 6.1 SO8 package information 7 Ordering information 8 Revision history
