Datasheet CWD4850 (Sensata) - 5
| Manufacturer | Sensata |
| Description | Panel Mount Solid State Relay |
| Pages / Page | 7 / 5 — ORDERING OPTIONS. -10. Series. Control Voltage. AxxxxE:. Operating … |
| File Format / Size | PDF / 509 Kb |
| Document Language | English |

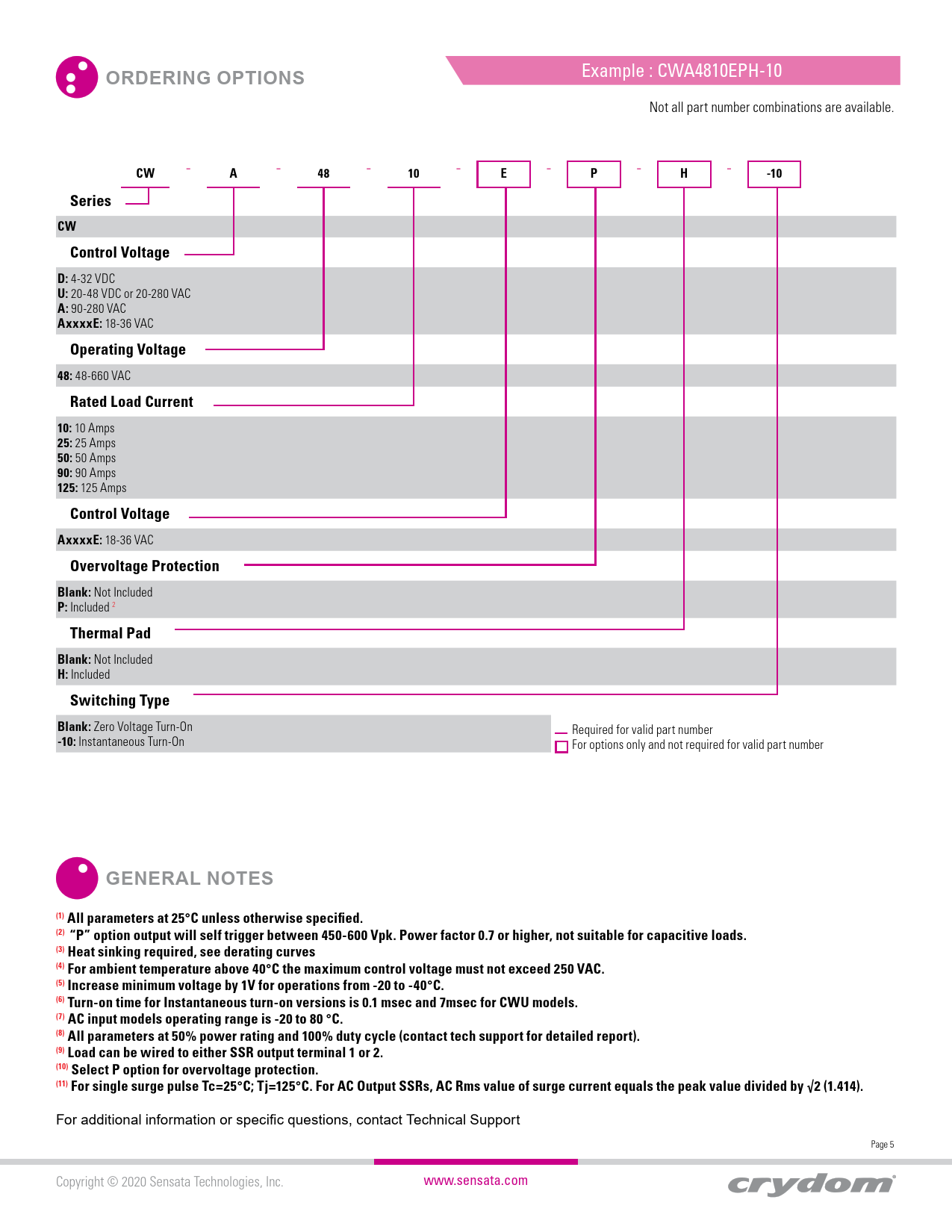

ORDERING OPTIONS. -10. Series. Control Voltage. AxxxxE:. Operating Voltage. 48:. Rated Load Current. 10:. 25:. 50:. 90:. 125:
Model Line for this Datasheet
Text Version of Document
ORDERING OPTIONS
Example : CWA4810EPH-10 Not all part number combinations are available.
CW - A - 48 - 10 - E - P - H - -10 Series CW Control Voltage D:
4-32 VDC
U:
20-48 VDC or 20-280 VAC
A:
90-280 VAC
AxxxxE:
18-36 VAC
Operating Voltage 48:
48-660 VAC
Rated Load Current 10:
10 Amps
25:
25 Amps
50:
50 Amps
90:
90 Amps
125:
125 Amps
Control Voltage AxxxxE:
18-36 VAC
Overvoltage Protection Blank:
Not Included
P:
Included 2
Thermal Pad Blank:
Not Included
H:
Included
Switching Type Blank:
Zero Voltage Turn-On Required for valid part number
-10:
Instantaneous Turn-On For options only and not required for valid part number
GENERAL NOTES (1) All parameters at 25°C unless otherwise specified. (2) “P” option output will self trigger between 450-600 Vpk. Power factor 0.7 or higher, not suitable for capacitive loads. (3) Heat sinking required, see derating curves (4) For ambient temperature above 40°C the maximum control voltage must not exceed 250 VAC. (5) Increase minimum voltage by 1V for operations from -20 to -40°C. (6) Turn-on time for Instantaneous turn-on versions is 0.1 msec and 7msec for CWU models. (7) AC input models operating range is -20 to 80 °C. (8) All parameters at 50% power rating and 100% duty cycle (contact tech support for detailed report). (9) Load can be wired to either SSR output terminal 1 or 2. (10) Select P option for overvoltage protection. (11) For single surge pulse Tc=25°C; Tj=125°C. For AC Output SSRs, AC Rms value of surge current equals the peak value divided by √2 (1.414).
For additional information or specific questions, contact Technical Support Page 5 Copyright © 2020 Sensata Technologies, Inc. www.sensata.com
