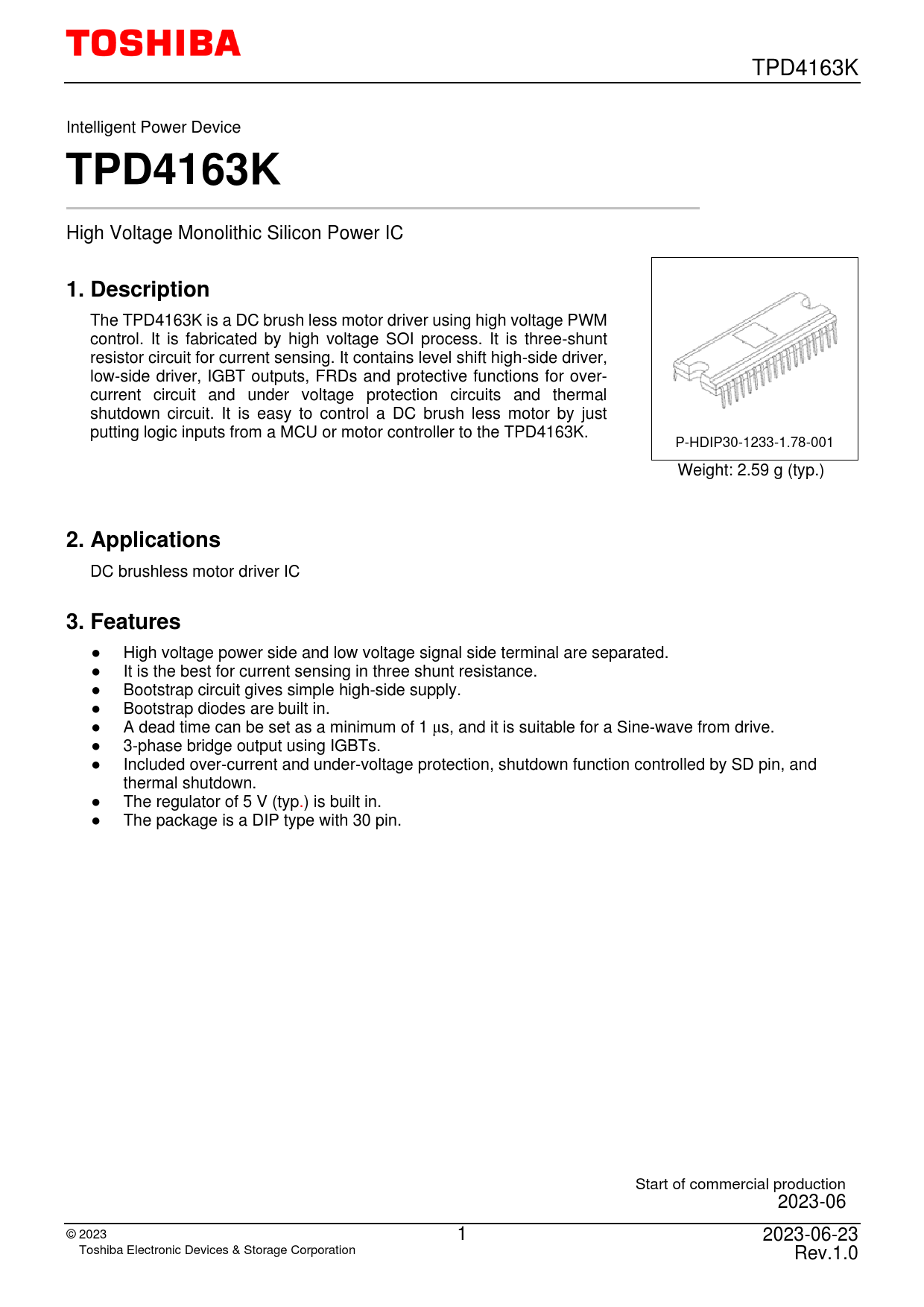

TPD4163K Intelligent Power Device
TPD4163K
High Voltage Monolithic Silicon Power IC
1. Description
The TPD4163K is a DC brush less motor driver using high voltage PWM control. It is fabricated by high voltage SOI process. It is three-shunt resistor circuit for current sensing. It contains level shift high-side driver, low-side driver, IGBT outputs, FRDs and protective functions for over- current circuit and under voltage protection circuits and thermal shutdown circuit. It is easy to control a DC brush less motor by just putting logic inputs from a MCU or motor controller to the TPD4163K. P-HDIP30-1233-1.78-001 Weight: 2.59 g (typ.)
2. Applications
DC brushless motor driver IC
3. Features
● High voltage power side and low voltage signal side terminal are separated. ● It is the best for current sensing in three shunt resistance. ● Bootstrap circuit gives simple high-side supply. ● Bootstrap diodes are built in. ● A dead time can be set as a minimum of 1 μs, and it is suitable for a Sine-wave from drive. ● 3-phase bridge output using IGBTs. ● Included over-current and under-voltage protection, shutdown function controlled by SD pin, and thermal shutdown. ● The regulator of 5 V (typ.) is built in. ● The package is a DIP type with 30 pin. Start of commercial production 2023-06 © 20 23 1 2023-06-23 Toshiba Electronic Devices & Storage Corporation Rev.1.0
