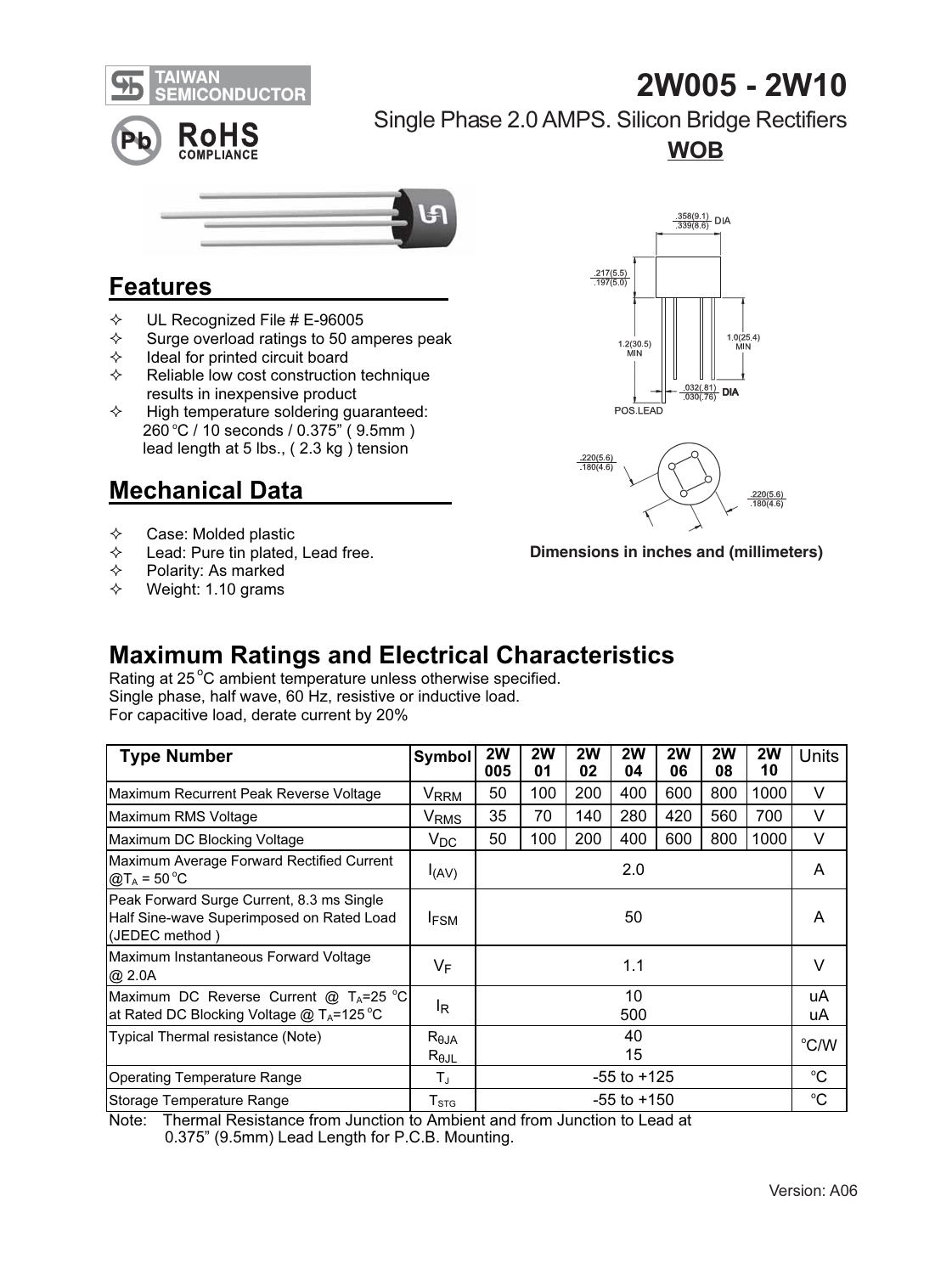

2W005 - 2W10 Single Phase 2.0 AMPS. Silicon Bridge Rectifiers WOB Features UL Recognized File # E-96005 Surge overload ratings to 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension Mechanical Data Case: Molded plastic Lead: Pure tin plated, Lead free. Dimensions in inches and (millimeters) Polarity: As marked Weight: 1.10 grams Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% Type Number Symbol 2W 2W 2W 2W 2W 2W 2W Units 005 01 02 04 06 08 10 Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I @T (AV) 2.0 A A = 50 oC Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load IFSM 50 A (JEDEC method ) Maximum Instantaneous Forward Voltage V @ 2.0A F 1.1 V Maximum DC Reverse Current @ TA=25 oC 10 uA I at Rated DC Blocking Voltage @ T R A=125 oC 500 uA Typical Thermal resistance (Note) RθJA 40 oC/W RθJL 15 Operating Temperature Range TJ -55 to +125 oC Storage Temperature Range TSTG -55 to +150 oC Note: Thermal Resistance from Junction to Ambient and from Junction to Lead at 0.375” (9.5mm) Lead Length for P.C.B. Mounting. Version: A06
