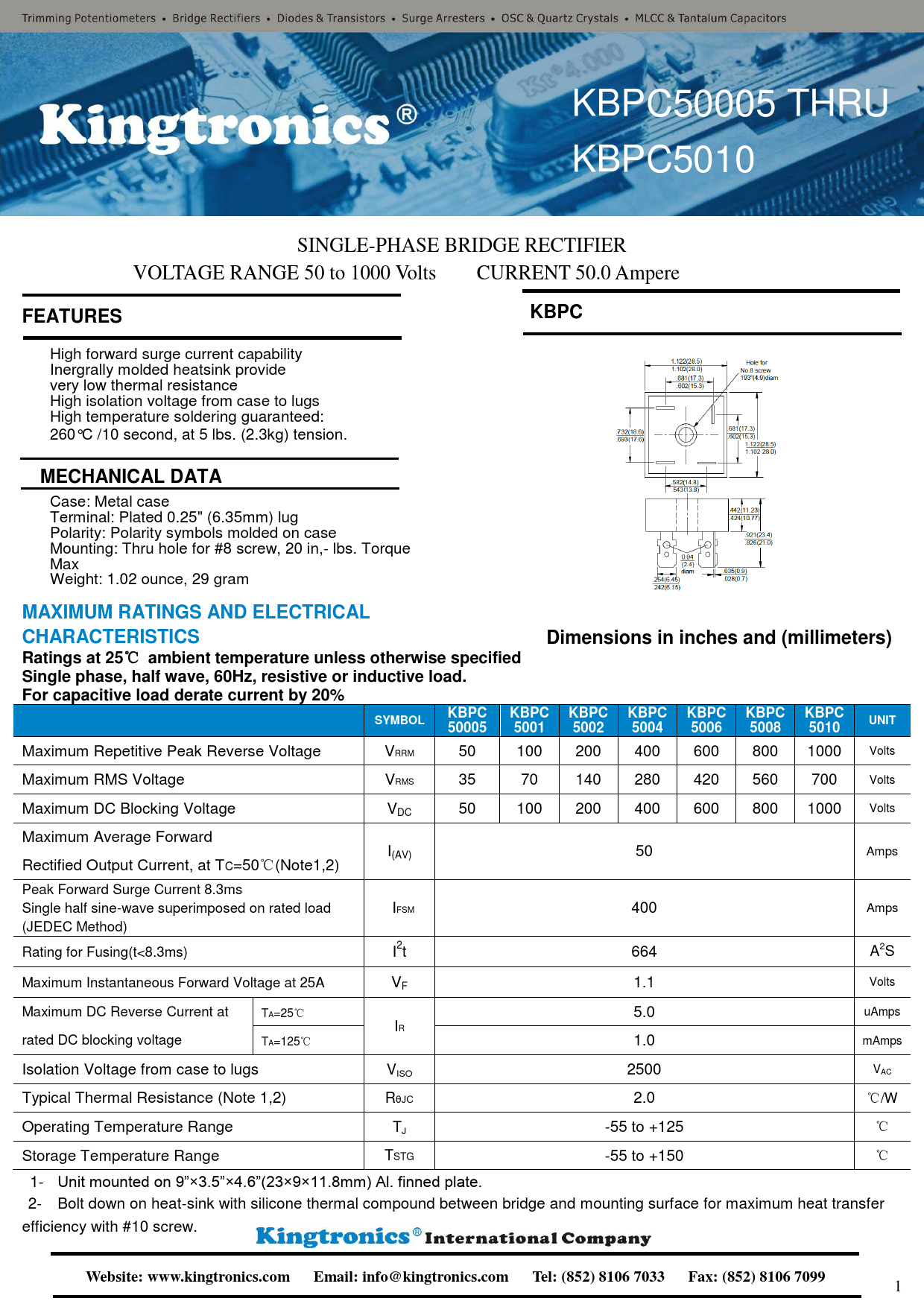

KBPC50005 THRU. KBPC5010. SINGLE-PHASE BRIDGE RECTIFIER. VOLTAGE RANGE 50 to 1000 Volts. CURRENT 50.0 Ampere. KBPC FEATURES
Model Line for this Datasheet
Text Version of Document
KBPC50005 THRU
KBPC5010
SINGLE-PHASE BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts
CURRENT 50.0 Ampere
KBPC FEATURES
High forward surge current capability
Inergrally molded heatsink provide
very low thermal resistance
High isolation voltage from case to lugs
High temperature soldering guaranteed:
260°C /10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA
Case: Metal case
Terminal: Plated 0.25" (6.35mm) lug
Polarity: Polarity symbols molded on case
Mounting: Thru hole for #8 screw, 20 in,-lbs. Torque
Max
Weight: 1.02 ounce, 29 gram MAXIMUM RATINGS AND ELECTRICAL
CHARACTERISTICS Dimensions in inches and (millimeters) Ratings at 25℃ ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load derate current by 20%
SYMBOL KBPC
50005 KBPC
5001 KBPC
5002 KBPC
5004 KBPC
5006 KBPC
5008 KBPC
5010 UNIT Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 Volts Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 Volts Maximum Average Forward I(AV) 50 Amps Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method) IFSM 400 Amps Rating for Fusing(t
