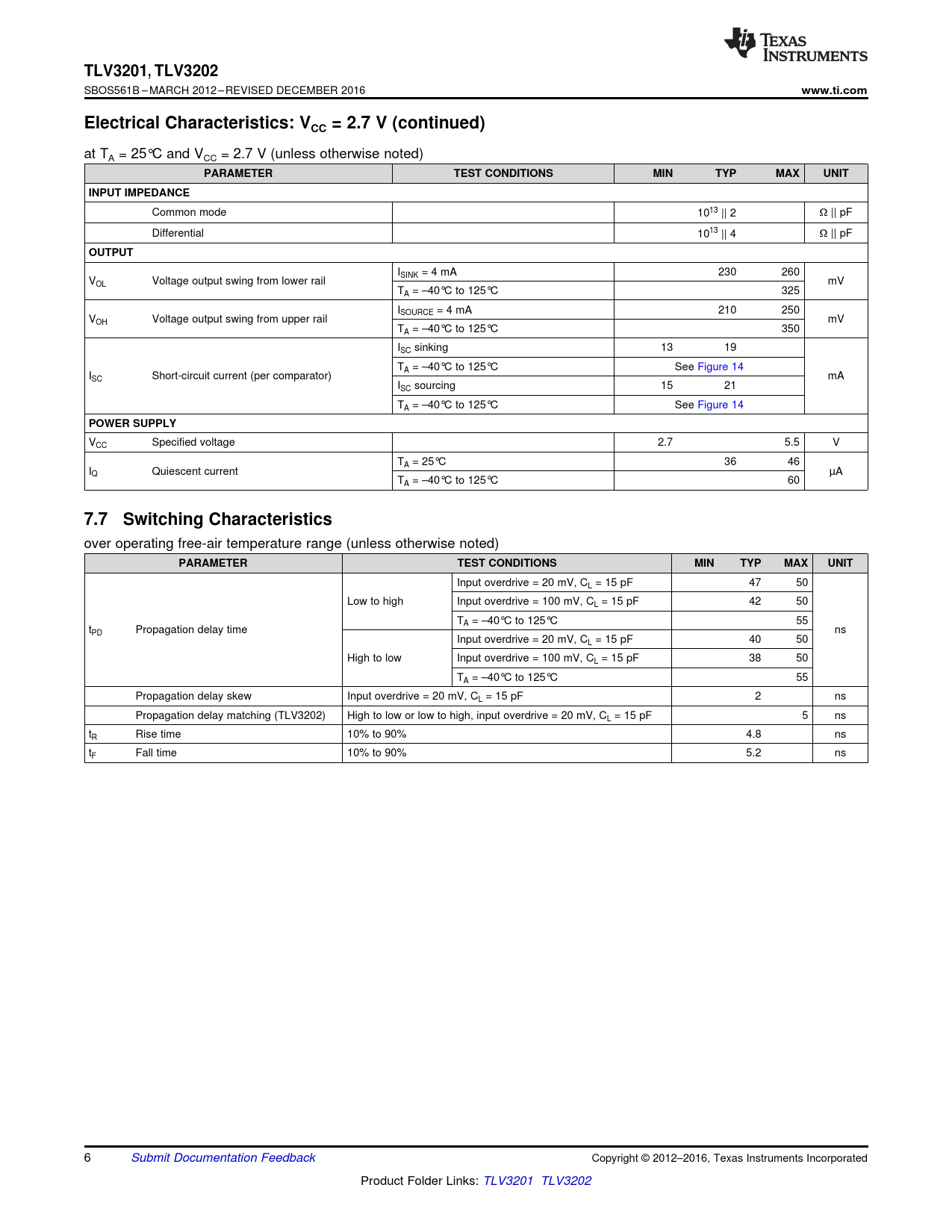

TLV3201,. TLV3202. www.ti.com. Electrical Characteristics: VCC = 2.7 V (continued). PARAMETER. TEST CONDITIONS. MIN. TYP. MAX. UNIT
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 9
TLV3201, TLV3202
SBOS561B – MARCH 2012 – REVISED DECEMBER 2016
www.ti.com Electrical Characteristics: VCC = 2.7 V (continued)
at TA = 25°C and VCC = 2.7 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT INPUT IMPEDANCE
Common mode 1013 || 2 Ω || pF Differential 1013 || 4 Ω || pF
OUTPUT
ISINK = 4 mA 230 260 VOL Voltage output swing from lower rail mV TA = –40°C to 125°C 325 ISOURCE = 4 mA 210 250 VOH Voltage output swing from upper rail mV TA = –40°C to 125°C 350 ISC sinking 13 19 TA = –40°C to 125°C See Figure 14 ISC Short-circuit current (per comparator) mA ISC sourcing 15 21 TA = –40°C to 125°C See Figure 14
POWER SUPPLY
VCC Specified voltage 2.7 5.5 V TA = 25°C 36 46 IQ Quiescent current µA TA = –40°C to 125°C 60
7.7 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Input overdrive = 20 mV, CL = 15 pF 47 50 Low to high Input overdrive = 100 mV, CL = 15 pF 42 50 TA = –40°C to 125°C 55 tPD Propagation delay time ns Input overdrive = 20 mV, CL = 15 pF 40 50 High to low Input overdrive = 100 mV, CL = 15 pF 38 50 TA = –40°C to 125°C 55 Propagation delay skew Input overdrive = 20 mV, CL = 15 pF 2 ns Propagation delay matching (TLV3202) High to low or low to high, input overdrive = 20 mV, CL = 15 pF 5 ns tR Rise time 10% to 90% 4.8 ns tF Fall time 10% to 90% 5.2 ns 6 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated Product Folder Links: TLV3201 TLV3202 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Table 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 ESD Ratings 7.3 Recommended Operating Conditions 7.4 Thermal Information 7.5 Electrical Characteristics: VCC = 5 V 7.6 Electrical Characteristics: VCC = 2.7 V 7.7 Switching Characteristics 7.8 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Operating Voltage 8.3.2 Input Overvoltage Protection 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.1.1 Comparator Inputs 9.1.2 External Hysteresis 9.1.2.1 Inverting Comparator with Hysteresis 9.1.2.2 Noninverting Comparator With Hysteresis 9.1.3 Capacitive Loads 9.2 Typical Applications 9.2.1 TLV3201 Configured as an AC-Coupled Comparator 9.2.1.1 Design Requirements 9.2.1.2 Detailed Design Procedure 9.2.1.3 Application Curve 9.2.2 TLV3201 and OPA320 Configured as a Fast-Response Output Current Monitor 9.2.3 TLV3201 and TMP20 Configured as a Precision Analog Temperature Switch 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 12 Device and Documentation Support 12.1 Device Support 12.1.1 Development Support 12.1.1.1 TINA-TI™ (Free Software Download) 12.1.1.2 Universal Op Amp EVM 12.1.1.3 TI Precision Designs 12.1.1.4 WEBENCH Filter Designer 12.2 Documentation Support 12.2.1 Related Documentation 12.3 Related Links 12.4 Receiving Notification of Documentation Updates 12.5 Community Resource 12.6 Trademarks 12.7 Electrostatic Discharge Caution 12.8 Glossary 13 Mechanical, Packaging, and Orderable Information
