Datasheet MAX20480 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Four- to Seven-Input Automotive Power- System Monitor Family |
| Pages / Page | 41 / 9 — MAX20480B. MAX20480C |
| File Format / Size | PDF / 575 Kb |
| Document Language | English |
MAX20480B. MAX20480C
Model Line for this Datasheet
Text Version of Document
MAX20480 Four- to Seven-Input Automotive Power-System Monitor Family
MAX20480B

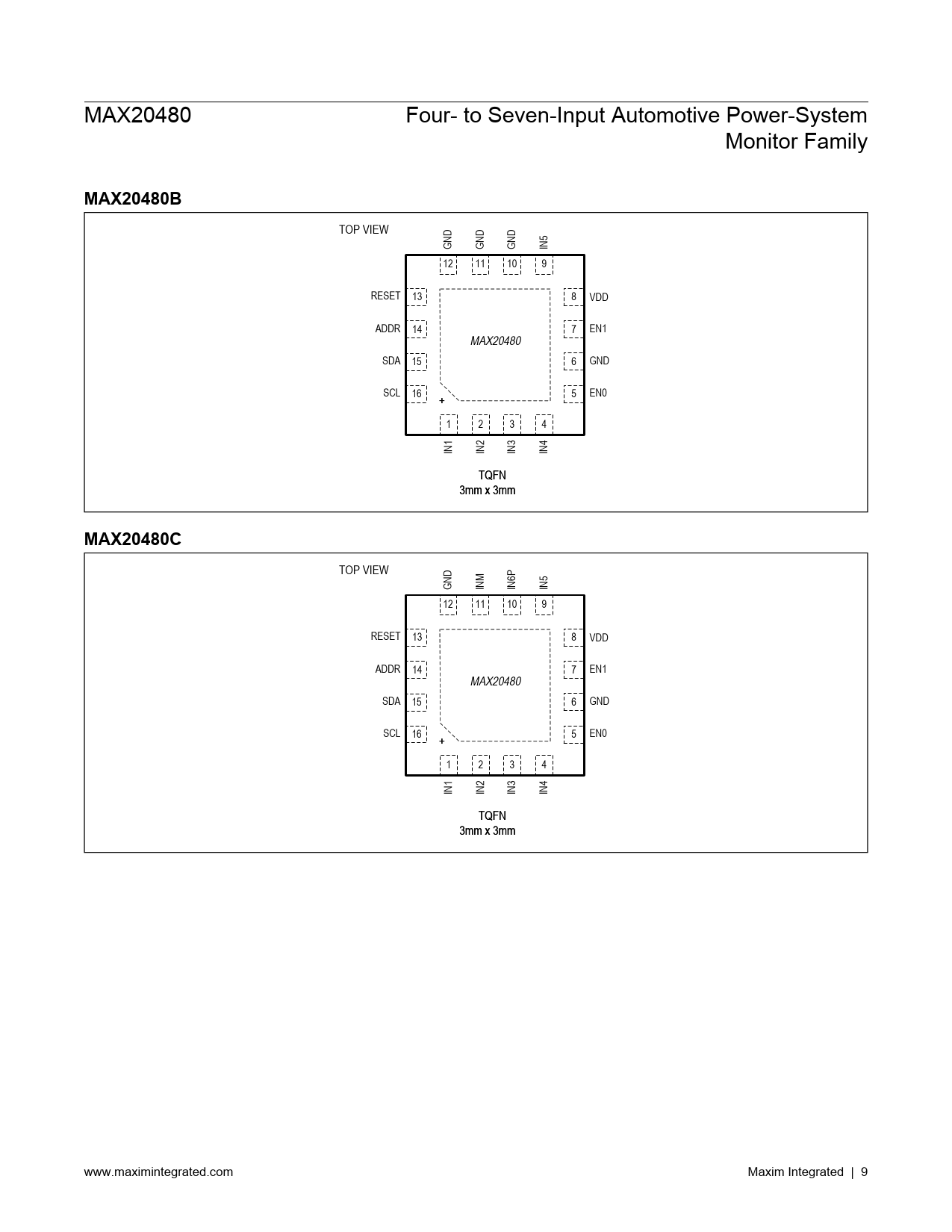

TOP VIEW GND GND GND IN5 12 11 10 9 RESET 13 8 VDD ADDR 14 7 EN1 MAX20480 SDA 15 6 GND SCL 16 5 EN0 + 1 2 3 4 IN1 IN2 IN3 IN4 TQFN 3mm x 3mm
