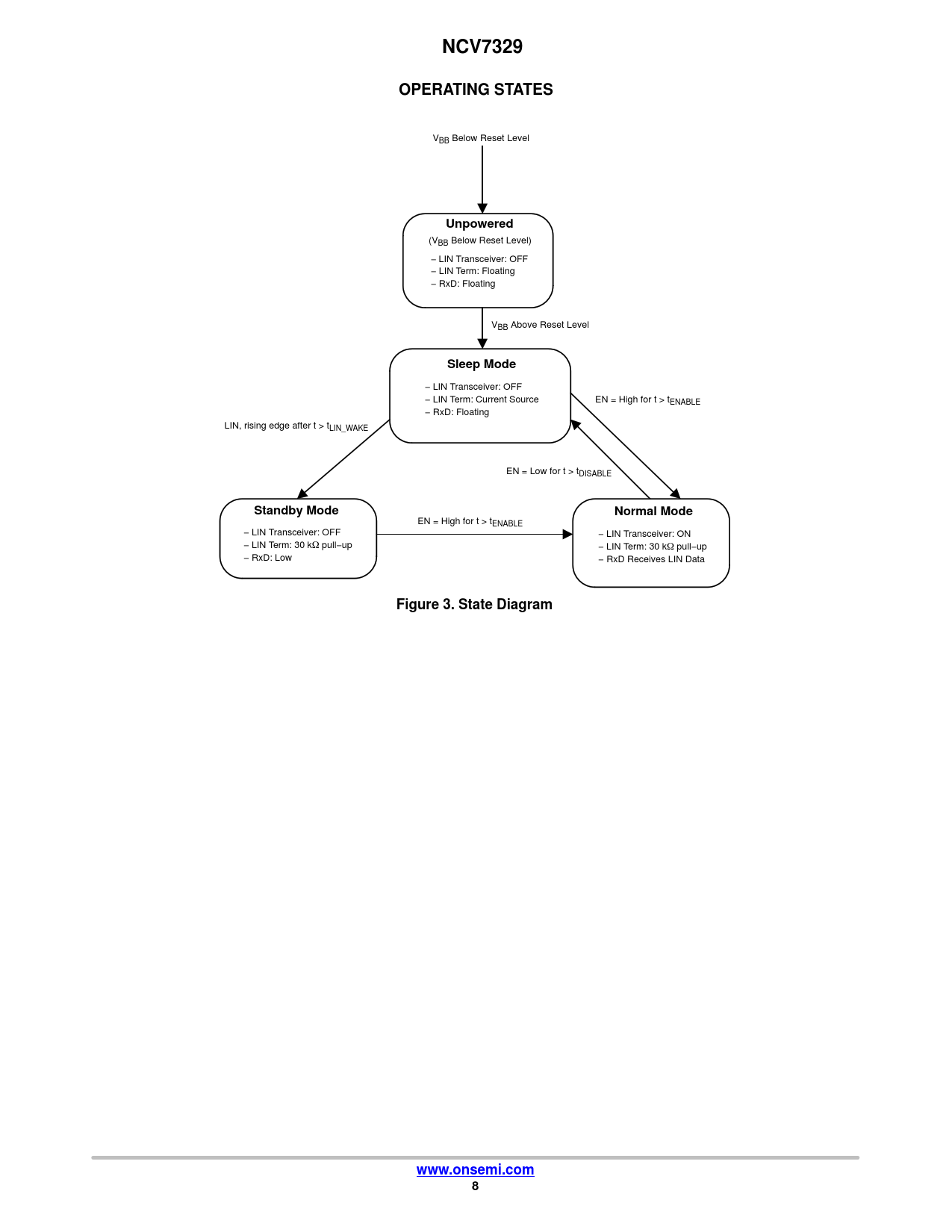

NCV7329. OPERATING STATES. Unpowered. Sleep Mode. Standby Mode. Normal Mode. Figure 3. State Diagram. www.onsemi.com
Model Line for this Datasheet
Text Version of Document
NCV7329 OPERATING STATES
VBB Below Reset Level
Unpowered
(VBB Below Reset Level) − LIN Transceiver: OFF − LIN Term: Floating − RxD: Floating VBB Above Reset Level
Sleep Mode
− LIN Transceiver: OFF − LIN Term: Current Source EN = High for t > tENABLE − RxD: Floating LIN, rising edge after t > tLIN_WAKE EN = Low for t > tDISABLE
Standby Mode Normal Mode
EN = High for t > tENABLE − LIN Transceiver: OFF − LIN Transceiver: ON − LIN Term: 30 kW pull−up − LIN Term: 30 kW pull−up − RxD: Low − RxD Receives LIN Data
Figure 3. State Diagram www.onsemi.com 8
