Datasheet BC817 (Nexperia) - 9
| Manufacturer | Nexperia |
| Description | 45 V, 500 mA NPN General-Purpose Transistors |
| Pages / Page | 13 / 9 — Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 11. … |
| Revision | 30062022 |
| File Format / Size | PDF / 316 Kb |
| Document Language | English |
Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 11. Package outline
Model Line for this Datasheet
Text Version of Document

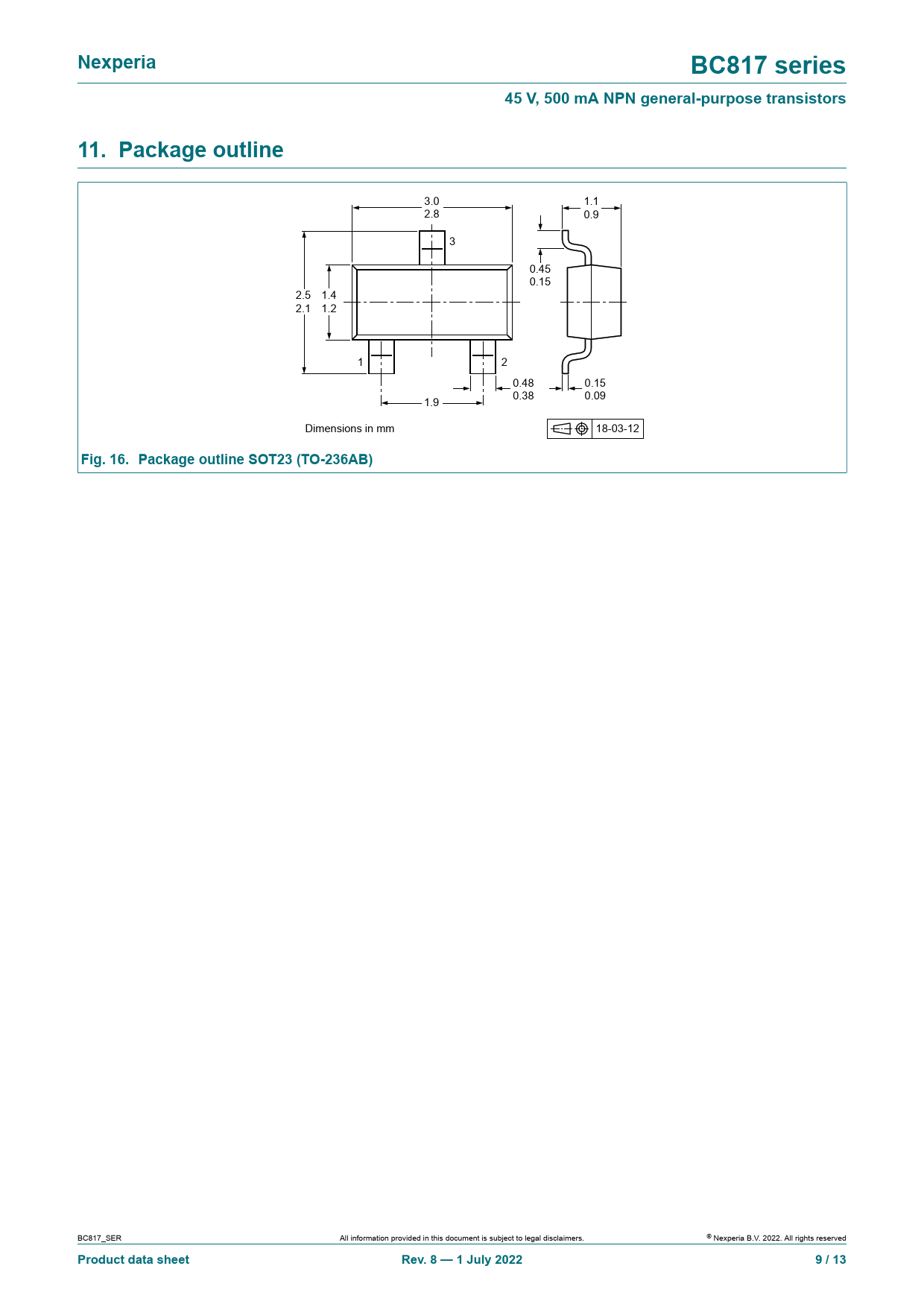

Nexperia BC817 series 45 V, 500 mA NPN general-purpose transistors 11. Package outline
3.0 1.1 2.8 0.9 3 0.45 0.15 2.5 1.4 2.1 1.2 1 2 0.48 0.15 1.9 0.38 0.09 Dimensions in mm 18-03-12
Fig. 16. Package outline SOT23 (TO-236AB)
BC817_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 9 / 13
