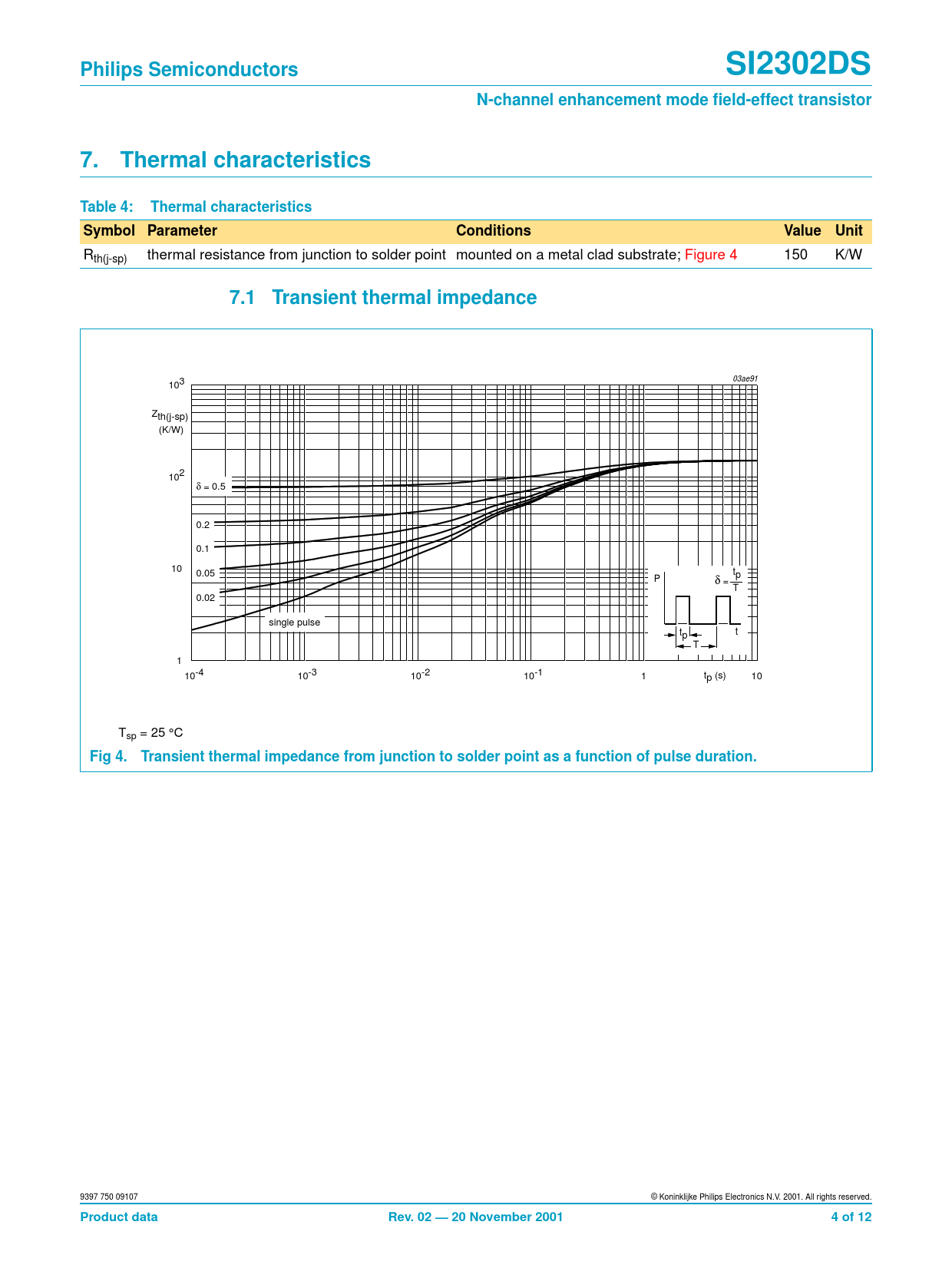

Philips Semiconductors SI2302DS N-channel enhancement mode field-effect transistor 7. Thermal characteristics Table 4: Thermal characteristics Symbol Parameter Conditions Value Unit
Rth(j-sp) thermal resistance from junction to solder point mounted on a metal clad substrate; Figure 4 150 K/W
7.1 Transient thermal impedance
03ae91 103 Zth(j-sp) (K/W) 102 δ = 0.5 0.2 0.1 10 0.05 tp P δ = T 0.02 single pulse tp t T 1 10-4 10-3 10-2 10-1 1 t 10 p (s) Tsp = 25 °C
Fig 4. Transient thermal impedance from junction to solder point as a function of pulse duration.
9397 750 09107 © Koninklijke Philips Electronics N.V. 2001. All rights reserved.
Product data Rev. 02 — 20 November 2001 4 of 12
