2SJ160, 2SJ161, 2SJ162 Package Dimensions
Model Line for this Datasheet
Text Version of Document

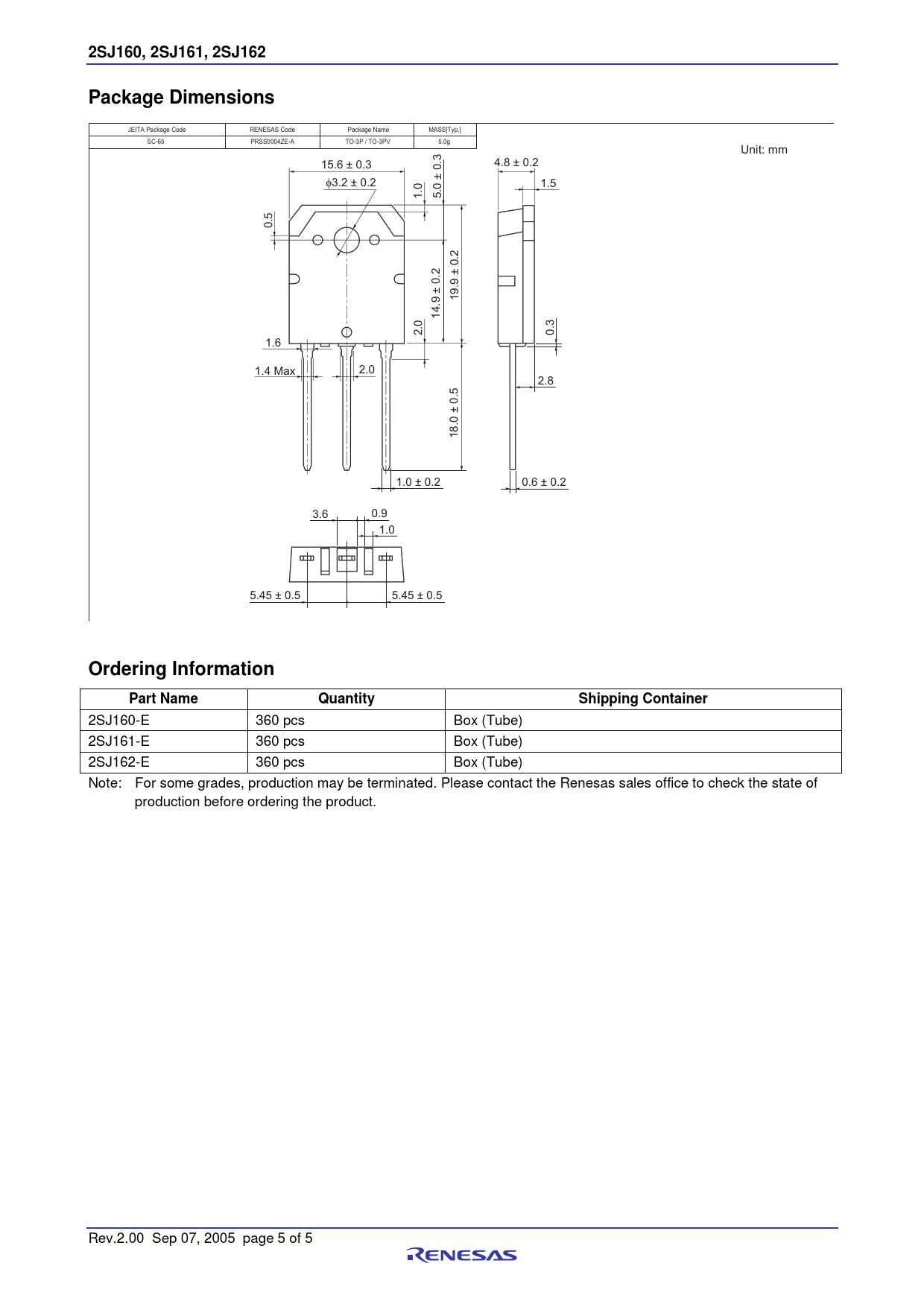

2SJ160, 2SJ161, 2SJ162 Package Dimensions
JEITA Package Code RENESAS Code Package Name MASS[Typ.] SC-65 PRSS0004ZE-A TO-3P / TO-3PV 5.0g 4.8 ± 0.2
1.5 0.3 19.9 ± 0.2 2.0 14.9 ± 0.2 0.5 1.0 φ3.2 ± 0.2 Unit: mm 5.0 ± 0.3 15.6 ± 0.3 1.6
2.0 1.4 Max 18.0 ± 0.5 2.8 1.0 ± 0.2
3.6 0.6 ± 0.2 0.9
1.0 5.45 ± 0.5 5.45 ± 0.5 Ordering Information
Part Name
2SJ160-E
2SJ161-E Quantity
360 pcs
360 pcs Shipping Container
Box (Tube)
Box (Tube) 2SJ162-E
360 pcs
Box (Tube)
Note: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of
production before ordering the product. Rev.2.00 Sep 07, 2005 page 5 of 5
