Datasheet 2N7077 (Inchange Semiconductor) - 2
| Manufacturer | Inchange Semiconductor |
| Description | N-Channel MOSFET Transistor |
| Pages / Page | 2 / 2 — isc N-Channel MOSFET Transistor. 2N7077. ELECTRICAL CHARACTERISTICS. … |
| File Format / Size | PDF / 308 Kb |
| Document Language | English |

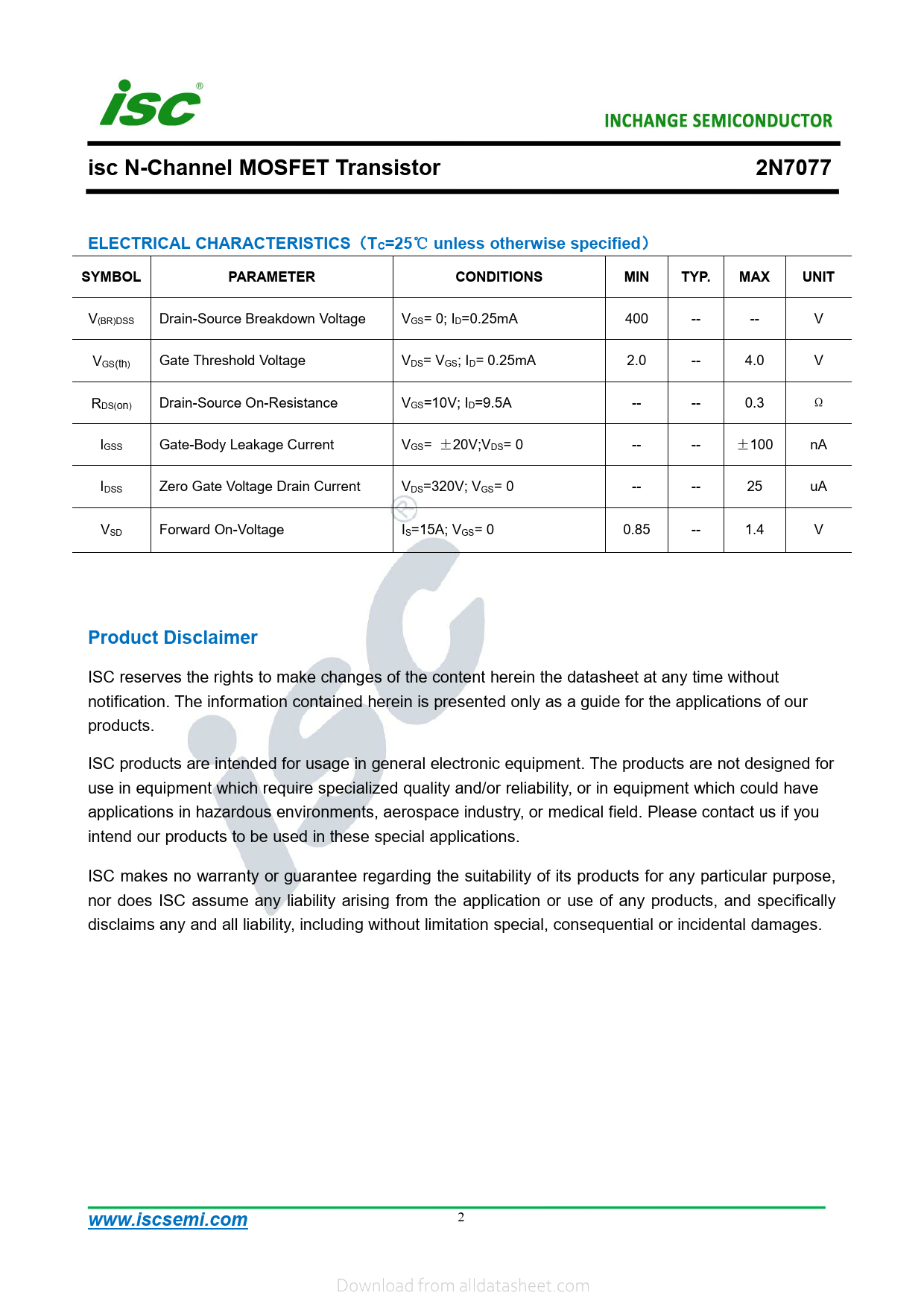

isc N-Channel MOSFET Transistor. 2N7077. ELECTRICAL CHARACTERISTICS. TC=25. unless otherwise specified. SYMBOL. PARAMETER. CONDITIONS
Model Line for this Datasheet
Text Version of Document
isc N-Channel MOSFET Transistor 2N7077 ELECTRICAL CHARACTERISTICS
（
TC=25
℃
unless otherwise specified
）
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V(BR)DSS Drain-Source Breakdown Voltage VGS= 0; ID=0.25mA 400 -- -- V VGS(th) Gate Threshold Voltage VDS= VGS; ID= 0.25mA 2.0 -- 4.0 V RDS(on) Drain-Source On-Resistance VGS=10V; ID=9.5A -- -- 0.3 Ω IGSS Gate-Body Leakage Current VGS= ±20V;VDS= 0 -- -- ±100 nA IDSS Zero Gate Voltage Drain Current VDS=320V; VGS= 0 -- -- 25 uA VSD Forward On-Voltage IS=15A; VGS= 0 0.85 -- 1.4 V
