Datasheet MMBT2369A (ON Semiconductor) - 7
| Manufacturer | ON Semiconductor |
| Description | NPN Switching Transistor |
| Pages / Page | 8 / 7 — MMBT23. Physical Dimensions. 69A. — NPN Sw. itching T. ransistor. Figure … |
| File Format / Size | PDF / 610 Kb |
| Document Language | English |

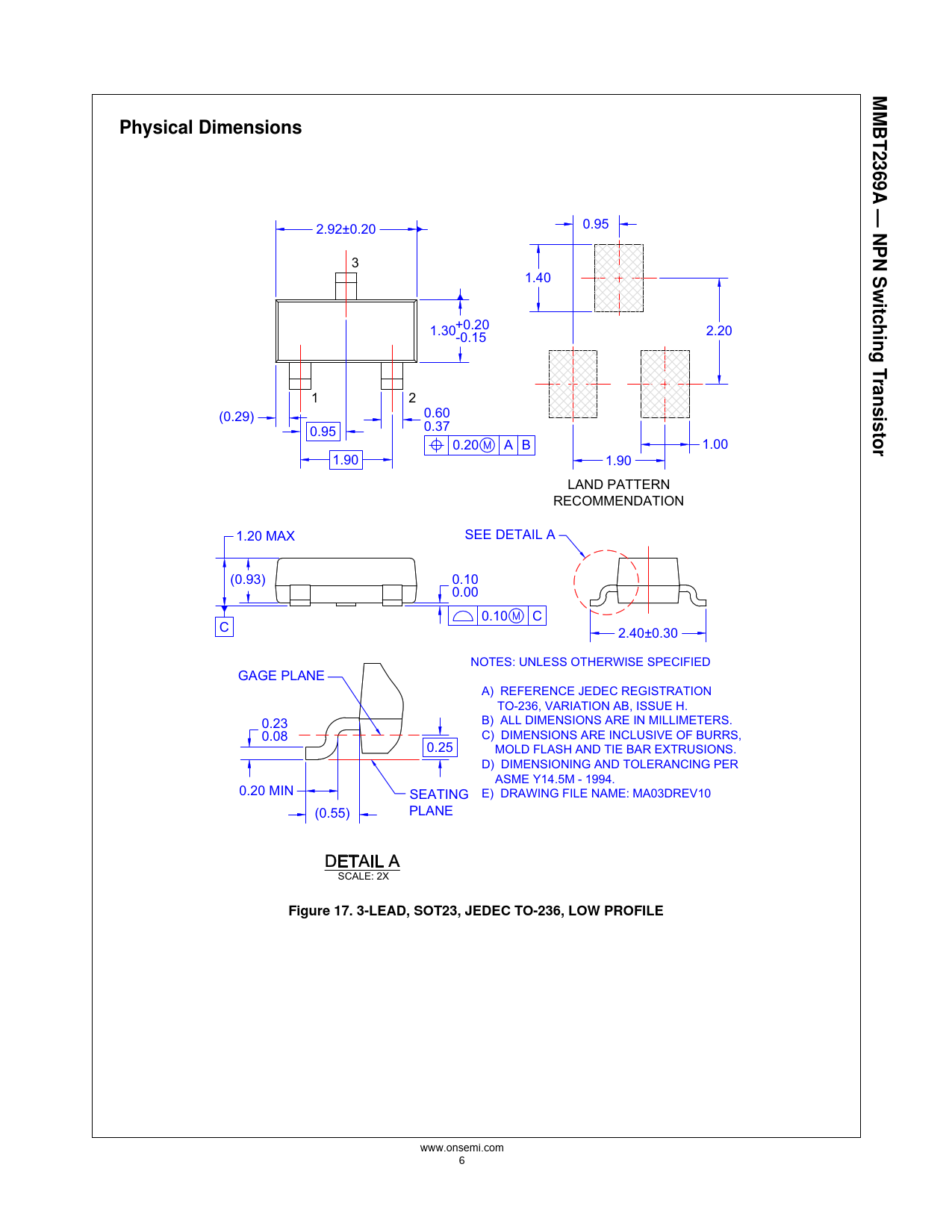

MMBT23. Physical Dimensions. 69A. — NPN Sw. itching T. ransistor. Figure 17. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE
Model Line for this Datasheet
Text Version of Document
MMBT23 Physical Dimensions 69A — NPN Sw
2.92±0.20 0.95 3 1.40
itching T
+0.20 1.30 2.20 -0.15
ransistor
1 2 0.60 (0.29) 0.37 0.95 0.20 A B 1.00 1.90 1.90 LAND PATTERN RECOMMENDATION 1.20 MAX SEE DETAIL A (0.93) 0.10 0.00 0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE A) REFERENCE JEDEC REGISTRATION TO-236, VARIATION AB, ISSUE H. B) ALL DIMENSIONS ARE IN MILLIMETERS. 0.23 0.08 C) DIMENSIONS ARE INCLUSIVE OF BURRS, 0.25 MOLD FLASH AND TIE BAR EXTRUSIONS. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994. 0.20 MIN SEATING E) DRAWING FILE NAME: MA03DREV10 (0.55) PLANE SCALE: 2X
Figure 17. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE
www.onsemi.com 6
