| Manufacturer | NXP |
| Description | 1 W BTL Mono Audio Amplifier With DC Volume Control |
| Pages / Page | 14 / 5 — THERMAL RESISTANCE. SYMBOL. PARAMETER. Notes to the thermal resistance |
| File Format / Size | PDF / 298 Kb |
| Document Language | English |
THERMAL RESISTANCE. SYMBOL. PARAMETER. Notes to the thermal resistance
Model Line for this Datasheet
Text Version of Document

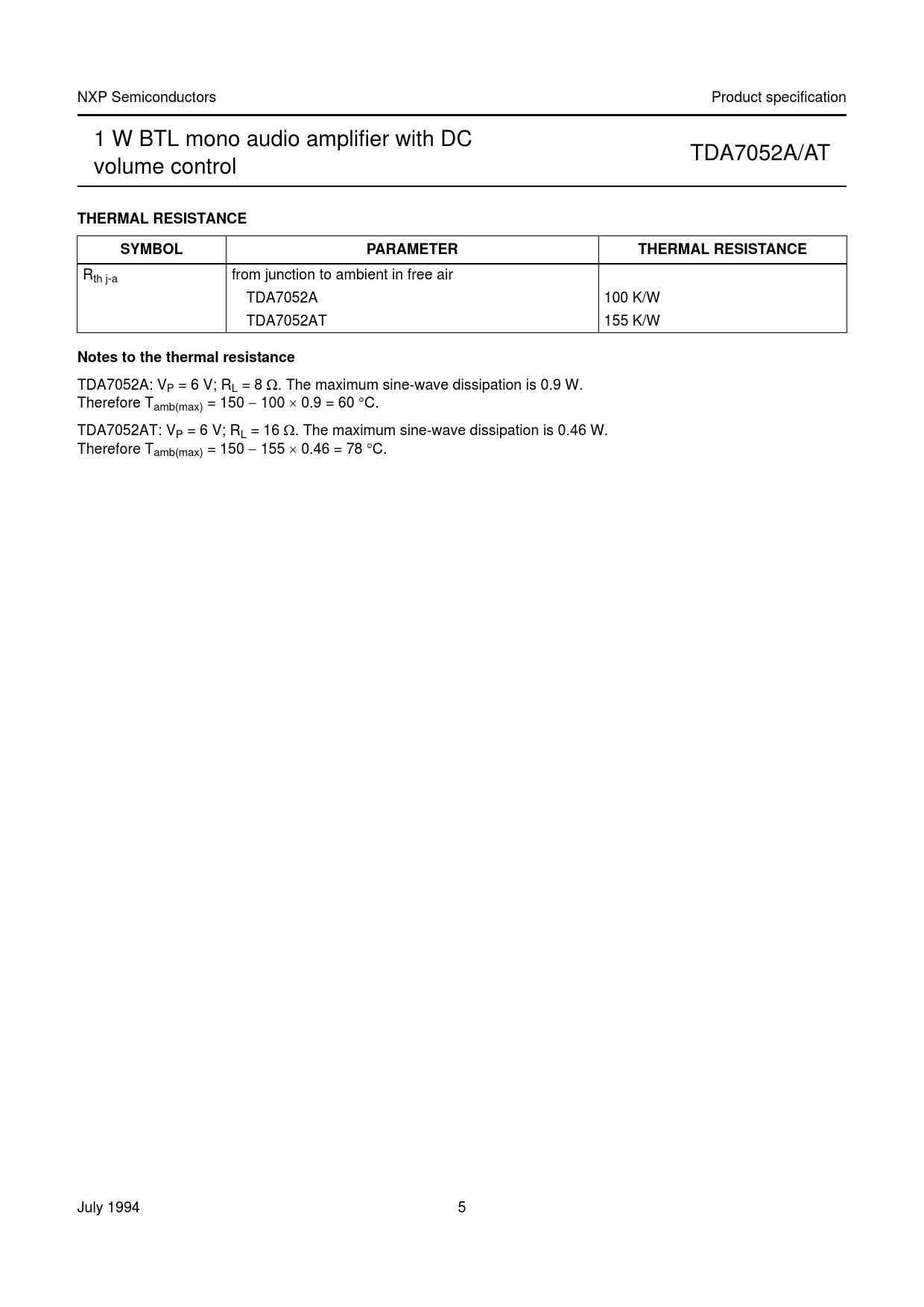

NXP Semiconductors Product specification 1 W BTL mono audio amplifier with DC TDA7052A/AT volume control
THERMAL RESISTANCE SYMBOL PARAMETER THERMAL RESISTANCE
Rth j-a from junction to ambient in free air TDA7052A 100 K/W TDA7052AT 155 K/W
Notes to the thermal resistance
TDA7052A: VP = 6 V; RL = 8 Ω. The maximum sine-wave dissipation is 0.9 W. Therefore Tamb(max) = 150 − 100 × 0.9 = 60 °C. TDA7052AT: VP = 6 V; RL = 16 Ω. The maximum sine-wave dissipation is 0.46 W. Therefore Tamb(max) = 150 − 155 × 0.46 = 78 °C. July 1994 5 Document Outline Features General description Missing Current Limiter (MCL) Quick reference data Ordering information Pinning Functional description Limiting values Thermal resistance Characteristics Application information Package outlines Soldering Introduction DIP SO Data sheet status Disclaimers
THERMAL RESISTANCE SYMBOL PARAMETER THERMAL RESISTANCE
Rth j-a from junction to ambient in free air TDA7052A 100 K/W TDA7052AT 155 K/W
Notes to the thermal resistance
TDA7052A: VP = 6 V; RL = 8 Ω. The maximum sine-wave dissipation is 0.9 W. Therefore Tamb(max) = 150 − 100 × 0.9 = 60 °C. TDA7052AT: VP = 6 V; RL = 16 Ω. The maximum sine-wave dissipation is 0.46 W. Therefore Tamb(max) = 150 − 155 × 0.46 = 78 °C. July 1994 5 Document Outline Features General description Missing Current Limiter (MCL) Quick reference data Ordering information Pinning Functional description Limiting values Thermal resistance Characteristics Application information Package outlines Soldering Introduction DIP SO Data sheet status Disclaimers
