Datasheet TDA6107AJF (Philips) - 3
| Manufacturer | Philips |
| Description | Triple Video Output Amplifier |
| Pages / Page | 16 / 3 — Philips Semiconductors. TDA6107AJF. Triple video output amplifier. … |
| File Format / Size | PDF / 97 Kb |
| Document Language | English |

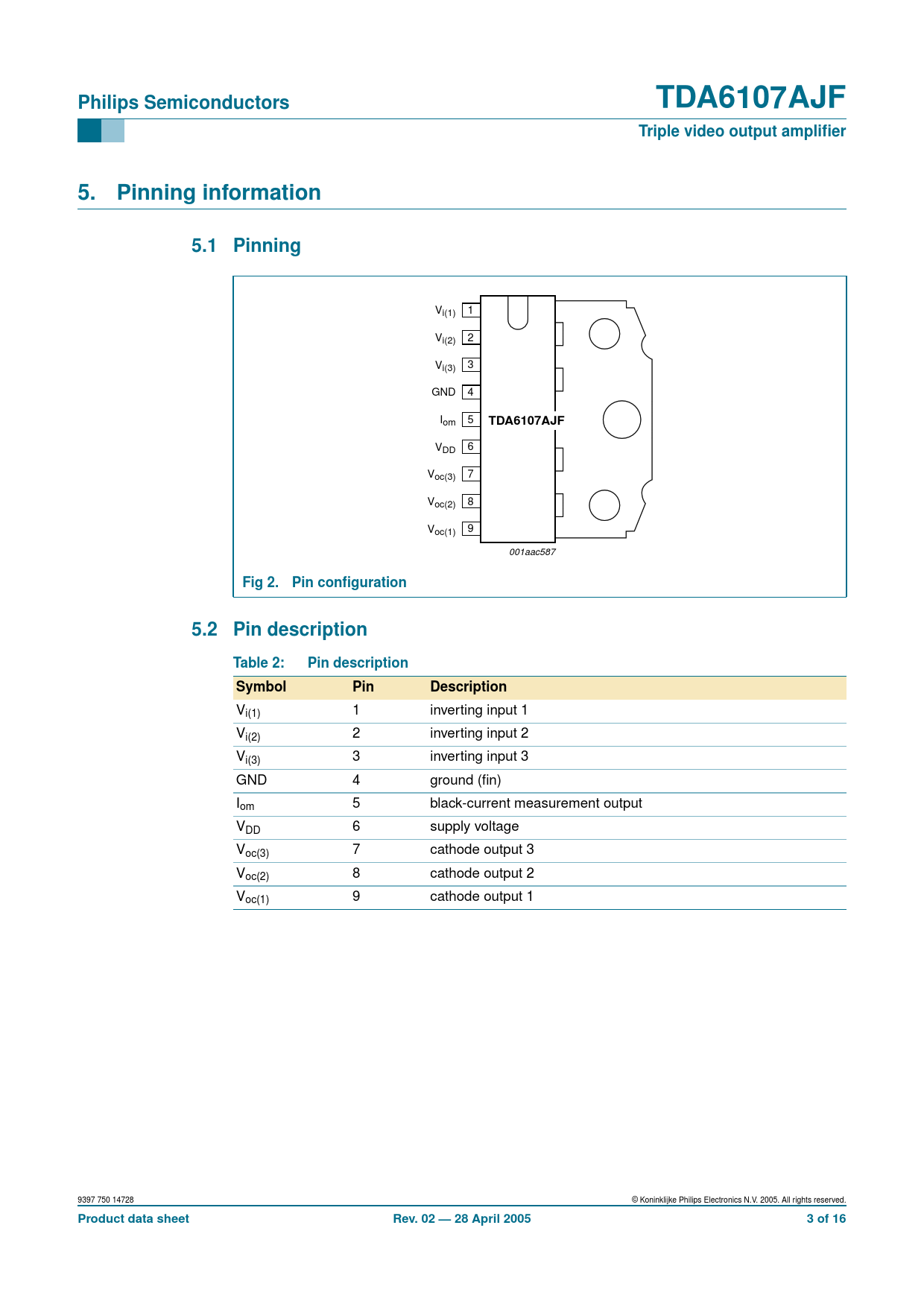

Philips Semiconductors. TDA6107AJF. Triple video output amplifier. Pinning information. 5.1 Pinning. Fig 2. Pin configuration
Model Line for this Datasheet
Text Version of Document
Philips Semiconductors TDA6107AJF Triple video output amplifier 5. Pinning information 5.1 Pinning
Vi(1) 1 Vi(2) 2 Vi(3) 3 GND 4 Iom 5
TDA6107AJF
VDD 6 Voc(3) 7 Voc(2) 8 Voc(1) 9 001aac587
Fig 2. Pin configuration 5.2 Pin description Table 2: Pin description Symbol Pin Description
Vi(1) 1 inverting input 1 Vi(2) 2 inverting input 2 Vi(3) 3 inverting input 3 GND 4 ground (fin) Iom 5 black-current measurement output VDD 6 supply voltage Voc(3) 7 cathode output 3 Voc(2) 8 cathode output 2 Voc(1) 9 cathode output 1 9397 750 14728 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet Rev. 02 — 28 April 2005 3 of 16
