Datasheet FGD4536 (ON Semiconductor) - 8
| Manufacturer | ON Semiconductor |
| Description | 360 V PDP Trench IGBT |
| Pages / Page | 9 / 8 — FGD4536. Mechanical Dimensions. — 360 V PDP Trench IGBT. Figure 19. TO252 … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |

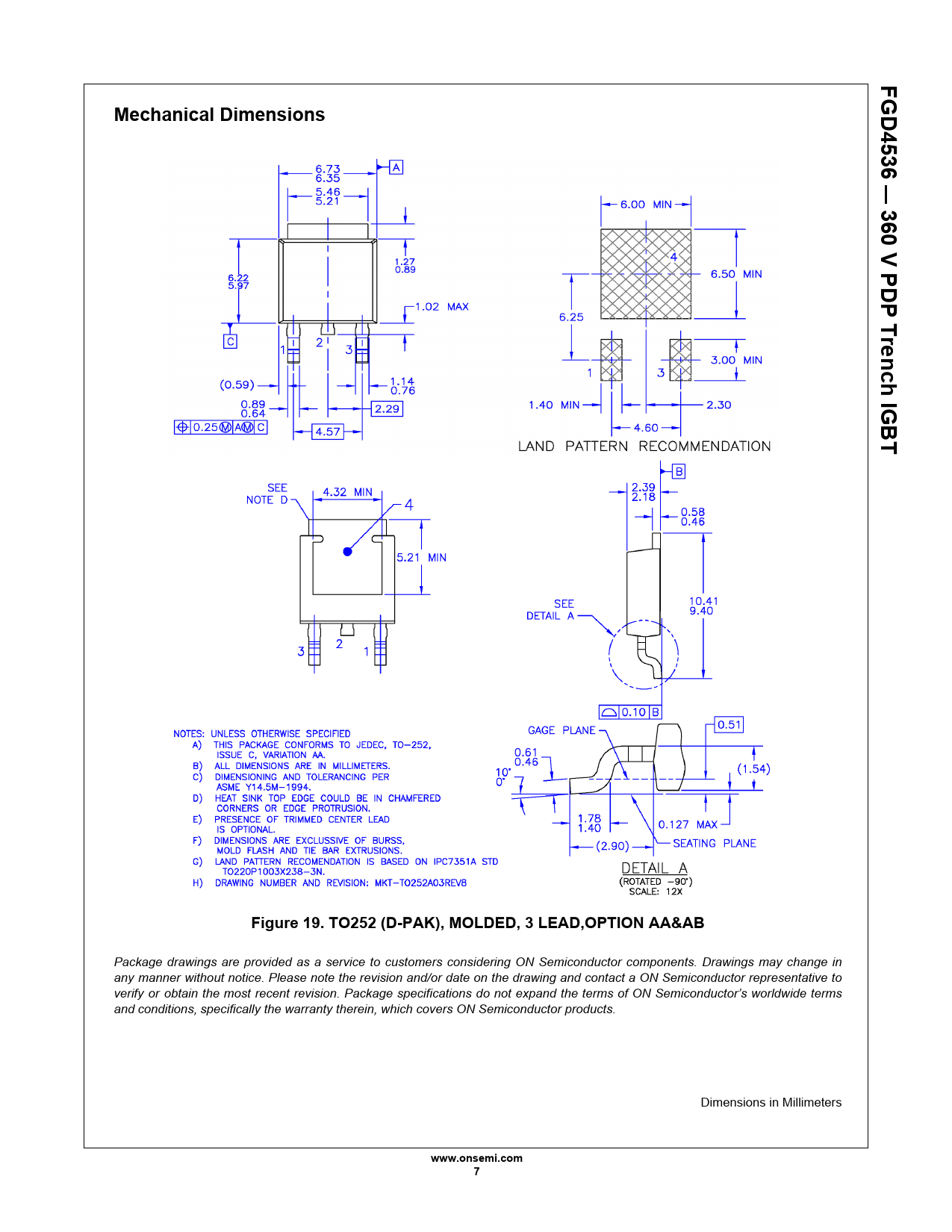

FGD4536. Mechanical Dimensions. — 360 V PDP Trench IGBT. Figure 19. TO252 (D-PAK), MOLDED, 3 LEAD,OPTION AA&AB
Model Line for this Datasheet
Text Version of Document
FGD4536 Mechanical Dimensions — 360 V PDP Trench IGBT Figure 19. TO252 (D-PAK), MOLDED, 3 LEAD,OPTION AA&AB
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor’s worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. Dimensions in Millimeters
www.onsemi.com 7
Document Outline FGD4536 360 V PDP Trench IGBT 360 V ± 30 V 220 A 125 W 50 W -55 to +150 oC -55 to +150 oC - 1.0 oC/W - 62.5 oC/W FGD4536 FGD4536TM TO252(D-PAK) 380 mm 16 mm - FGD4536 FGD4536TM_F065 TO252(D-PAK) 380 mm 16 mm - - - V - 100 mA - ±400 nA 3.3 4.0 V 1.19 - V 1295 - pF 56 - pF 43 - pF 5 - ns 20 - ns 41 - ns 182 - ns 5 - ns 21 - ns 43 - ns 249 - ns 47 - nC 5.4 - nC 15 - nC
