Datasheet N1810UL, N1810TL, N1811TL, N1812UL (Keysight Technologies) - 6
| Manufacturer | Keysight Technologies |
| Description | Coaxial Switches |
| Pages / Page | 28 / 6 — Supplemental Specifications and Characteristics. Specifications. N181x … |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |

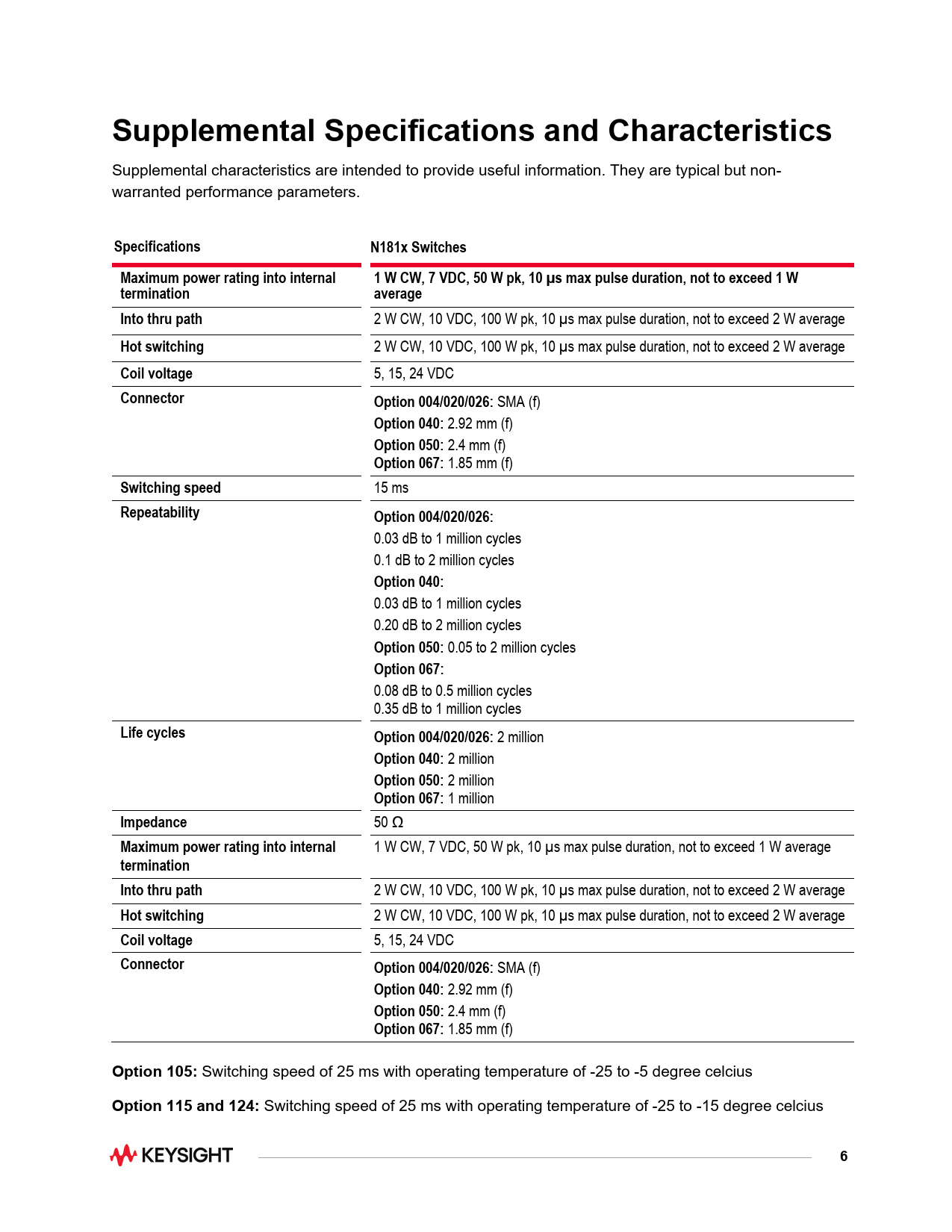

Supplemental Specifications and Characteristics. Specifications. N181x Switches. Maximum power rating into internal
Model Line for this Datasheet
Text Version of Document
Supplemental Specifications and Characteristics
Supplemental characteristics are intended to provide useful information. They are typical but non- warranted performance parameters.
Specifications N181x Switches Maximum power rating into internal 1 W CW, 7 VDC, 50 W pk, 10 µs max pulse duration, not to exceed 1 W termination average Into thru path
2 W CW, 10 VDC, 100 W pk, 10 µs max pulse duration, not to exceed 2 W average
Hot switching
2 W CW, 10 VDC, 100 W pk, 10 µs max pulse duration, not to exceed 2 W average
Coil voltage
5, 15, 24 VDC
Connector Option 004/020/026:
SMA (f)
Option 040:
2.92 mm (f)
Option 050:
2.4 mm (f)
Option 067:
1.85 mm (f)
Switching speed
15 ms
Repeatability Option 004/020/026:
0.03 dB to 1 mil ion cycles 0.1 dB to 2 mil ion cycles
Option 040:
0.03 dB to 1 mil ion cycles 0.20 dB to 2 mil ion cycles
Option 050:
0.05 to 2 mil ion cycles
Option 067:
0.08 dB to 0.5 mil ion cycles 0.35 dB to 1 mil ion cycles
Life cycles Option 004/020/026:
2 million
Option 040:
2 million
Option 050:
2 million
Option 067:
1 million
Impedance
50 Ω
Maximum power rating into internal
1 W CW, 7 VDC, 50 W pk, 10 µs max pulse duration, not to exceed 1 W average
termination Into thru path
2 W CW, 10 VDC, 100 W pk, 10 µs max pulse duration, not to exceed 2 W average
Hot switching
2 W CW, 10 VDC, 100 W pk, 10 µs max pulse duration, not to exceed 2 W average
Coil voltage
5, 15, 24 VDC
Connector Option 004/020/026:
SMA (f)
Option 040:
2.92 mm (f)
Option 050:
2.4 mm (f)
Option 067:
1.85 mm (f)
Option 105:
Switching speed of 25 ms with operating temperature of -25 to -5 degree celcius
Option 115 and 124:
Switching speed of 25 ms with operating temperature of -25 to -15 degree celcius
6
