PD333-3C/H0/L2. Typical Electro-Optical Characteristics Curves
Model Line for this Datasheet
Text Version of Document
PD333-3C/H0/L2 Typical Electro-Optical Characteristics Curves

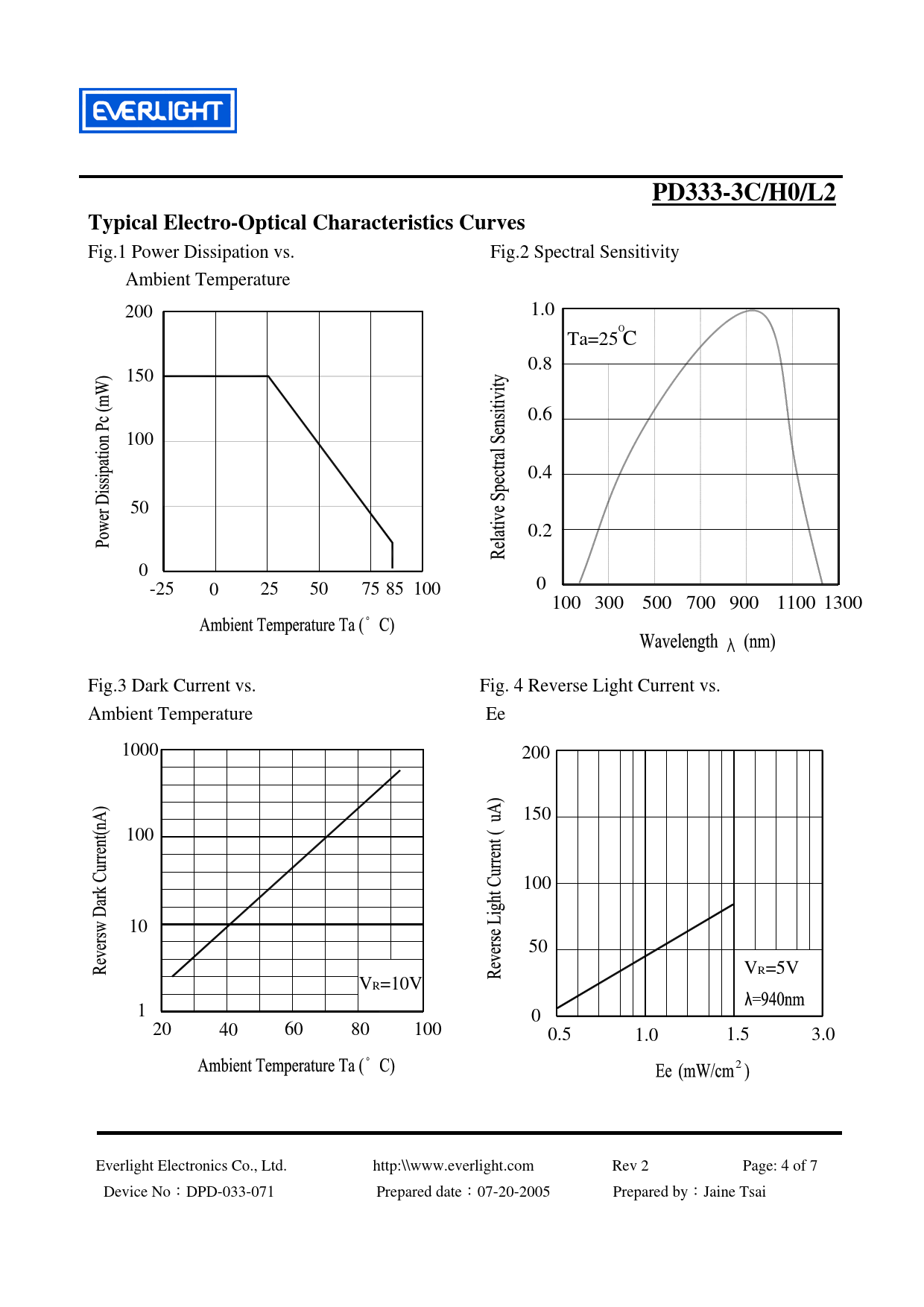

Fig.1 Power Dissipation vs. Fig.2 Spectral Sensitivity
Ambient Temperature
200
1.0 O Ta=25 C 0.8 150 0.6 100 0.4 50 0.2 0 -25 0 25 50 75 85 100 0 100 300 500 700 900 1100 1300 Fig.3 Dark Current vs. Fig. 4 Reverse Light Current vs. Ambient Temperature Ee 1000
200 150 100 100 10 50 VR=5V VR=10V 1 0 20 40 60 80 100 0.5 1.0 1.5 3.0 2
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 4 of 7 Device No：DPD-033-071 Prepared date：07-20-2005 Prepared by：Jaine Tsai
