Datasheet ZTLV431 (Diodes) - 6
| Manufacturer | Diodes |
| Description | 1.24V Cost Effective Shunt Regulator |
| Pages / Page | 8 / 6 — ZTLV431. Typical characteristics. Fig 1 - Test circuit for VZ = Vref. Fig … |
| File Format / Size | PDF / 298 Kb |
| Document Language | English |

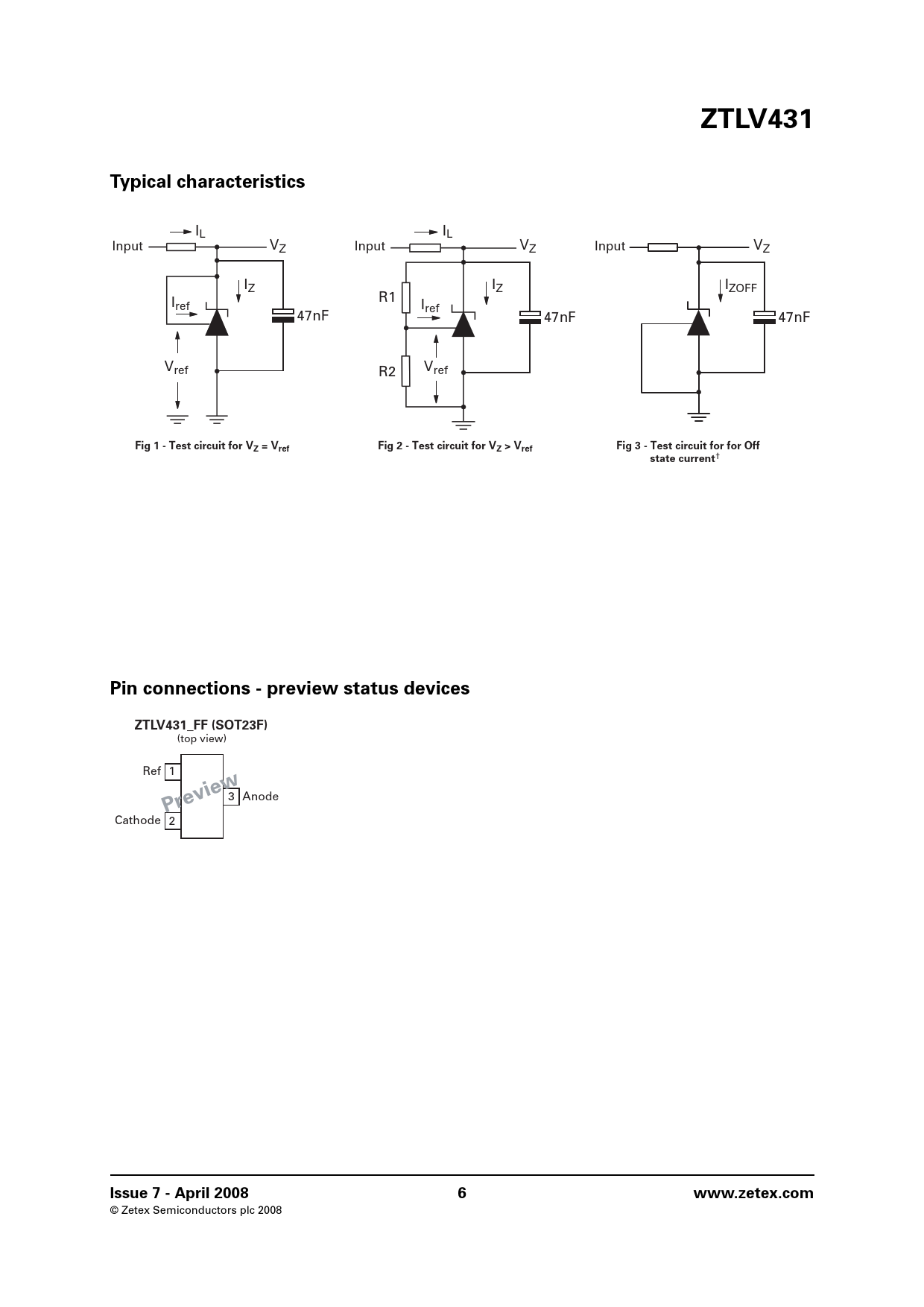

ZTLV431. Typical characteristics. Fig 1 - Test circuit for VZ = Vref. Fig 2 - Test circuit for VZ > Vref
Model Line for this Datasheet
Text Version of Document
ZTLV431 Typical characteristics
I I L L Input VZ Input VZ Input VZ IZ IZ IZOFF I R1 ref Iref 47nF 47nF 47nF V V ref ref R2
Fig 1 - Test circuit for VZ = Vref Fig 2 - Test circuit for VZ > Vref Fig 3 - Test circuit for for Off state current
†
Pin connections - preview status devices ZTLV431_FF (SOT23F)
(top view) Ref 1 3 Anode
Preview
Cathode 2
Issue 7 - April 2008 6 www.zetex.com
© Zetex Semiconductors plc 2008 Document Outline ZTLV431 1.24V Cost effective shunt regulator Description Features Applications Pin connections Ordering information Absolute maximum ratings Package thermal data Recommended operating conditions Electrical characteristics (electrical characteristics over recommended operating conditions, TA = 25°C, KKA = VREF, IKA = 10mA unless otherwise stated) Typical characteristics Pin connections - preview status devices Package outline - SOT23
I I L L Input VZ Input VZ Input VZ IZ IZ IZOFF I R1 ref Iref 47nF 47nF 47nF V V ref ref R2
Fig 1 - Test circuit for VZ = Vref Fig 2 - Test circuit for VZ > Vref Fig 3 - Test circuit for for Off state current
†
Pin connections - preview status devices ZTLV431_FF (SOT23F)
(top view) Ref 1 3 Anode
Preview
Cathode 2
Issue 7 - April 2008 6 www.zetex.com
© Zetex Semiconductors plc 2008 Document Outline ZTLV431 1.24V Cost effective shunt regulator Description Features Applications Pin connections Ordering information Absolute maximum ratings Package thermal data Recommended operating conditions Electrical characteristics (electrical characteristics over recommended operating conditions, TA = 25°C, KKA = VREF, IKA = 10mA unless otherwise stated) Typical characteristics Pin connections - preview status devices Package outline - SOT23
