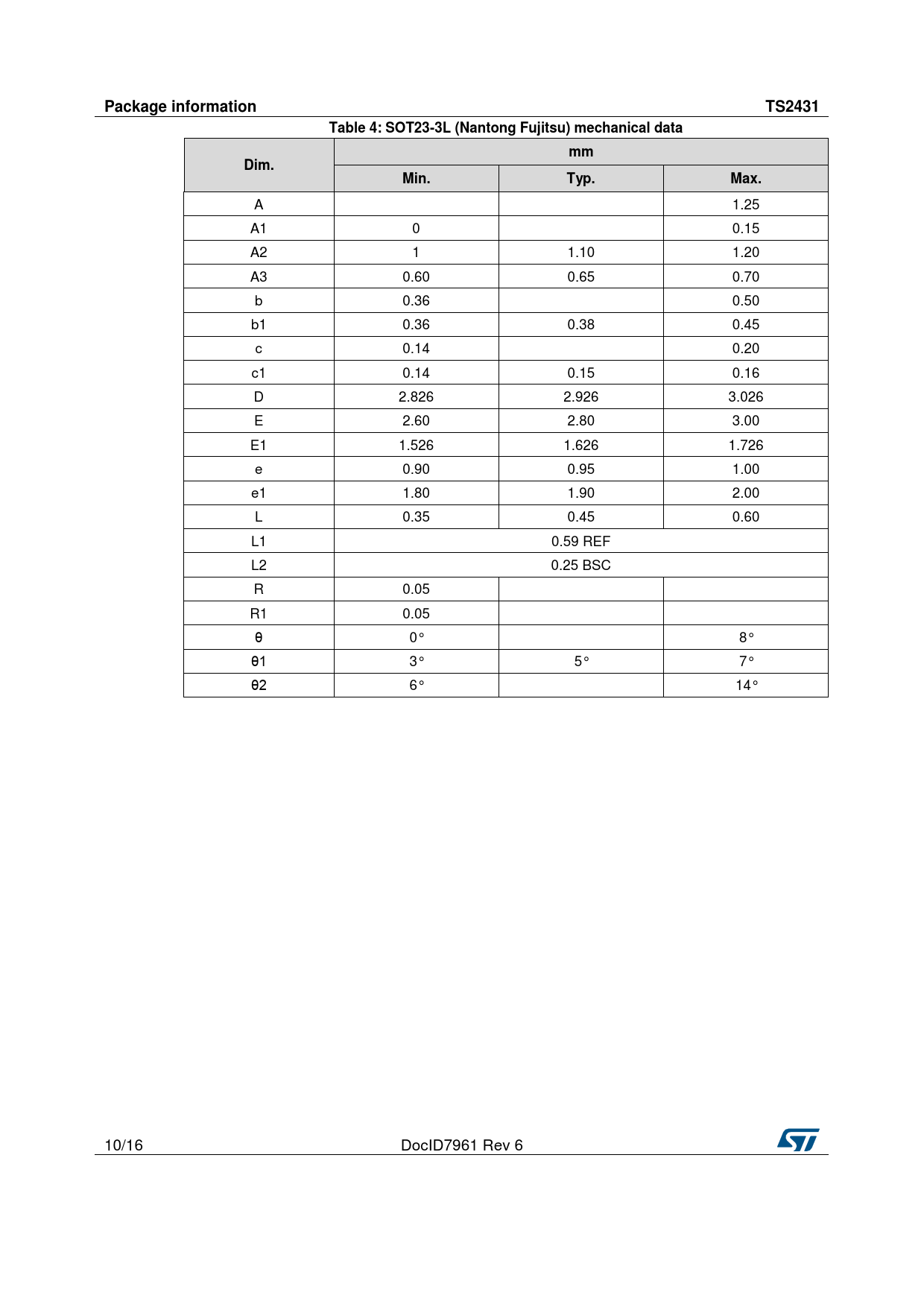

Package information. TS2431. Table 4: SOT23-3L (Nantong Fujitsu) mechanical data. Dim. Min. Typ. Max
Text Version of Document
Package information TS2431 Table 4: SOT23-3L (Nantong Fujitsu) mechanical data mm Dim. Min. Typ. Max.
A 1.25 A1 0 0.15 A2 1 1.10 1.20 A3 0.60 0.65 0.70 b 0.36 0.50 b1 0.36 0.38 0.45 c 0.14 0.20 c1 0.14 0.15 0.16 D 2.826 2.926 3.026 E 2.60 2.80 3.00 E1 1.526 1.626 1.726 e 0.90 0.95 1.00 e1 1.80 1.90 2.00 L 0.35 0.45 0.60 L1 0.59 REF L2 0.25 BSC R 0.05 R1 0.05 θ 0° 8° θ1 3° 5° 7° θ2 6° 14° 10/16 DocID7961 Rev 6
