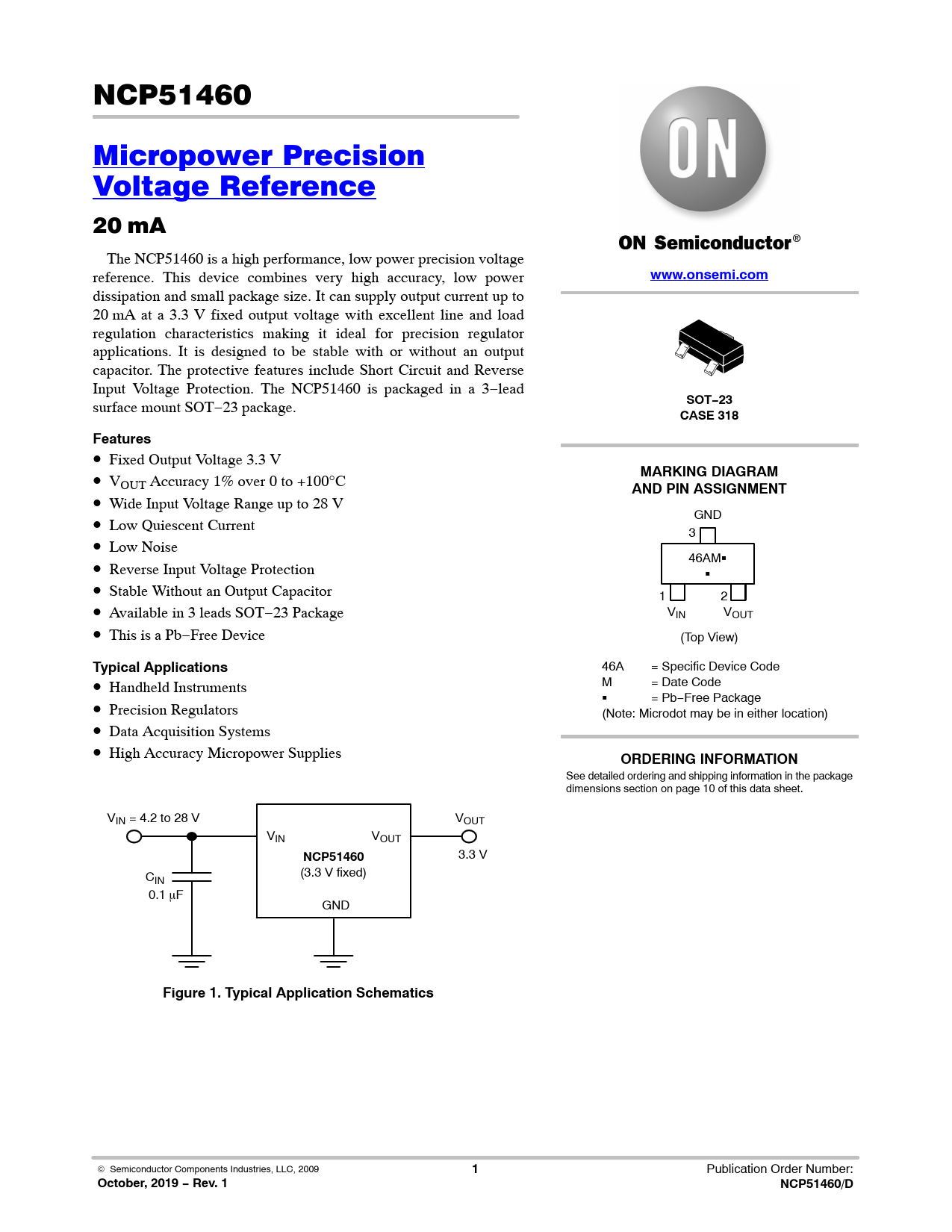

link to page 11 NCP51460 Micropower Precision Voltage Reference 20mA The NCP51460 is a high performance, low power precision voltage reference. This device combines very high accuracy, low power
www.onsemi.com
dissipation and small package size. It can supply output current up to 20 mA at a 3.3 V fixed output voltage with excellent line and load regulation characteristics making it ideal for precision regulator applications. It is designed to be stable with or without an output capacitor. The protective features include Short Circuit and Reverse Input Voltage Protection. The NCP51460 is packaged in a 3−lead surface mount SOT−23 package.
SOT−23 CASE 318 Features
• Fixed Output Voltage 3.3 V •
MARKING DIAGRAM
VOUT Accuracy 1% over 0 to +100°C
AND PIN ASSIGNMENT
• Wide Input Voltage Range up to 28 V • GND Low Quiescent Current 3 • Low Noise • 46AMG Reverse Input Voltage Protection G • Stable Without an Output Capacitor 1 2 • Available in 3 leads SOT−23 Package VIN VOUT • This is a Pb−Free Device (Top View)
Typical Applications
46A = Specific Device Code • Handheld Instruments M = Date Code • G = Pb−Free Package Precision Regulators (Note: Microdot may be in either location) • Data Acquisition Systems • High Accuracy Micropower Supplies
ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 10 of this data sheet. VIN = 4.2 to 28 V VOUT VIN VOUT
NCP51460
3.3 V (3.3 V fixed) CIN 0.1 mF GND
Figure 1. Typical Application Schematics
© Semiconductor Components Industries, LLC, 2009
1
Publication Order Number:
October, 2019 − Rev. 1 NCP51460/D
