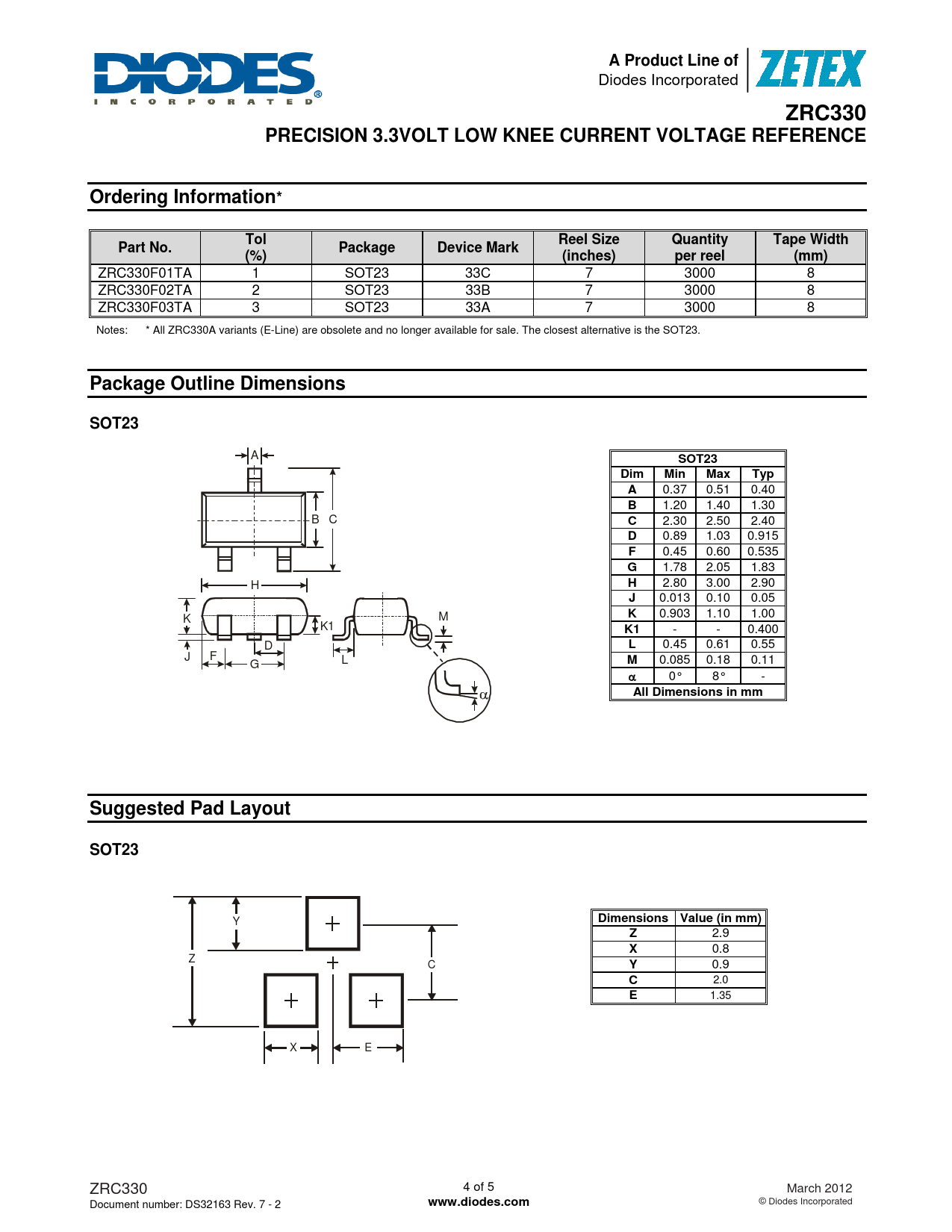

ZRC330 PRECISION 3.3VOLT LOW KNEE CURRENT VOLTAGE REFERENCE Ordering Information* Tol Reel Size Quantity Tape Width Part No. Package Device Mark (%) (inches) per reel (mm)
ZRC330F01TA 1 SOT23 33C 7 3000 8 ZRC330F02TA 2 SOT23 33B 7 3000 8 ZRC330F03TA 3 SOT23 33A 7 3000 8 Notes: * All ZRC330A variants (E-Line) are obsolete and no longer available for sale. The closest alternative is the SOT23.
Package Outline Dimensions SOT23
A
SOT23 Dim Min Max Typ A
0.37 0.51 0.40
B
1.20 1.40 1.30 B C
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83
H
2.80 3.00 2.90 H
J
0.013 0.10 0.05
K
0.903 1.10 1.00 K M K1
K1
- - 0.400 D
L
0.45 0.61 0.55 J F L
M
0.085 0.18 0.11 G α 0° 8° -
All Dimensions in mm Suggested Pad Layout SOT23 Dimensions Value (in mm)
Y
Z
2.9
X
0.8 Z C
Y
0.9
C
2.0
E
1.35 X E ZRC330 4 of 5 March 2012 Document number: DS32163 Rev. 7 - 2
