Datasheet MAX6220 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Low-Noise, Precision, +2.5V/+4.096V/+5V Voltage Reference |
| Pages / Page | 10 / 7 — Low-Noise, Precision, +2.5V/+4.096V/+5V. Voltage Reference. MAX6220. … |
| File Format / Size | PDF / 791 Kb |
| Document Language | English |

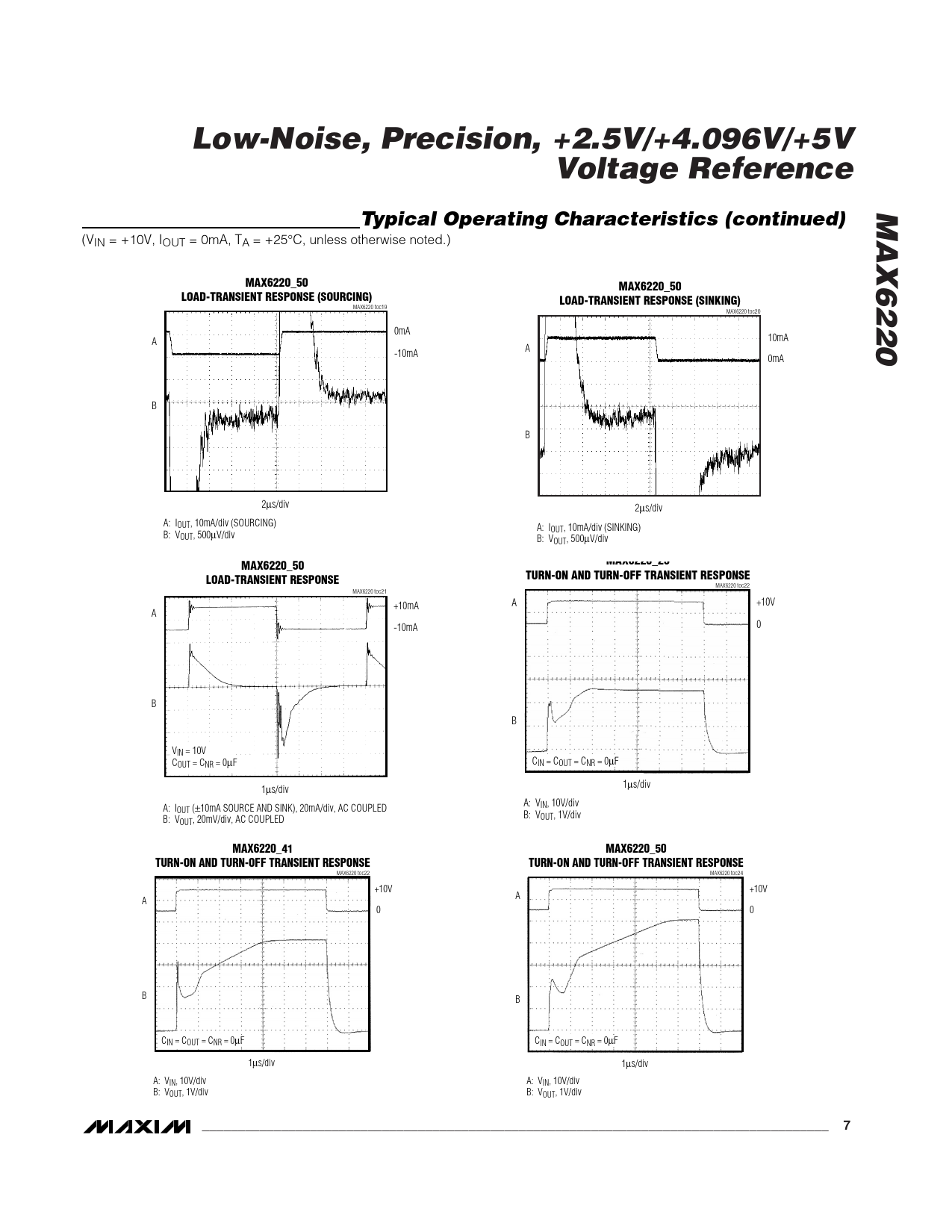

Low-Noise, Precision, +2.5V/+4.096V/+5V. Voltage Reference. MAX6220. Typical Operating Characteristics (continued). MAX6220_50
Model Line for this Datasheet
Text Version of Document
Low-Noise, Precision, +2.5V/+4.096V/+5V Voltage Reference MAX6220 Typical Operating Characteristics (continued)
(VIN = +10V, IOUT = 0mA, TA = +25°C, unless otherwise noted.)
MAX6220_50 MAX6220_50 LOAD-TRANSIENT RESPONSE (SOURCING) LOAD-TRANSIENT RESPONSE (SINKING)
MAX6220 toc19 MAX6220 toc20 0mA A 10mA A -10mA 0mA B B 2µs/div 2µs/div A: IOUT, 10mA/div (SOURCING) A: IOUT, 10mA/div (SINKING) B: VOUT, 500µV/div B: VOUT, 500µV/div
MAX6220_50 MAX6220_25 LOAD-TRANSIENT RESPONSE TURN-ON AND TURN-OFF TRANSIENT RESPONSE
MAX6220 toc22 MAX6220 toc21 +10mA A +10V A -10mA 0 B B VIN = 10V COUT = CNR = 0µF CIN = COUT = CNR = 0µF 1µs/div 1µs/div A: V A: I IN, 10V/div OUT (±10mA SOURCE AND SINK), 20mA/div, AC COUPLED B: V B: V OUT, 1V/div OUT, 20mV/div, AC COUPLED
MAX6220_41 MAX6220_50 TURN-ON AND TURN-OFF TRANSIENT RESPONSE TURN-ON AND TURN-OFF TRANSIENT RESPONSE
MAX6220 toc22 MAX6220 toc24 +10V +10V A A 0 0 B B CIN = COUT = CNR = 0µF CIN = COUT = CNR = 0µF 1µs/div 1µs/div A: VIN, 10V/div A: VIN, 10V/div B: VOUT, 1V/div B: VOUT, 1V/div
_______________________________________________________________________________________ 7
(VIN = +10V, IOUT = 0mA, TA = +25°C, unless otherwise noted.)
MAX6220_50 MAX6220_50 LOAD-TRANSIENT RESPONSE (SOURCING) LOAD-TRANSIENT RESPONSE (SINKING)
MAX6220 toc19 MAX6220 toc20 0mA A 10mA A -10mA 0mA B B 2µs/div 2µs/div A: IOUT, 10mA/div (SOURCING) A: IOUT, 10mA/div (SINKING) B: VOUT, 500µV/div B: VOUT, 500µV/div
MAX6220_50 MAX6220_25 LOAD-TRANSIENT RESPONSE TURN-ON AND TURN-OFF TRANSIENT RESPONSE
MAX6220 toc22 MAX6220 toc21 +10mA A +10V A -10mA 0 B B VIN = 10V COUT = CNR = 0µF CIN = COUT = CNR = 0µF 1µs/div 1µs/div A: V A: I IN, 10V/div OUT (±10mA SOURCE AND SINK), 20mA/div, AC COUPLED B: V B: V OUT, 1V/div OUT, 20mV/div, AC COUPLED
MAX6220_41 MAX6220_50 TURN-ON AND TURN-OFF TRANSIENT RESPONSE TURN-ON AND TURN-OFF TRANSIENT RESPONSE
MAX6220 toc22 MAX6220 toc24 +10V +10V A A 0 0 B B CIN = COUT = CNR = 0µF CIN = COUT = CNR = 0µF 1µs/div 1µs/div A: VIN, 10V/div A: VIN, 10V/div B: VOUT, 1V/div B: VOUT, 1V/div
_______________________________________________________________________________________ 7
