Datasheet AS431 (Diodes) - 4
| Manufacturer | Diodes |
| Description | 2.5 ADJUSTABLE SHUNT REGULATORS |
| Pages / Page | 20 / 4 — AS431. Functional Block Diagram. Absolute Maximum Ratings. Symbol. … |
| File Format / Size | PDF / 566 Kb |
| Document Language | English |

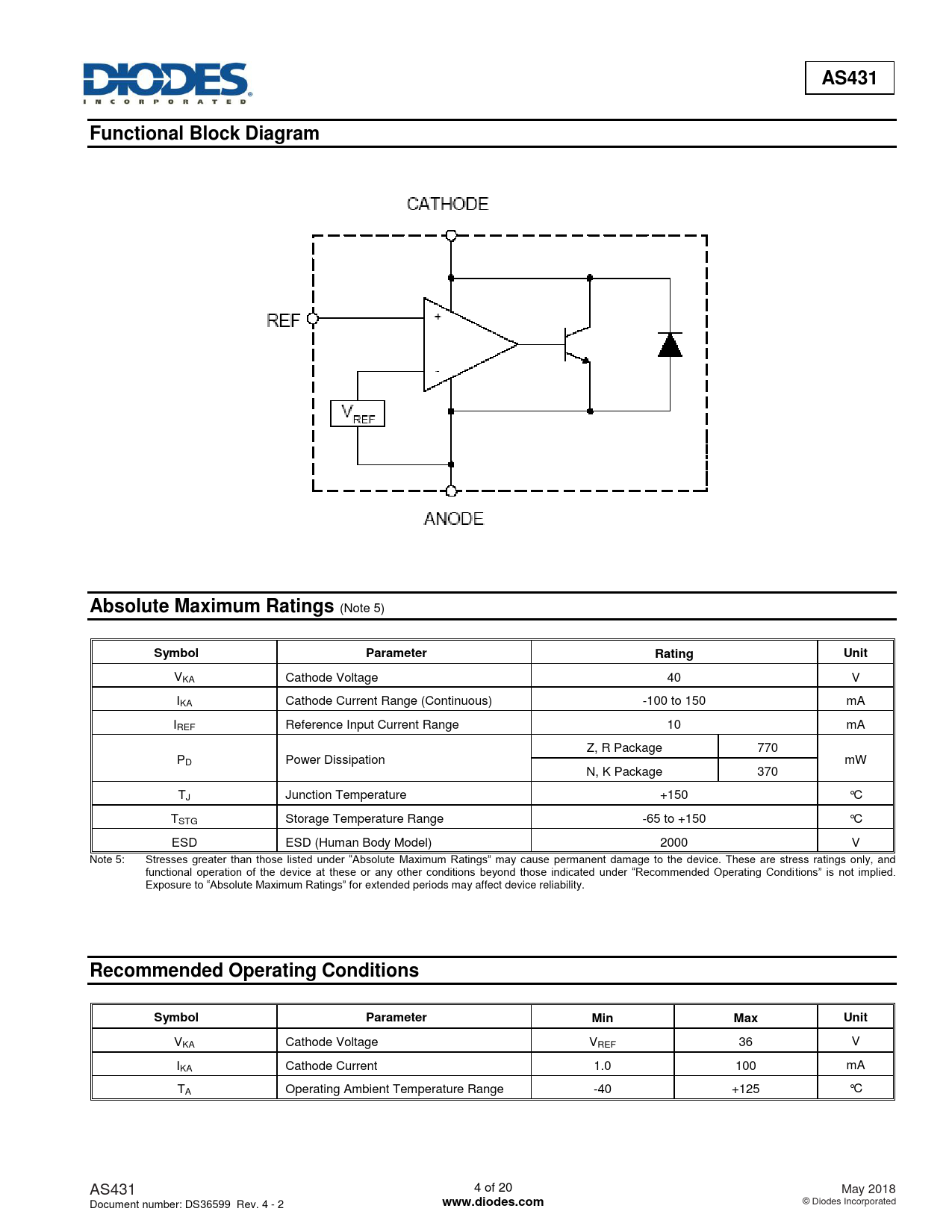

AS431. Functional Block Diagram. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. Recommended Operating Conditions. Min. Max
Model Line for this Datasheet
- AS431AKTR-G1 AS431ANTR-E1 AS431ANTR-G1 AS431ANTR-G1-C01 AS431ARTR-E1 AS431ARTR-G1 AS431AZTR-E1 AS431AZTR-G1 AS431BKTR-G1 AS431BNTR-E1 AS431BNTR-G1 AS431BRTR-E1 AS431BRTR-G1 AS431BZTR-E1 AS431BZTR-G1 AS431HANTR-G1 AS431HAZTR-G1 AS431HBNTR-G1 AS431HBZTR-G1 AS431HMANTR-G1 AS431HMBNTR-G1 AS431IANTR-G1 AS431IAZTR-G1 AS431IBNTR-G1
Text Version of Document
AS431 Functional Block Diagram Absolute Maximum Ratings
(Note 5)
Symbol Parameter Rating Unit
VKA Cathode Voltage 40 V IKA Cathode Current Range (Continuous) -100 to 150 mA IREF Reference Input Current Range 10 mA Z, R Package 770 PD Power Dissipation mW N, K Package 370 TJ Junction Temperature +150 °C TSTG Storage Temperature Range -65 to +150 °C ESD ESD (Human Body Model) 2000 V Note 5: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VKA Cathode Voltage VREF 36 V IKA Cathode Current 1.0 100 mA TA Operating Ambient Temperature Range -40 +125 °C AS431 4 of 20 May 2018 Document number: DS36599 Rev. 4 - 2
