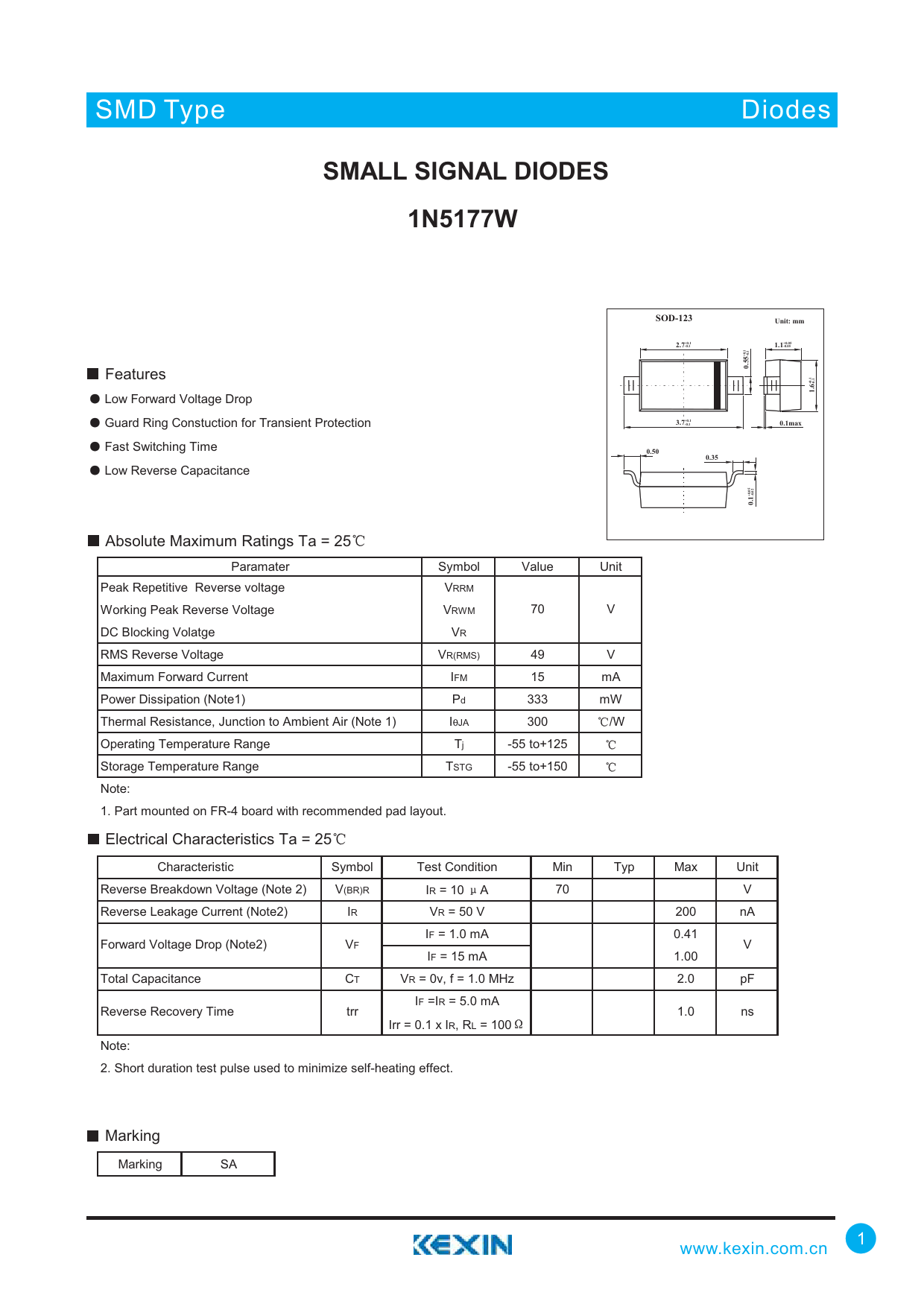

SMALL SIGNAL DIODES. 1N5177W. SOD-123. Unit: mm. 2.7+0.1. -0.1. 1.1+0.05. -0.05. +0.1 -0.1. 0.55. 1.6. 3.7+0.1. 0.1max. 0.50. 0.35. +0.05 -0.02. 0.1
Model Line for this Datasheet
Text Version of Document
SMD Type Diodes
SMALL SIGNAL DIODES 1N5177W SOD-123 Unit: mm 2.7+0.1 -0.1 1.1+0.05 -0.05 +0.1 -0.1 0.55
Features
+0.1 -0.1 1.6
Low Forward Voltage Drop Guard Ring Constuction for Transient Protection
3.7+0.1 -0.1 0.1max
Fast Switching Time
0.50 0.35
Low Reverse Capacitance
+0.05 -0.02 0.1
Absolute Maximum Ratings Ta = 25 Paramater Symbol Value Unit Peak Repetitive Reverse voltage VRRM Working Peak Reverse Voltage VRWM 70 V DC Blocking Volatge VR RMS Reverse Voltage VR(RMS) 49 V Maximum Forward Current IFM 15 mA Power Dissipation (Note1) Pd 333 mW Thermal Resistance, Junction to Ambient Air (Note 1) I JA 300 /W Operating Temperature Range Tj -55 to+125 Storage Temperature Range TSTG -55 to+150 Note: 1. Part mounted on FR-4 board with recommended pad layout. Electrical Characteristics Ta = 25 Characteristic Symbol Test Condition Min Typ Max Unit Reverse Breakdown Voltage (Note 2) V(BR)R IR = 10 A 70 V Reverse Leakage Current (Note2) IR VR = 50 V 200 nA IF = 1.0 mA 0.41 Forward Voltage Drop (Note2) VF V IF = 15 mA 1.00 Total Capacitance CT VR = 0v, f = 1.0 MHz 2.0 pF IF =IR = 5.0 mA Reverse Recovery Time trr 1.0 ns Irr = 0.1 x IR, RL = 100 Note: 2. Short duration test pulse used to minimize self-heating effect. Marking Marking SA 1 www.kexin.com.cn
