Datasheet TLV431 (Diodes) - 6
| Manufacturer | Diodes |
| Description | 1.24V Precision SHUNT REGULATOR |
| Pages / Page | 17 / 6 — TLV431. Typical Characteristics. Test Circuit for Input Noise Voltage. … |
| File Format / Size | PDF / 1.6 Mb |
| Document Language | English |

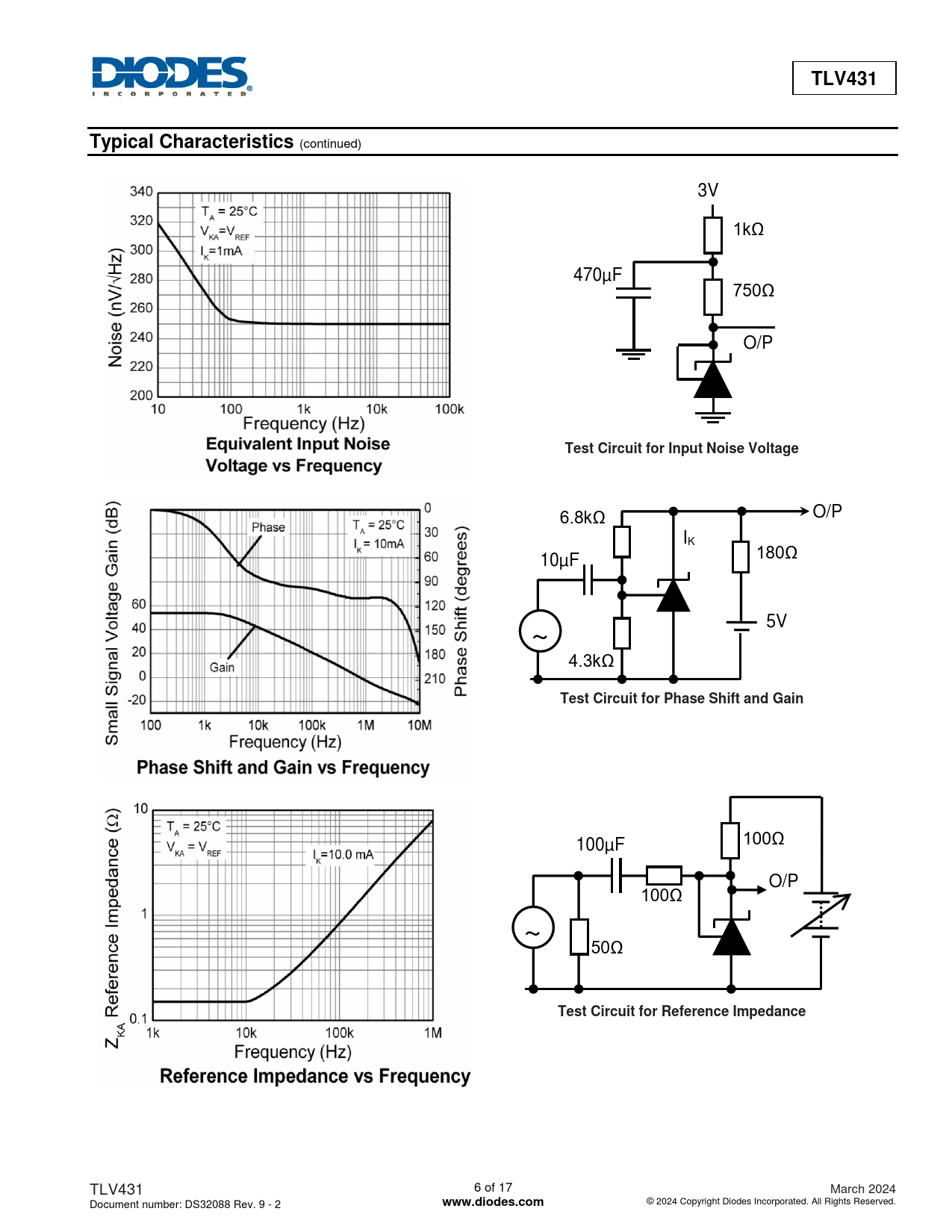

TLV431. Typical Characteristics. Test Circuit for Input Noise Voltage. Test Circuit for Phase Shift and Gain
Model Line for this Datasheet
Text Version of Document
TLV431 Typical Characteristics
(continued) 3V 1kΩ 470µF 750Ω O/P
Test Circuit for Input Noise Voltage
O/P 6.8kΩ IK 180Ω 10µF 5V ~ 4.3kΩ
Test Circuit for Phase Shift and Gain
100µF 100Ω O/P 100Ω ~ 50Ω
Test Circuit for Reference Impedance
TLV431 6 of 17 March 2024 Document number: DS32088 Rev. 9 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
(continued) 3V 1kΩ 470µF 750Ω O/P
Test Circuit for Input Noise Voltage
O/P 6.8kΩ IK 180Ω 10µF 5V ~ 4.3kΩ
Test Circuit for Phase Shift and Gain
100µF 100Ω O/P 100Ω ~ 50Ω
Test Circuit for Reference Impedance
TLV431 6 of 17 March 2024 Document number: DS32088 Rev. 9 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
