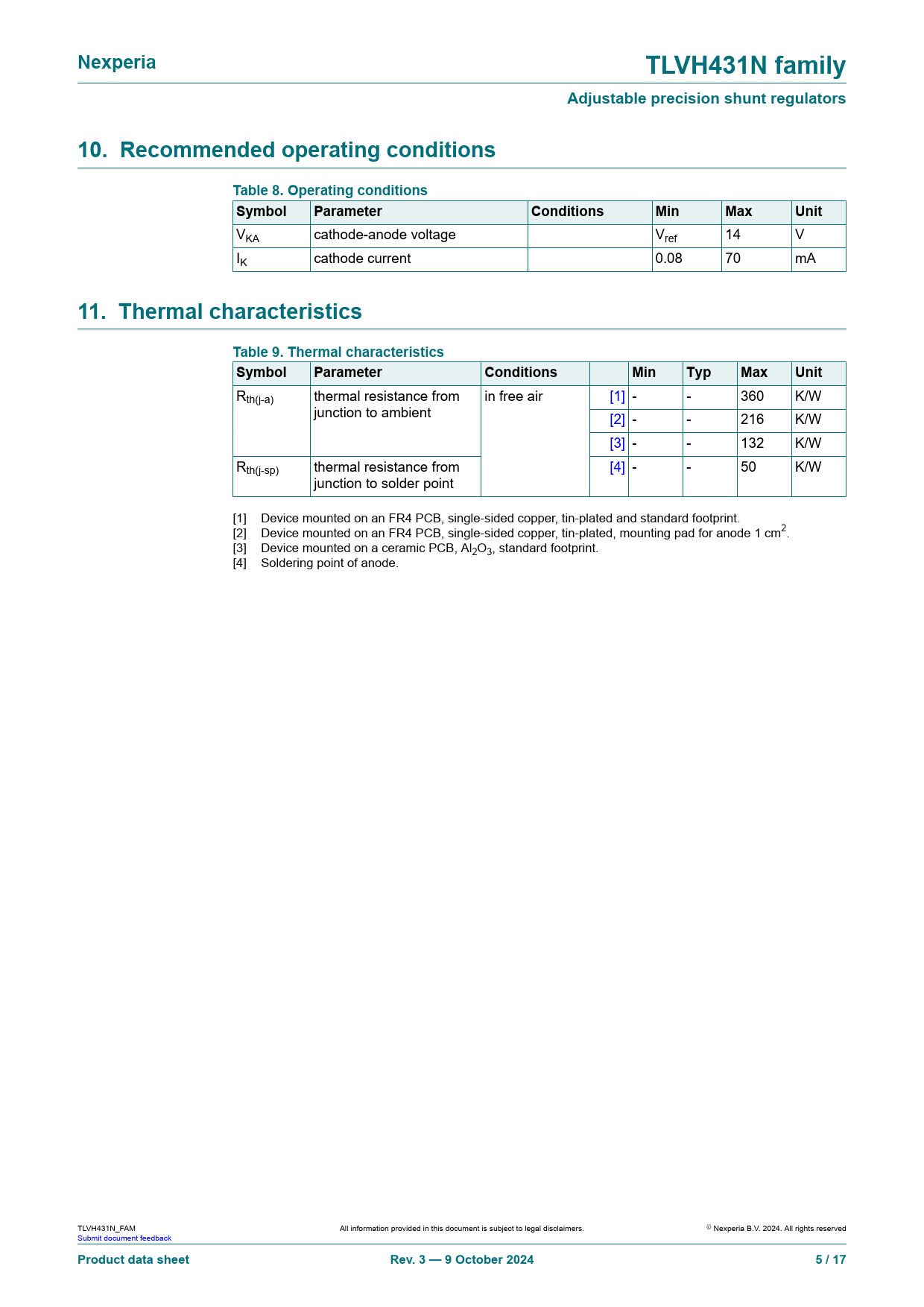

Nexperia TLVH431N family Adjustable precision shunt regulators 10. Recommended operating conditions Table 8. Operating conditions Symbol Parameter Conditions Min Max Unit
VKA cathode-anode voltage Vref 14 V IK cathode current 0.08 70 mA
11. Thermal characteristics Table 9. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from in free air [1] - - 360 K/W junction to ambient [2] - - 216 K/W [3] - - 132 K/W Rth(j-sp) thermal resistance from [4] - - 50 K/W junction to solder point [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for anode 1 cm2. [3] Device mounted on a ceramic PCB, Al2O3, standard footprint. [4] Soldering point of anode. TLVH431N_FAM All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2024. Al rights reserved Submit document feedback
