TS33. Maximum ratings. Table 1. Absolute maximum ratings. Symbol. Parameter. Value. Unit. Table 2. Thermal data. QFN8. SOT23-3L. SOT323-3L
Model Line for this Datasheet
Text Version of Document
link to page 3

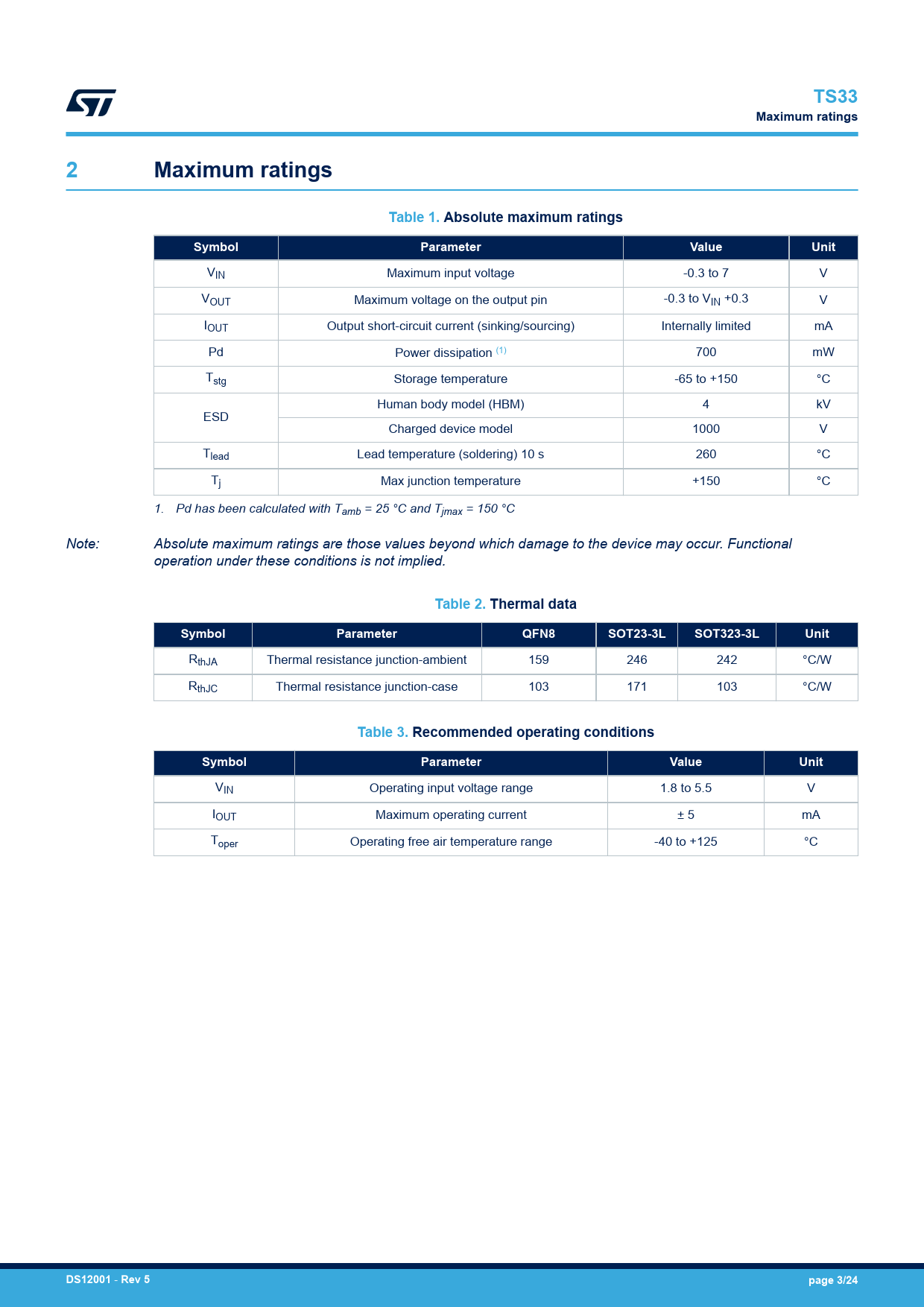

TS33 Maximum ratings 2 Maximum ratings Table 1. Absolute maximum ratings Symbol Parameter Value Unit
VIN Maximum input voltage -0.3 to 7 V VOUT Maximum voltage on the output pin -0.3 to VIN +0.3 V IOUT Output short-circuit current (sinking/sourcing) Internally limited mA Pd Power dissipation (1) 700 mW Tstg Storage temperature -65 to +150 °C Human body model (HBM) 4 kV ESD Charged device model 1000 V Tlead Lead temperature (soldering) 10 s 260 °C Tj Max junction temperature +150 °C 1. Pd has been calculated with Tamb = 25 °C and Tjmax = 150 °C Note: Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied.
Table 2. Thermal data Symbol Parameter QFN8 SOT23-3L SOT323-3L Unit
RthJA Thermal resistance junction-ambient 159 246 242 °C/W RthJC Thermal resistance junction-case 103 171 103 °C/W
Table 3. Recommended operating conditions Symbol Parameter Value Unit
VIN Operating input voltage range 1.8 to 5.5 V IOUT Maximum operating current ± 5 mA Toper Operating free air temperature range -40 to +125 °C
DS12001
-
Rev 5 page 3/24
